Introduction: Laser cutting and plasma cutting are two of the most widely used thermal cutting technologies in metal fabrication.
Both can process carbon steel, stainless steel and aluminum. Both can be integrated with CNC tables, automatic nesting, material handling and production software. And both can achieve high productivity when the equipment is matched correctly to the application.
However, they do not solve exactly the same manufacturing problems.
A fiber laser cutting machine is often selected when manufacturers require:
Plasma cutting is often considered when manufacturers prioritize:
The correct choice depends on much more than material thickness.
This guide compares laser and plasma cutting in terms of process principle, materials, thickness, speed, precision, edge quality, holes, bevels, operating cost, maintenance and total cost per finished part.
Before examining each factor in detail, the following table provides a practical starting point.
| Factor | Fiber Laser Cutting | Plasma Cutting |
| Cutting method | Focused laser beam | Electrically generated plasma arc |
| Materials | Wide range of metals; other laser types can also process non-metals | Electrically conductive materials |
| Thin sheet | Strong advantage | Suitable, but often less attractive for fine work |
| Thick plate | Capability depends heavily on laser power | Strong application area |
| Fine contours | Excellent | Good, but wider cutting process |
| Small holes | Strong capability with correct process | Modern high-definition plasma can produce good holes |
| Kerf | Generally narrower | Generally wider |
| Dimensional precision | Generally higher | Good for many fabrication requirements |
| Bevel cutting | Available with suitable systems | Established capability |
| Surface condition | Requires controlled process conditions | Often relatively tolerant of imperfect plate |
| Initial investment | Usually higher | Usually lower |
| Automation | Highly developed | Highly developed |
| Best use | Precision sheet-metal production | Heavy plate fabrication |
This table should not be treated as an absolute rule.
Machine power, plasma system class, material, thickness, gas, motion platform and required quality can significantly change the result.

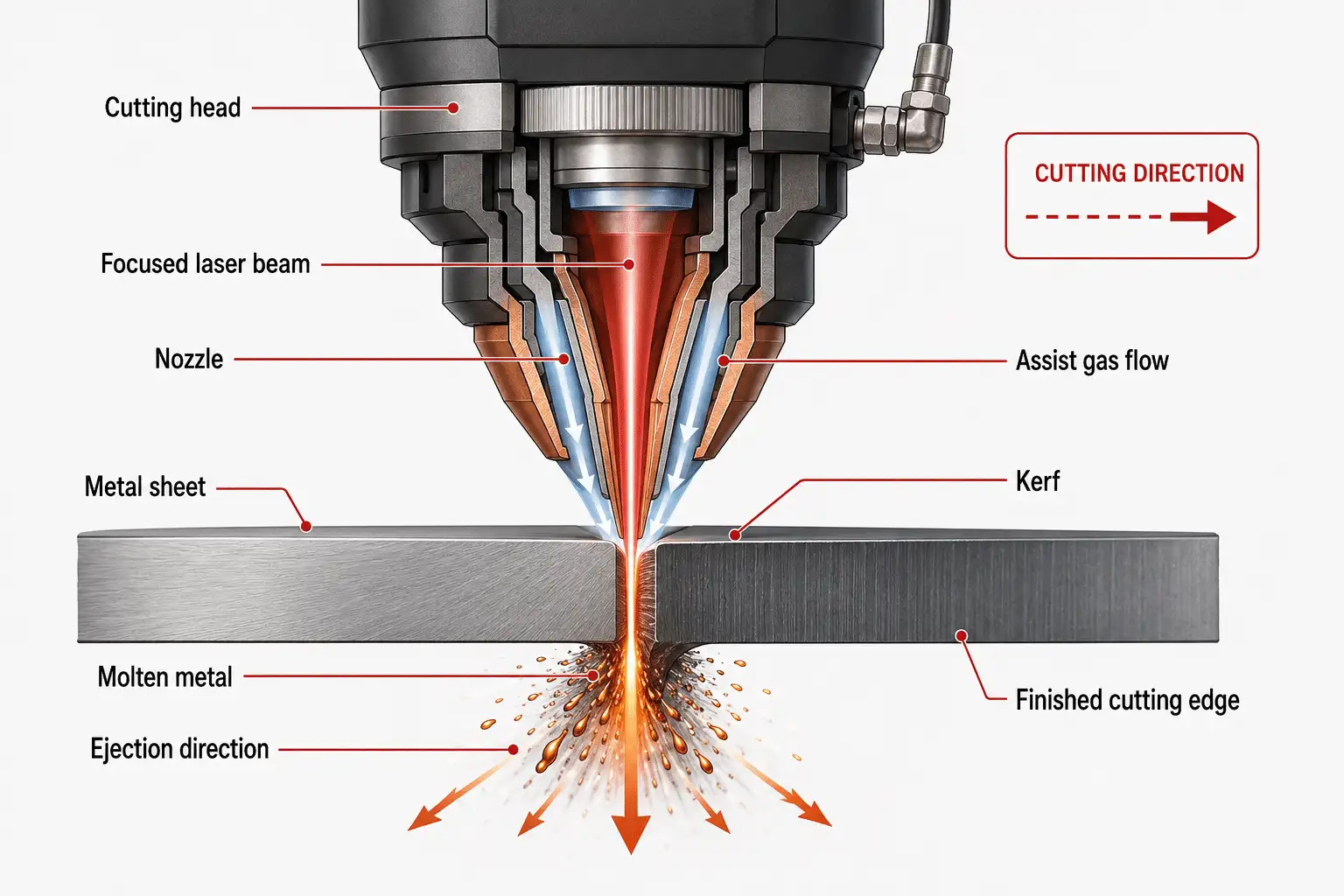

Laser cutting uses a focused beam of light to concentrate energy on a small area of the workpiece.
The material is heated until it:
An assist gas such as oxygen, nitrogen or compressed air then helps remove molten material from the cutting kerf.
The machine coordinates:
Because the focused beam can be very narrow, laser cutting can produce detailed contours and small features.
Industrial fiber lasers are particularly common for sheet-metal cutting because the process can be integrated with:
Plasma cutting uses an electrically conductive plasma arc rather than a focused beam of light.
Gas is forced through a narrow torch nozzle while electrical energy ionizes the gas and forms a high-energy plasma arc.
The arc transfers energy into the workpiece, melting the metal. The high-velocity gas stream then removes the molten material from the cut.
A mechanized plasma system usually includes:
Because the electrical arc must transfer through the workpiece, plasma cutting is used on electrically conductive materials.
Typical materials include:
For conventional metal fabrication, both processes cover many of the same materials.
Carbon Steel
Both laser and plasma can process carbon steel efficiently.
The better process depends on:
Stainless Steel
Both processes are available.
Fiber laser is frequently selected when manufacturers require:
Plasma can remain attractive for thicker stainless components where very fine geometry is not the primary requirement.
Aluminum
Both technologies can process aluminum with appropriate systems.
The decision should consider:
Copper and Brass
Compatible modern fiber-laser systems can process reflective metals such as copper and brass.
Plasma can also process electrically conductive non-ferrous metals, although part quality and economics should be tested for the specific application.
Non-Metal Materials
This is an important difference.
Plasma requires an electrically conductive workpiece.
Laser technology, depending on wavelength and system design, can also process materials such as:
A standard industrial fiber laser designed for sheet metal should not be confused with a CO₂ or ultrafast laser used for these non-metal applications.
For thin precision sheet-metal applications, fiber laser is generally the stronger starting point.
Typical examples include:
Fiber laser offers a small focused spot and narrow kerf, which supports:
Thin sheets also reduce the amount of material that the laser must penetrate, allowing modern fiber systems to achieve very high productivity.
For these applications, the machine’s acceleration, piercing time, nesting and loading system may become as important as nominal laser power.

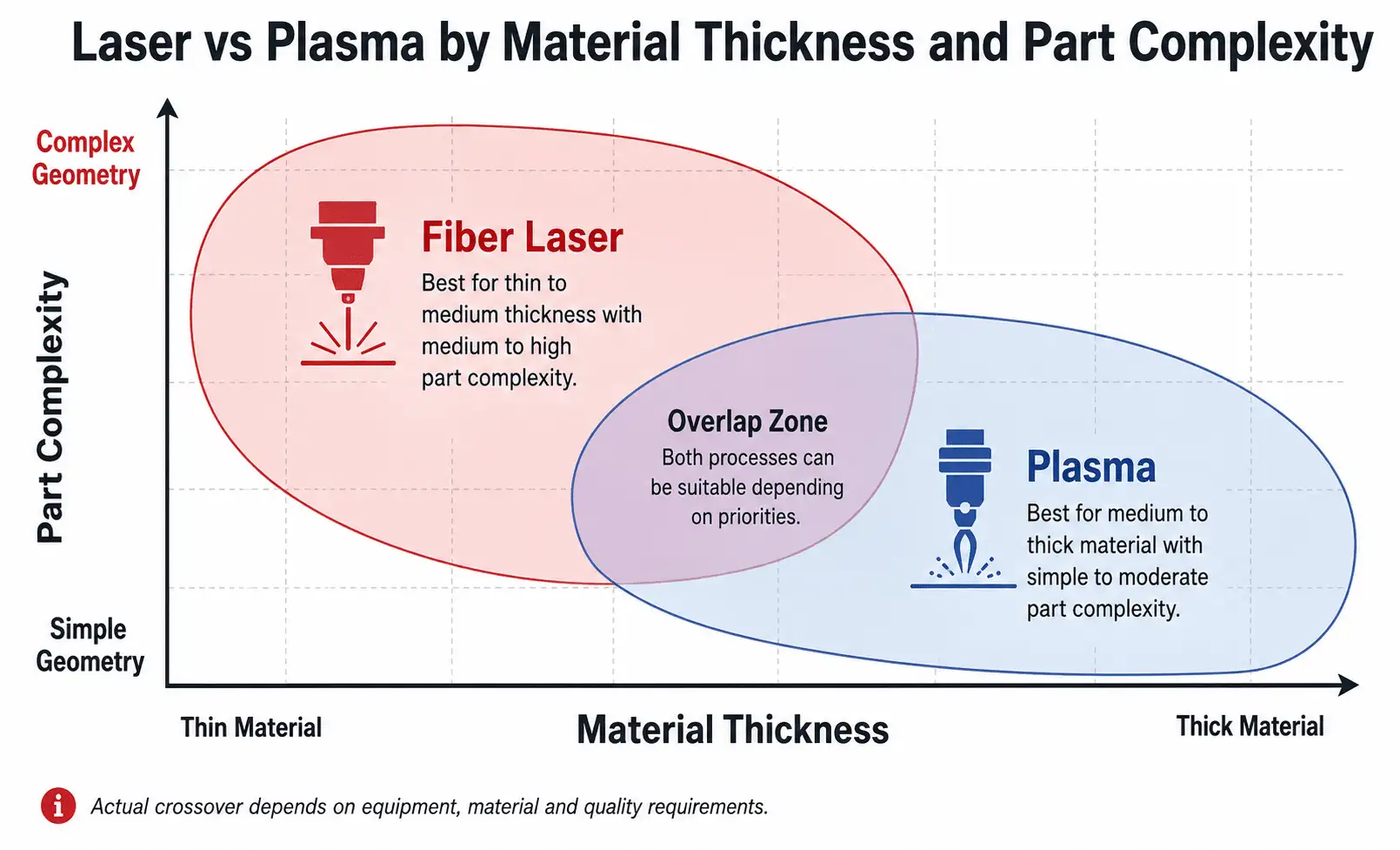

This is where the comparison becomes more application-dependent.
Modern high-power fiber lasers continue to expand into thicker plate, but plasma remains highly competitive in heavy fabrication.
Hypertherm uses approximately 16 mm / 5⁄8 in as a practical crossover region in its comparison, noting that plasma often provides advantages above this range in cutting speed and economics.
This should be treated as a rule of thumb rather than a universal boundary.
The crossover point depends on:
For example, a manufacturer cutting 20 mm plate with hundreds of small precision features may make a different decision from a structural fabricator cutting large simple contours from the same thickness.
Heavy Fabrication Applications
Plasma may deserve serious consideration for:
Precision Thick-Plate Production
Laser may still be selected when the production value comes from:
Do not choose solely from a thickness chart.
There is no single answer.
Cutting speed changes significantly with material thickness.
Thin Sheet
Fiber laser can achieve extremely high linear cutting speeds on suitable thin materials.
However, real productivity must include:
Thick Plate
Modern plasma systems can be extremely productive in thicker material.
A plasma system may become faster than fiber laser once plate thickness enters the range where the laser requires significantly more energy and slower piercing or cutting strategies.
Do Not Compare Only Straight-Line Speed
A manufacturer’s specification may list:
Maximum cutting speed: XX m/min
That does not tell you how many finished parts the system produces per shift.
Compare:
Complete Cycle Time = Loading + Piercing + Cutting + Repositioning + Unloading
For high-mix sheet-metal production, automation can change the result dramatically.
Laser generally offers the stronger precision capability because the focused beam and kerf are relatively small.
This is especially useful for:
TRUMPF’s technology comparison describes laser cutting as having a very fine cutting beam capable of detailed contours, while plasma uses a broader cutting process.
However, modern high-definition plasma is substantially more capable than older plasma systems.
For many heavy fabrication applications, plasma accuracy can fully satisfy the drawing requirements.
Do You Actually Need Laser-Level Precision?
This is an important purchasing question.
If a part specification allows a relatively generous tolerance and will later be:
paying for higher cutting precision may not create additional value.
The correct tolerance is:
The tolerance required by the finished product
—not the smallest tolerance a machine can theoretically achieve.
The kerf is the width of material removed during cutting.
Laser generally produces a narrower kerf than plasma.
A narrower kerf can help when:
However, kerf alone does not determine material yield.
Actual utilization also depends on:
For large heavy-plate parts with simple shapes, the economic value of a very narrow kerf may be relatively small.
Small-hole capability is an important reason many manufacturers choose laser.
Laser can be particularly effective for:
Modern high-definition plasma systems have greatly improved hole quality and can produce good bolt-ready holes in suitable thicknesses and hole sizes.
However, very small diameter-to-thickness ratios remain more demanding for plasma.
Evaluate the Actual Drawing
If your parts contain:
send the real CAD file to both suppliers.
Do not compare only a large outside contour.
Plasma has long been used for bevel preparation in heavy fabrication.
Typical bevel applications include:
Modern bevel plasma heads are particularly relevant when components will proceed directly to heavy welding.
Laser bevel cutting is also available with suitable multi-axis or bevel cutting heads.
Laser may provide advantages where bevel geometry must be combined with:
The Key Question
Do not ask only:
Can the machine bevel?
Ask:
This depends strongly on thickness and equipment class.

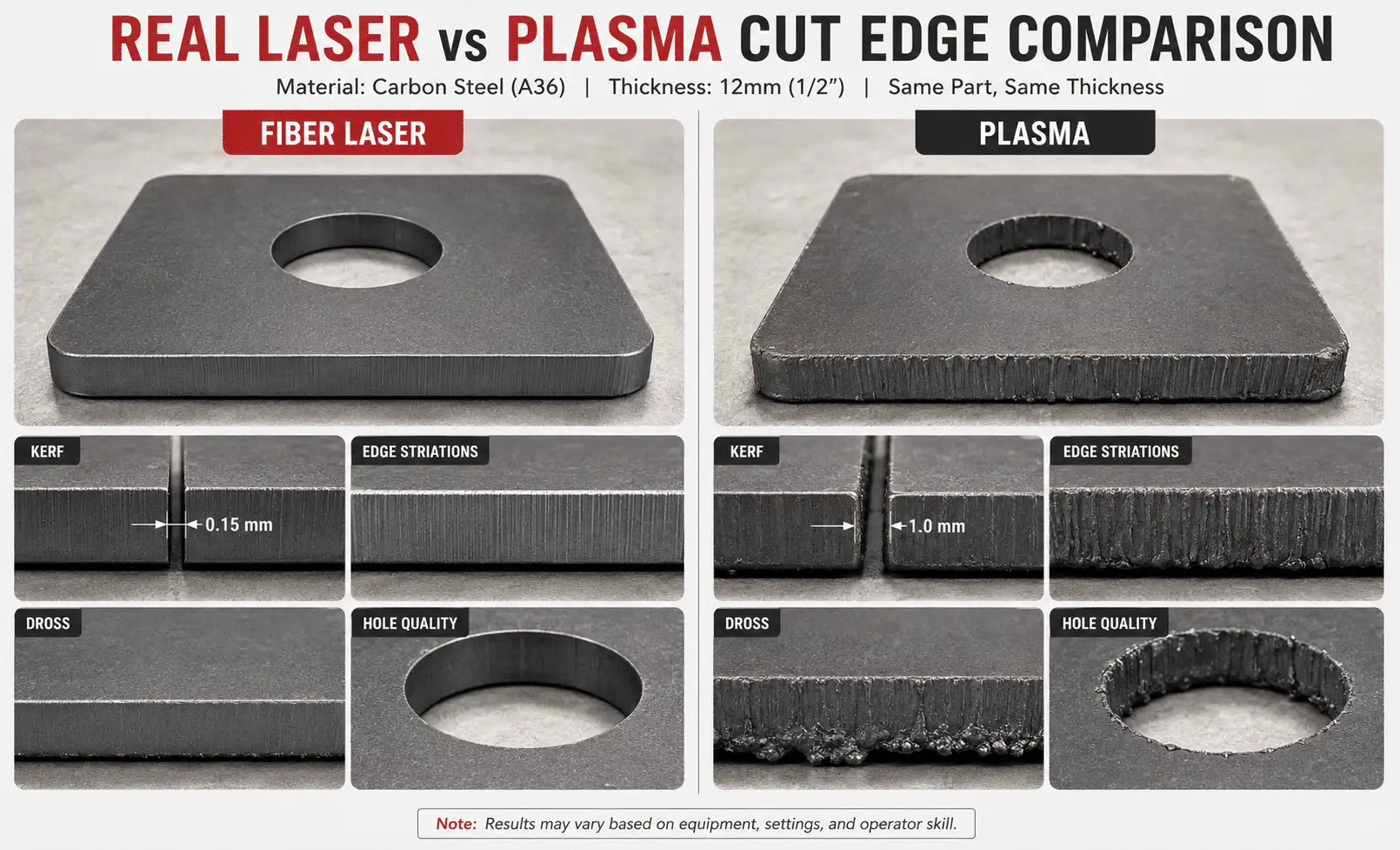

Laser Edge Quality
Laser cutting can provide:
But poor parameters can still create:
Plasma Edge Quality
Modern high-definition plasma can produce high-quality edges that are dramatically better than conventional older plasma cutting.
For thick plate, some high-definition plasma processes can produce very smooth cut surfaces.
Therefore, a blanket statement such as:
“Laser always produces a better edge.”
is not technically reliable.
The correct comparison requires:
Both processes are thermal cutting methods.
Both can create:
The degree depends on:
Because laser concentrates energy into a relatively small cutting area, it can provide a relatively narrow heat-affected region in many precision-sheet applications.
Plasma uses a broader high-energy arc, and heat management may become more important for:
However, heat distortion should be evaluated on the actual part rather than assumed from the cutting technology alone.
Real production material is not always perfectly clean.
Plate may contain:
Plasma is generally regarded as relatively forgiving when processing imperfect conductive metal surfaces.
Laser cutting may require more controlled surface and parameter conditions, particularly when:
This does not mean laser requires perfectly polished material.
It means the supplier should test the material condition actually used in your factory.
Plasma generally has a lower equipment-entry cost than a comparable industrial fiber-laser cutting system.
A mechanized plasma installation may require:
A fiber-laser system may include:
Automation can increase the investment in either process.
Why Initial Price Is Not Enough
A lower machine price does not automatically mean lower production cost.
Evaluate:
A more expensive machine can be justified if the production economics support it.
Likewise, buying a high-power fiber laser for work that plasma can complete economically may create unnecessary capital cost.
How to evaluate the total cost of an industrial laser cutting machine
Operating cost should be calculated per acceptable part rather than per machine hour alone.
Fiber Laser Costs May Include
Plasma Costs May Include
Secondary Processing Cost
This is frequently forgotten.
If one process requires more:
those costs belong in the cutting comparison.
The better metric is:
Cost per Acceptable Finished Part
not:
Cost per Cutting Hour
The two systems have different maintenance profiles.
Laser
Important items include:
Modern fiber-laser sources have relatively few moving optical components, but cutting-head contamination or damage can still be expensive.
Plasma
The plasma arc operates through replaceable torch consumables.
Common consumables include:
Consumable life depends on:
A professional comparison should use real consumable-life data from the expected application.
Both processes can be automated.
Fiber Laser Automation
Possible systems include:
Laser is particularly well suited to high-mix digital sheet-metal production because CAD files can be nested and scheduled without changing physical tooling.
Plasma Automation
Mechanized plasma can integrate:
For very large or thick plates, plasma tables can also offer large working areas without requiring the same fully enclosed machine architecture as many high-power laser systems.
Do not compare machines only by the cutting table dimensions.
Laser Installation May Require
Plasma Installation May Require
For very large heavy plate, factory crane capacity and material logistics may dominate the layout decision.
Both technologies require professional industrial safety systems.
Laser Safety
Risks may include:
Industrial high-power laser machines commonly use protective enclosures, interlocks and controlled observation windows.
Plasma Safety
Risks may include:
Mechanized systems commonly use downdraft extraction or water tables to manage cutting fumes.
Neither process should be selected without considering the factory’s ventilation and safety requirements.
Sheet Metal Fabrication
Usually evaluate laser first when:
Heavy Machinery
Plasma deserves strong consideration when:
Laser may still be appropriate when finer features or higher precision justify it.
Structural Steel
Depending on the workpiece, manufacturers may use:
The correct system depends on whether the raw material is plate, H-beam, I-beam or profile.
Shipbuilding
Plasma has traditionally been strong for:
High-power laser technology continues to expand into heavy plate applications, but economics and working-area requirements must be evaluated carefully.
Stainless Fabrication
Laser is attractive for:
Agricultural and Construction Equipment
Factories often have a broad thickness range.
The correct solution may be:
A high-volume manufacturer may operate laser for thin precision components and plasma for large thick components.
For some factories, this is the correct answer.
Instead of forcing every part through one technology, production can be divided according to manufacturing requirements.
Example Production Strategy
Fiber Laser
Plasma
The numbers above are only an example workflow—not universal thickness limits.
The real crossover should be calculated using the factory’s own:

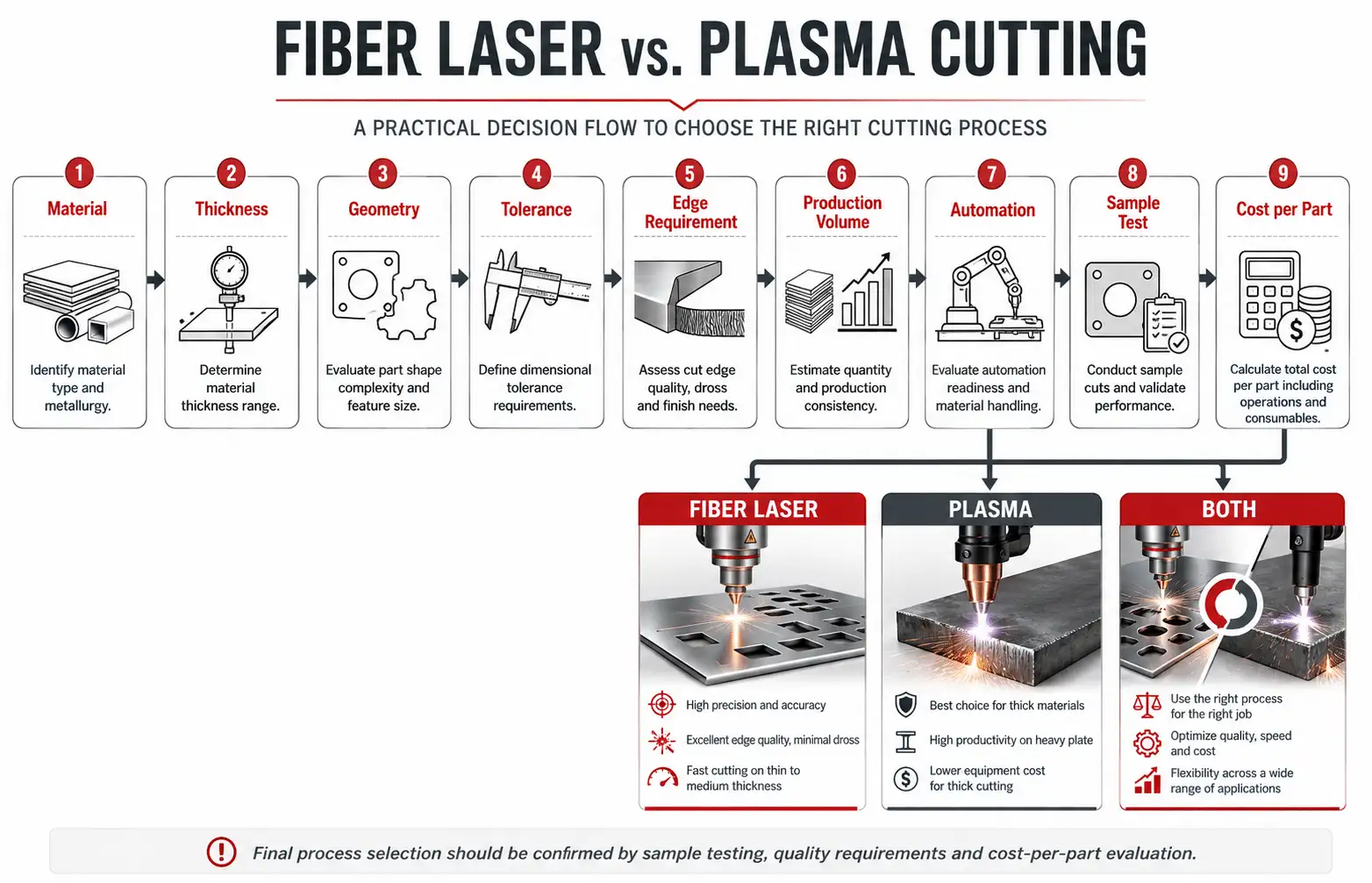

Use the following sequence.
Step 1 — List Your Materials
Record:
Step 2 — Build a Thickness Distribution
Do not provide only your maximum thickness.
For example:
| Thickness Range | Share of Production |
| Thin | 50% |
| Medium | 35% |
| Thick | 15% |
The process should be optimized for the majority of production.
Step 3 — Review Part Geometry
Identify:
Step 4 — Define Tolerance
Ask:
What does the drawing actually require?
Do not pay for unnecessary precision.
Step 5 — Define Edge Requirements
Consider:
Step 6 — Define Production Volume
Calculate:
Step 7 — Evaluate Automation
Determine whether you need:
Step 8 — Compare Total Cost
Include:
Step 9 — Conduct Real Sample Testing
Provide both suppliers with:
Then compare actual results.
Do not judge samples only by appearance.
Record:
Quality
Productivity
Operating Cost
Stability
Cut multiple identical parts.
Compare:
A single perfect demonstration sample is not a production validation.
| Production Requirement | Strong Starting Direction |
| Thin precision sheet | Fiber laser |
| Fine contours | Fiber laser |
| Many small holes | Fiber laser |
| High-mix sheet production | Fiber laser |
| Narrow kerf required | Fiber laser |
| Automated sheet factory | Fiber laser |
| Thick heavy plate | Evaluate plasma strongly |
| Large simple profiles | Plasma may be more economical |
| Extensive bevel welding preparation | Plasma is a strong candidate |
| Rough or imperfect plate | Plasma deserves evaluation |
| Mixed thin and thick production | Compare both or use both |
| Highest flexibility across very different parts | Evaluate complete factory mix |
This is a decision guide rather than a fixed technical specification table.
A fiber laser is usually worth serious consideration when most of the following are true:
How to choose a fiber laser cutting machine
Plasma should be evaluated seriously when:
Modern high-definition plasma should not be evaluated using expectations based on older conventional plasma systems.
Its capability in holes, edge quality and beveling has improved significantly.
Consider two hypothetical factories.
Factory A
Produces:
A lower-cost plasma table might not produce the lowest finished-part cost if it creates additional finishing and cannot match required feature detail.
Factory B
Produces:
A high-power laser might be technically capable but financially unnecessary if plasma already meets every requirement at a lower total cost.
Technology should follow the part—not marketing.
Ask the supplier:
30. Final Selection Checklist
Before deciding between a laser cutting machine and plasma cutting system, confirm:
Conclusion
Laser cutting and plasma cutting are both highly capable industrial metal-cutting processes.
Fiber laser is particularly strong when manufacturers need:
Plasma remains highly competitive when manufacturers need:
The crossover is not defined by one thickness number.
It depends on the complete production requirement.
A manufacturer cutting precision stainless enclosures has very different priorities from a company producing heavy welded machinery frames.
The safest approach is to compare both processes using your actual drawing, material, thickness, tolerance and production volume.
Then calculate:
Cost per acceptable finished part.
That is more useful than asking whether laser or plasma is universally “better.”
Discuss Your Metal Cutting Project With ZG Laser
If fiber laser appears suitable for your application, ZG Laser can evaluate your:
Our application team can recommend an appropriate laser power, working area and machine configuration based on your actual production needs.
Send Your Drawing for Evaluation
Explore Fiber Laser Cutting Machines
View High-Power Fiber Laser Cutting Machine
Q1: Is laser cutting better than plasma cutting?
Not in every application. Fiber laser is generally stronger for fine features, narrow kerf and precision sheet-metal production, while plasma can be highly competitive for thick plate, bevel cutting and heavy fabrication.
Q2: Is plasma cheaper than laser cutting?
Plasma equipment generally has a lower initial investment, but the correct comparison should include productivity, consumables, labor, secondary finishing and total cost per finished part.
Q3: Which is more accurate, laser or plasma?
Laser generally provides higher dimensional precision and a narrower kerf. Modern high-definition plasma can still meet many fabrication tolerances, particularly where extreme precision is unnecessary.
Q4: Which is faster, plasma or laser?
It depends on thickness. Fiber laser can be extremely fast on thin sheet, while plasma can become highly competitive or faster as material thickness increases.
Q5: Is plasma better for thick steel?
Plasma is a strong option for thick carbon-steel plate, particularly when production speed, bevel capability and capital cost are priorities. High-power fiber laser should still be compared where fine features or automation justify the investment.
Q6: Can laser and plasma both cut stainless steel?
Yes. Both can process stainless steel with appropriate systems and gases.
Q7: Can laser and plasma cut aluminum?
Yes. Both technologies can process aluminum when correctly configured.
Q8: Can plasma cut non-metal materials?
No. Plasma cutting requires an electrically conductive workpiece.
Q9: Which process makes smaller holes?
Fiber laser generally has the advantage for very small holes and detailed features because of its narrower cutting beam and kerf.
Q10: Which process is better for bevel cutting?
Plasma has a strong history in heavy-plate bevel preparation. Laser bevel cutting is also available and may be attractive where precision and detailed geometry are important.
Q11: Should I compare machines using my actual parts?
Yes. The most useful comparison uses the same material, thickness, drawing, tolerance and quality criteria for both processes.
For more practical guidance on laser equipment maintenance, troubleshooting, performance optimization, and failure prevention, explore the related technical resources below. These articles provide additional engineering insights to help you improve machine reliability, efficiency, and long-term performance.
English
French
German
Hindi
Italian
Japanese
Korean
Portuguese
Russian
Spanish
Tell us about your manufacturing challenges.
Our engineers will design a laser solution tailored to your exact requirements.
