High Power Exchange Table Laser Cutting Machine

40+ Years of Innovation

Product Overview

ZG-FC-3015/4020/6020/8025/Custom Model

This high-power exchange table laser cutting machine features optional 3000W to 20000W laser power, perfectly adapted for cutting thick carbon steel, stainless steel, aluminum alloy and various heavy metal materials. Adopting dual automatic exchange table design, it realizes offline loading and unloading during cutting operation, effectively eliminating equipment idle time. With rigid gantry structure and high-speed servo drive system, the equipment maintains stable high precision and efficient processing for long-term heavy-load mass production, widely applied in heavy industry, machinery manufacturing, sheet metal processing and engineering equipment fields.

3000W-20000W High Power

Effortless thick metal cutting capability.
Dual Exchange Worktables

Uninterrupted cyclic batch production.

Key Advantages

Why choose High Power Exchange Table Laser Cutting Machine?

Wide Power Range Selection

Supports flexible laser power configuration from 3000W to 20000W to match different metal thicknesses. It covers thin plate fine cutting and thick plate heavy-duty processing demands perfectly.
Non-Stop Batch Production

Dual automatic exchange tables complete loading and unloading alternately without machine shutdown. It greatly improves overall production efficiency and reduces manual waiting time effectively.
Superior Thick Plate Processing

High-power laser output ensures fast piercing and smooth cutting of thick metal plates. It avoids burrs and uneven cuts to guarantee high-quality finished workpieces.

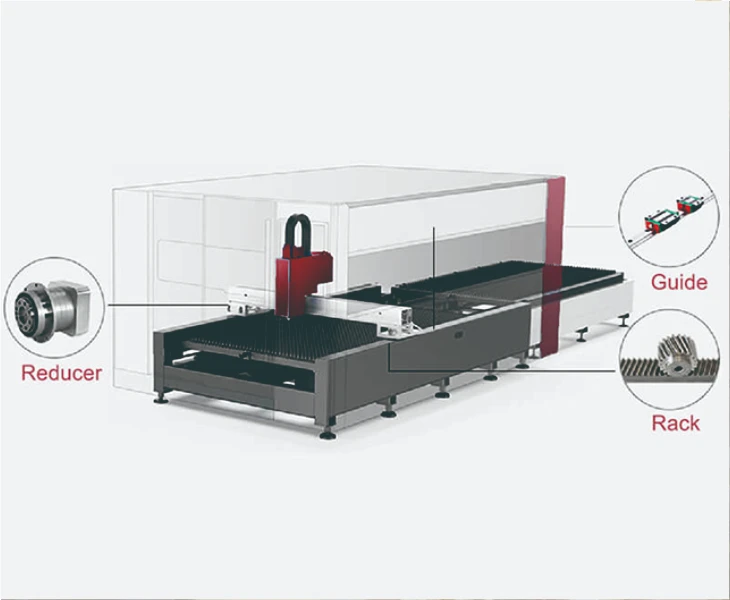

High Rigidity & Stability

Reinforced heavy-duty gantry structure resists deformation under long-term high-load operation. It maintains consistent dimensional accuracy and stable running performance for years.
Low Idle Operating Cost

The exchange table structure minimizes equipment standby and idle time. It maximizes machine utilization and lowers unit production cost for large-batch processing.
Intelligent & User-Friendly Operation

Equipped with mature industrial control system with simple debugging and operation process. It supports automatic parameter matching to lower operator technical requirements.

TECHNICAL DATA

Technical Specifications

Custom Model

PARAMETER	Custom Model
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	3000W-20000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

High-power heavy-duty cutting solution for industrial thick metal processing.

Heavy Machinery Manufacturing

Thick Mechanical Structural Parts Cutting

It achieves efficient and precise cutting of thick steel plates for engineering machinery components.
Sheet Metal Mass Processing

Batch Thick Sheet Metal Fabrication

It supports uninterrupted batch production of various thick metal sheet parts for factories.

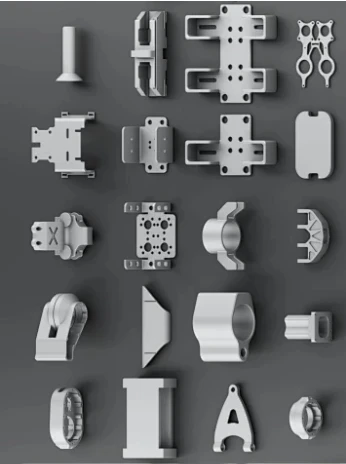

Engineering Equipment Industry

Engineering Metal Accessories Processing

It meets high-precision cutting demands of thick metal parts for engineering and supporting equipment.
Metal Structure Fabrication

Thick Metal Structural Component Cutting

It delivers stable and high-efficiency processing for various heavy metal structural parts.

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Flexible laser power ranging from 3000W to 20000W is optional for diverse processing needs. It adapts perfectly from thin plate precision cutting to thick plate heavy-duty cutting scenarios.
Working Area Customization

Customizable machine working size matches different workpiece specifications and factory layouts. It balances processing range and site utilization to fit personalized production demands.
Auxiliary System Customization

Optional dust removal system, fully enclosed protective housing and automatic feeding devices are available. It upgrades production safety, environmental performance and overall automation level.
