Product Overview

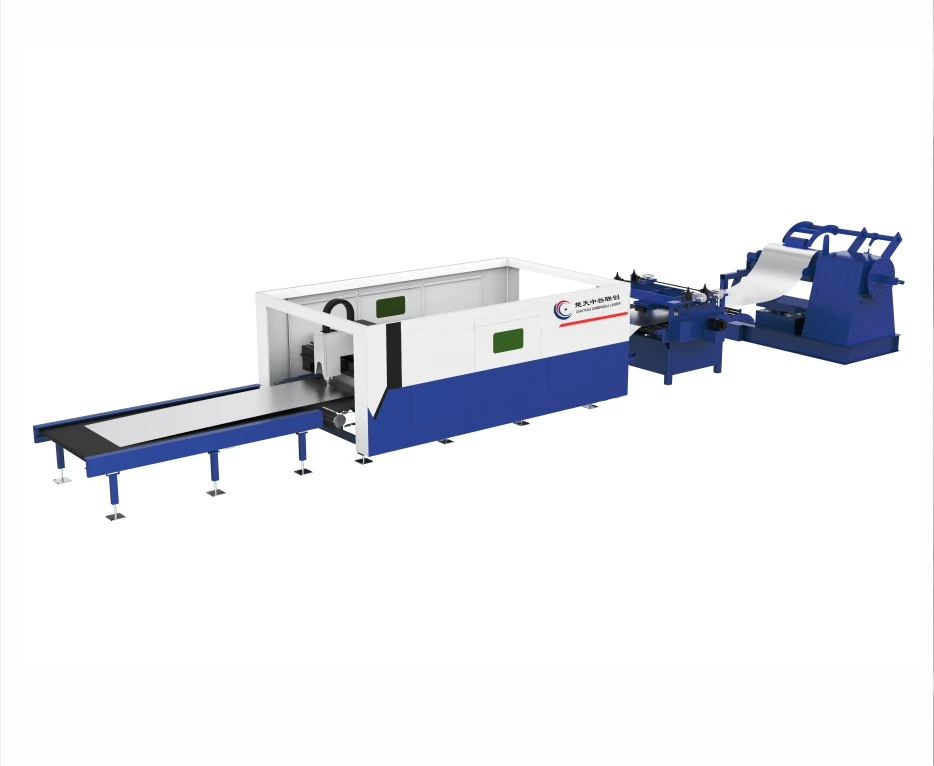

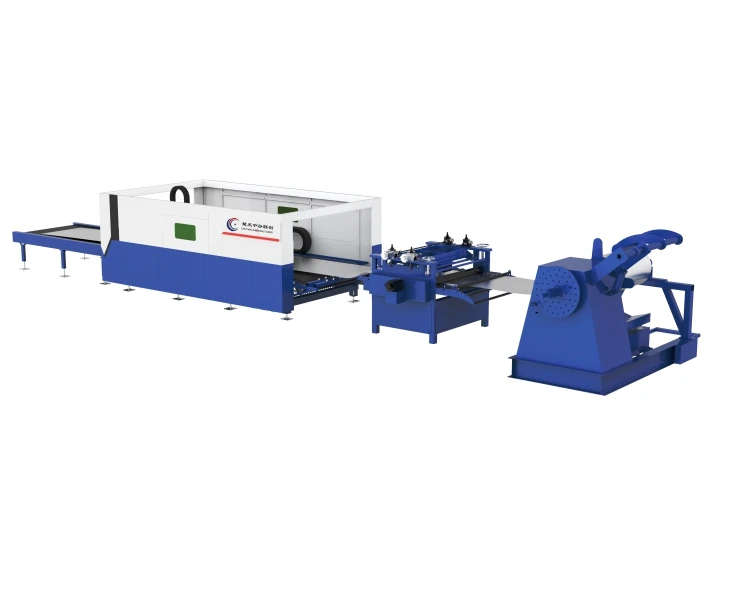

Coil-Fed Fiber Laser Cutting Machine ZG-FC-3015/4020/6015

This coil-fed fiber laser cutting machine is professionally developed for continuous metal coil processing. It integrates automatic uncoiling, leveling, feeding and laser cutting into one production line, realizing fully automated continuous manufacturing. With 1000W-15000W optional laser power, it is ideal for thin and medium-thickness metal coils. It greatly improves material utilization and production continuity, perfectly suited for large-scale batch processing in home appliance, electrical cabinet and kitchenware industries.

Automatic Coil Processing Line

Uninterrupted one-line coil production.
High Volume Output

Stable mass coil sheet fabrication.

Key Advantages

Why choose Coil-Fed Fiber Laser Cutting Machine?

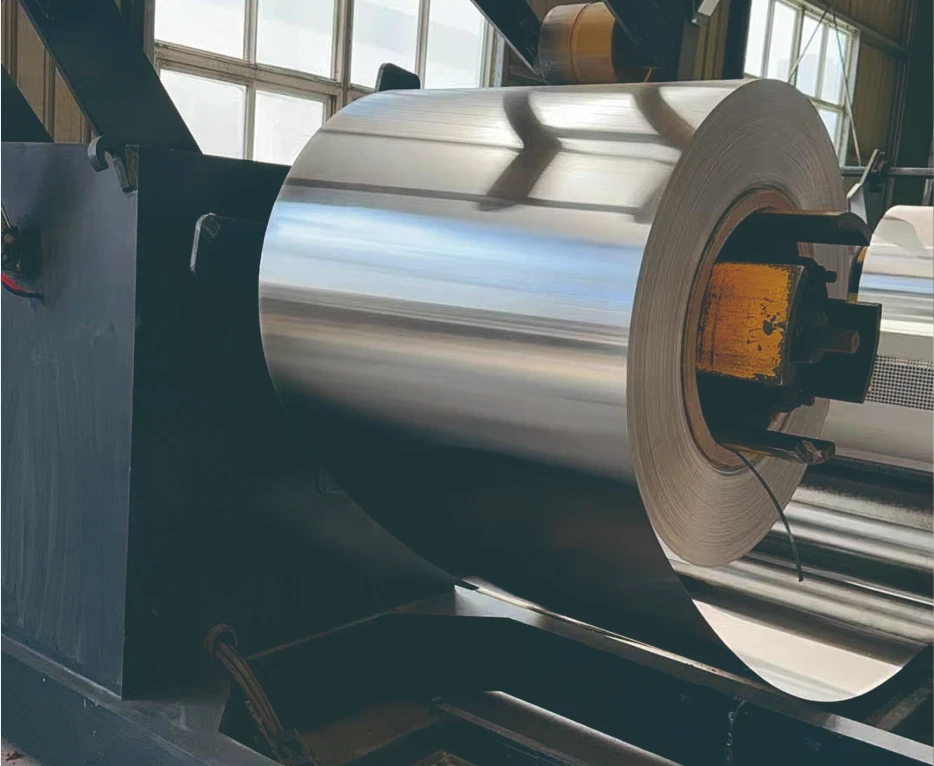

Integrated Coil Production Line: Combines uncoiling, leveling, feeding and cutting in one machine. It eliminates manual material handling and realizes fully automatic streamlined production.

Integrated Coil Production Line

Combines uncoiling, leveling, feeding and cutting in one machine. It eliminates manual material handling and realizes fully automatic streamlined production.
Wide Laser Power Range

Optional 1000W-15000W laser power adapts to thin and medium metal coils. It meets diversified cutting requirements of different sheet thicknesses and metal materials.
Uninterrupted Mass Production

Continuous feeding structure avoids frequent material replacement downtime. It greatly improves production efficiency and annual output capacity for factories.
High Material Utilization Rate

Intelligent layout nesting minimizes leftover coil raw materials. It effectively saves material cost and improves economic benefits for enterprises.
Smooth & Level Cutting Surface

Equipped with precision leveling device to keep sheets flat before cutting. It guarantees consistent cutting accuracy and flawless finished surface quality.
Industry-Oriented Configuration

Optimized for home appliance, kitchenware and electrical cabinet industries. It perfectly fits long-term, standardized and repetitive batch production demands.

TECHNICAL DATA

Technical Specifications

ZG-FC-3015/4020/6015

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Automated coil cutting solution for continuous thin-sheet mass manufacturing.

Home Appliance Manufacturing

Household appliance shell cutting

It efficiently cuts thin metal sheets for refrigerator, air conditioner and washing machine housings.
Electrical Cabinet & Enclosure Production

Electrical box batch fabrication

It realizes mass processing of metal cabinets, control boxes and electrical enclosures.
Kitchenware Manufacturing

Stainless steel kitchenware processing

It performs high-speed cutting for kitchen utensils, sinks and cookware components.
Metal Panel Processing

Decorative metal panel cutting

It supports continuous cutting for decorative panels, shelves and general sheet metal parts.

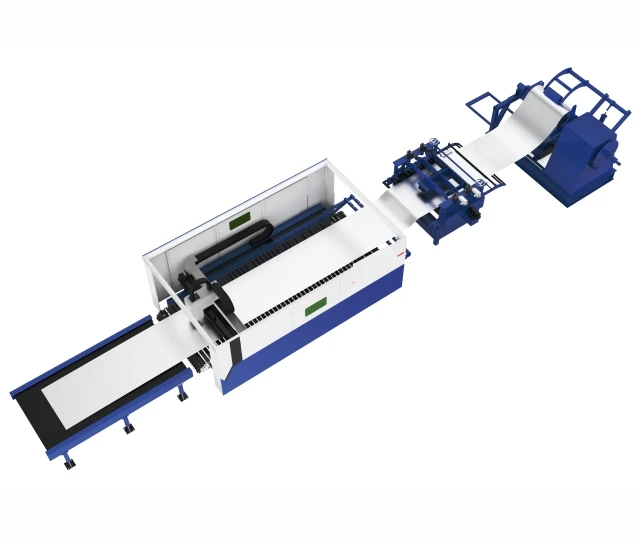

Coil-Fed Fiber Laser Cutting Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple laser power from 1000W to 15000W is optional for different coil thickness. It ensures perfect cutting speed and smooth edge for various metal coil materials.
Working Size Customization

Customizable models including 3015, 4020 and 6015 match different coil widths. It adapts to diverse production scales and factory space layout requirements.
Automatic Line Customization

We can upgrade automatic winding, collecting and intelligent nesting systems. It further improves automation level and material utilization for large-batch coil production.
