Tube & Plate Fiber Laser Cutting Machine ZG-FC-3015/4020/6020

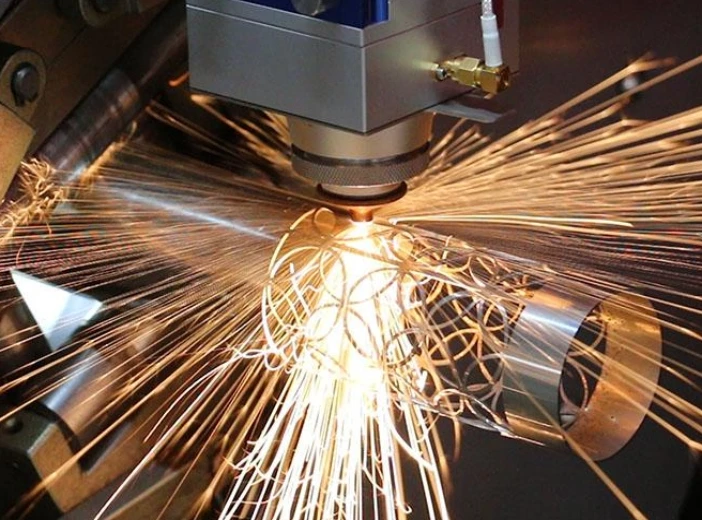

This sheet and tube integrated fiber laser cutting machine adopts an all-in-one structural design, supporting simultaneous processing of metal flat sheets and various metal pipes. Equipped with 1000W-15000W optional fiber laser source, it delivers high-precision and high-efficiency cutting for multiple metal materials. It saves workshop space and equipment investment, perfectly adapting to flexible production needs of sheet and tube mixed processing for various industrial manufacturing.

Sheet & Tube Dual Processing

One machine for two cutting modes.
Wide Power Coverage

1000W-15000W for diverse processing.

Key Advantages

Why choose Sheet & Tube Integrated Laser Cutting Machine?

Integrated Dual-Function Design

It integrates sheet metal and metal tube cutting functions into one single device. It eliminates the need for separate equipment and greatly saves factory investment and workshop space.
Flexible Power Configuration

Optional fiber laser power from 1000W to 15000W adapts to thin and thick metal materials. It meets precision fine cutting and heavy-duty cutting requirements of different workpieces.
High Production Flexibility

Supports free switching between plate and tube processing modes. It efficiently handles mixed production tasks and adapts to diversified customized orders.
Stable Fiber Laser Performance

Adopts high-quality fiber laser source with stable energy output. It ensures smooth cutting edges and consistent processing quality for long-term operation.
Cost & Space Saving

One device replaces two independent cutting machines to lower procurement costs. The compact integrated structure optimizes workshop space utilization effectively.
Wide Industrial Adaptability

Fits automotive, furniture, construction machinery and metal structure industries. It covers mainstream sheet and tube processing demands in industrial manufacturing.

TECHNICAL DATA

Technical Specifications

ZG-FC-3015/4020/6020

PARAMETER	ZG-FC-3015/4020/6020
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

All-in-one cutting solution for industrial metal sheet and tube processing.

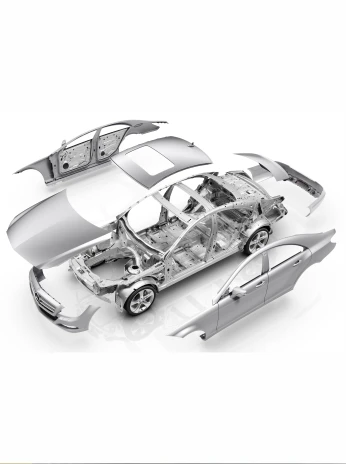

Automotive Parts Manufacturing

Auto Sheet And Tube Parts Cutting

It achieves precise cutting for automotive flat components and tubular structural parts.
Furniture Manufacturing

Metal Furniture Component Processing

It efficiently processes metal furniture frames, tubes and decorative sheet panels.
Construction Machinery Industry

Engineering Sheet And Tube Fabrication

It meets high-precision processing needs of mechanical sheet and tubular accessories.
Metal Structure Engineering

Structural Steel Sheet And Tube Cutting

It provides integrated high-efficiency cutting for building structural steel sheets and pipes.

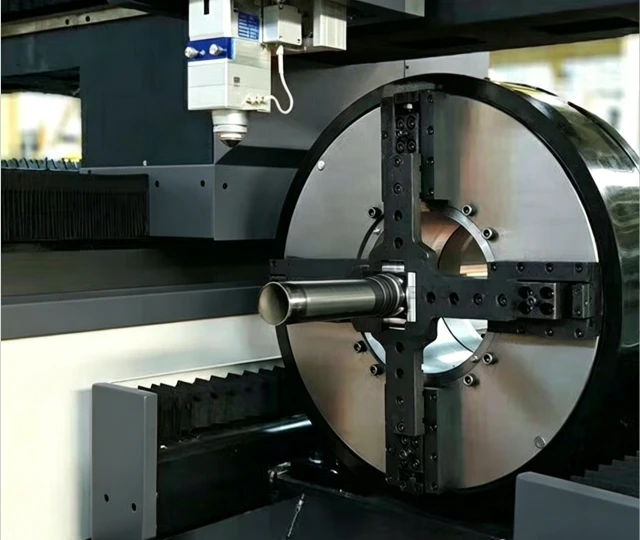

Tube & Plate Laser Cutting Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple laser power options from 1000W to 15000W are available for different metal thicknesses and materials. It realizes perfect matching of cutting speed and finish for diversified processing tasks.
Working Size Customization

Customizable machine models including 3015, 4020 and 6020 fit various workpiece dimensions. It adapts to different production scales and on-site workshop layout requirements.
Processing Function Customization

We can upgrade professional tube cutting fixtures and intelligent switching systems. It improves processing accuracy and efficiency for mixed sheet and tube batch production.
