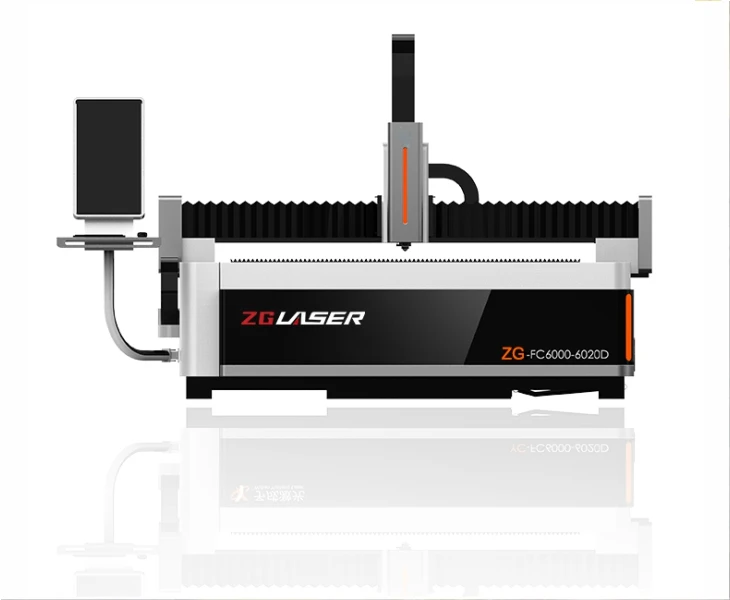

Flat Laser Cutting Machine / Custom Model

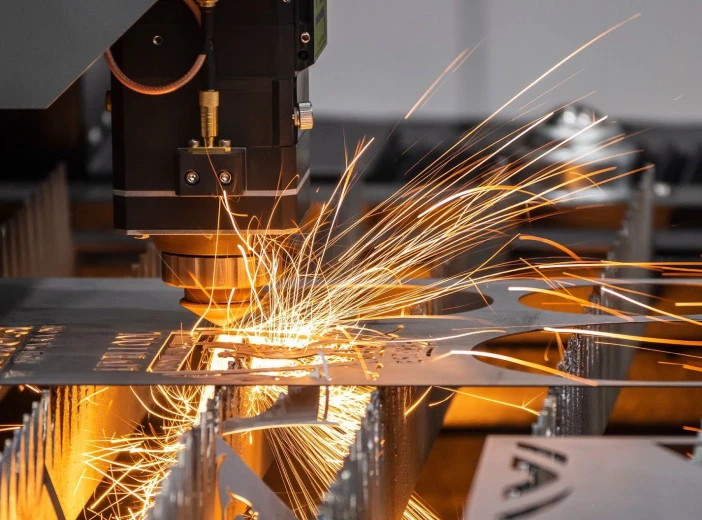

The flat laser cutting machine is a professional flat sheet metal processing equipment, designed for high-speed and high-precision cutting of carbon steel, stainless steel, aluminum alloy and other metal sheets. It adopts stable gantry transmission and advanced laser control system to ensure consistent cutting quality for long-term batch production. With simple operation, low failure rate and low operating cost, it is widely used in hardware, sheet metal, machinery and advertising metal processing industries.
-
High-Speed Flat Cutting
Fast and precise sheet metal cutting.
-
Stable Batch Performance
Long-term stable mass production capacity.
Why choose Flat Laser Cutting Machine?
-
Excellent Cutting Precision
Adopts precise transmission structure and optimized laser output control. It ensures smooth cutting edges and consistent dimensional accuracy for all sheet metal workpieces.
-
High Mass Production Efficiency
Supports continuous uninterrupted flat sheet cutting with fast response speed. It greatly shortens production cycles and improves factory output capacity.
-
Wide Material Compatibility
Perfectly processes carbon steel, stainless steel, aluminum and various alloy metal sheets. It meets diversified flat metal cutting demands for multiple industries.
-
Low Operating Cost
Non-contact laser cutting avoids tool wear and reduces daily maintenance expenses. High material utilization effectively saves raw material costs for enterprises.
-
Simple & Intelligent Operation
Equipped with humanized control system with intuitive operation interface. It lowers technical requirements for operators and improves working efficiency.
-
High Operational Stability
Adopts rigid mechanical structure and mature industrial configuration. It runs stably for a long time with low failure rate and reduces production downtime.
Technical Specifications
| PARAMETER | Custom Model |
|---|---|
| Laser type | Fiber-optic laser |
| Laser working medium | Erbium-doped fiber |
| Output Power | 1000W-15000W |
| Power stability | <3% |
| Minimum line width | ≤0.15mm |
| Laser power stability | 0.01 |
| Continuous working time | 24 Hours |
| Optical path system | Optical fiber transmission |
| Laser wave length | 1080nm |
| Beam quality | 2.1~2.7 |
| Repeatability | ≤+ 0.02mm/m |
| PARAMETER | ZG-T6020 |
|---|---|
| Laser Power | 1.5 – 4 kW |
| Max Tube Length | 6,000 mm |
| Max Round Tube Diameter | Ø20 – Ø200 mm |
| Max Square Tube Size | 150 × 150 mm |
| Positioning Accuracy | ±0.03 mm |
| Repeat Accuracy | ±0.02 mm |
| Max Cutting Speed | 100 m/min |
| Rapid Traverse Speed | 80 m/min |
| Chuck Type | Pneumatic 3+3 |
| Max Tube Weight | 80 kg/m |
| CNC System | ZG TubePro™ |
| Total Power | 15 kW |
| Machine Weight | 4,500 kg |
| PARAMETER | ZG-FC-3015/4020/6015 |
|---|---|
| Laser type | Fiber-optic laser |
| Laser working medium | Erbium-doped fiber |
| Output Power | 1000W-15000W |
| Power stability | <3% |
| Minimum line width | ≤0.15mm |
| Laser power stability | 0.01 |
| Continuous working time | 24 Hours |
| Optical path system | Optical fiber transmission |
| Laser wave length | 1080nm |
| Beam quality | 2.1~2.7 |
| Repeatability | ≤+ 0.02mm/m |
* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.
Main Application Industries
Reliable flat metal cutting solution for mainstream industrial manufacturing.
-
Sheet Metal Processing IndustryBatch sheet metal parts cuttingIt realizes efficient and precise cutting of various standard and special-shaped sheet metal components.
-

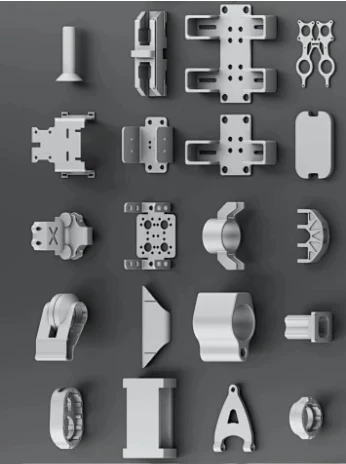

Hardware Manufacturing IndustryHardware accessories precision processingIt delivers high-quality forming cutting for daily hardware and industrial hardware parts.
-

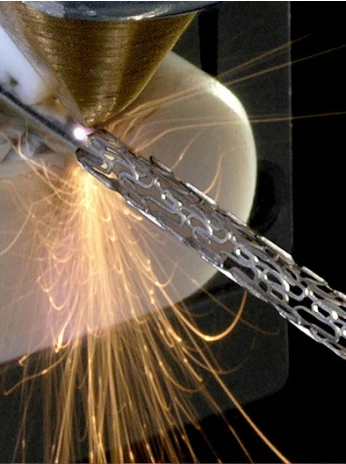

Mechanical Equipment IndustryMechanical structural parts processingIt meets high-precision cutting requirements for mechanical shell and structural sheet parts.
-

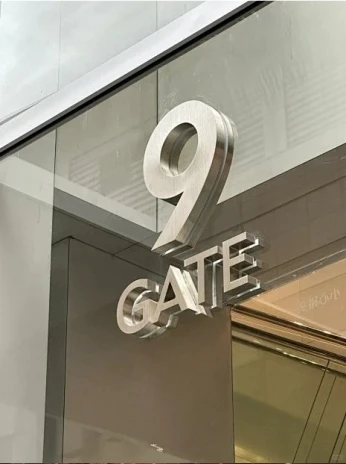

Advertising Metal FabricationMetal logo and craft cuttingIt supports customized cutting of metal signs, artworks and advertising decorative parts.
Customizable to Your Production Needs
-
Working Area Customization
We provide multiple working size options to match different workpiece dimensions and factory space. Customized stroke design maximizes processing range and site utilization.
-
Laser Power Customization
Optional laser power adapts to different metal materials and cutting thicknesses. Reasonable power matching balances cutting speed and edge quality perfectly.
-
Functional Configuration Customization
Customizable dust removal system, protective housing and automatic feeding structure are available. It upgrades production safety, environmental performance and overall automation level.
