Product Overview

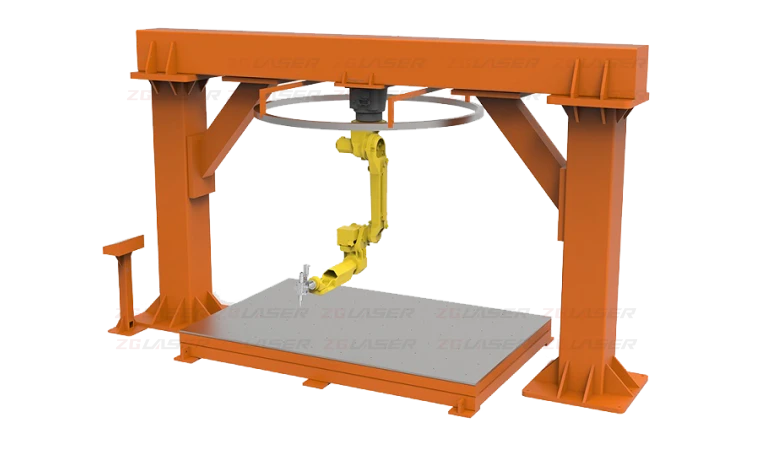

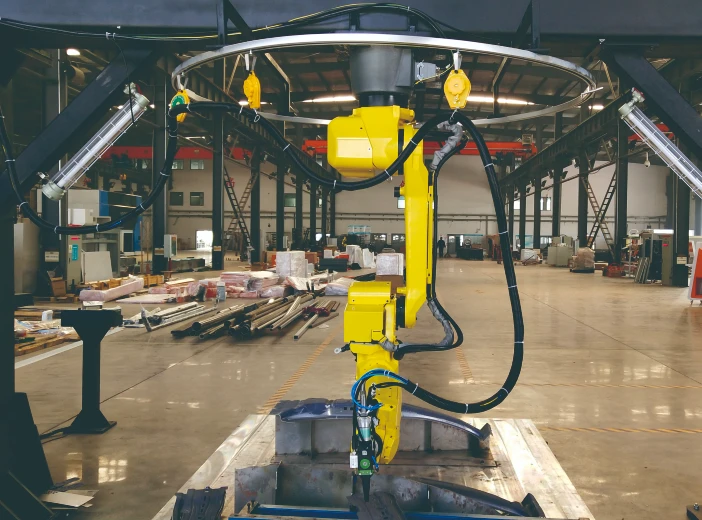

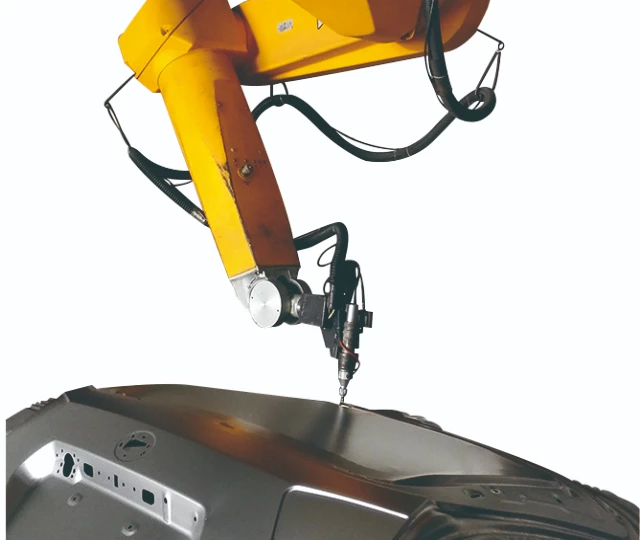

Robotic 3D Laser Cutting Machine / Custom Model

This robotic 3D laser cutting machine combines 6-axis industrial robot and high-precision fiber laser technology. It realizes multi-angle and omnidirectional 3D processing for curved parts, special-shaped tubes and complex structural components. It completes trimming, punching and profiling procedures efficiently with outstanding flexibility and automation performance, widely used in automotive, aerospace, mold and construction machinery industries.

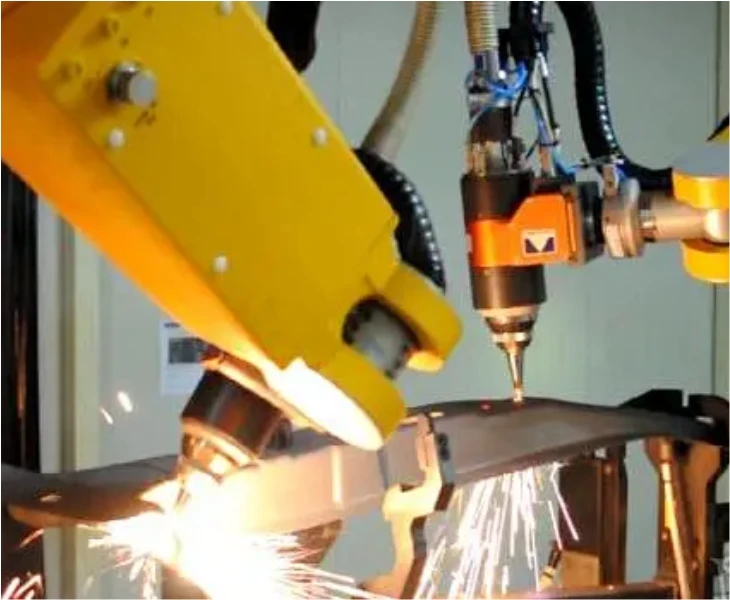

Six-Axis Robotic Movement

Omnidirectional flexible 3D processing.
Complex Part Machining

Perfect for curved & irregular workpieces.

Key Advantages

Why choose Robotic 3D Laser Cutting Machine?

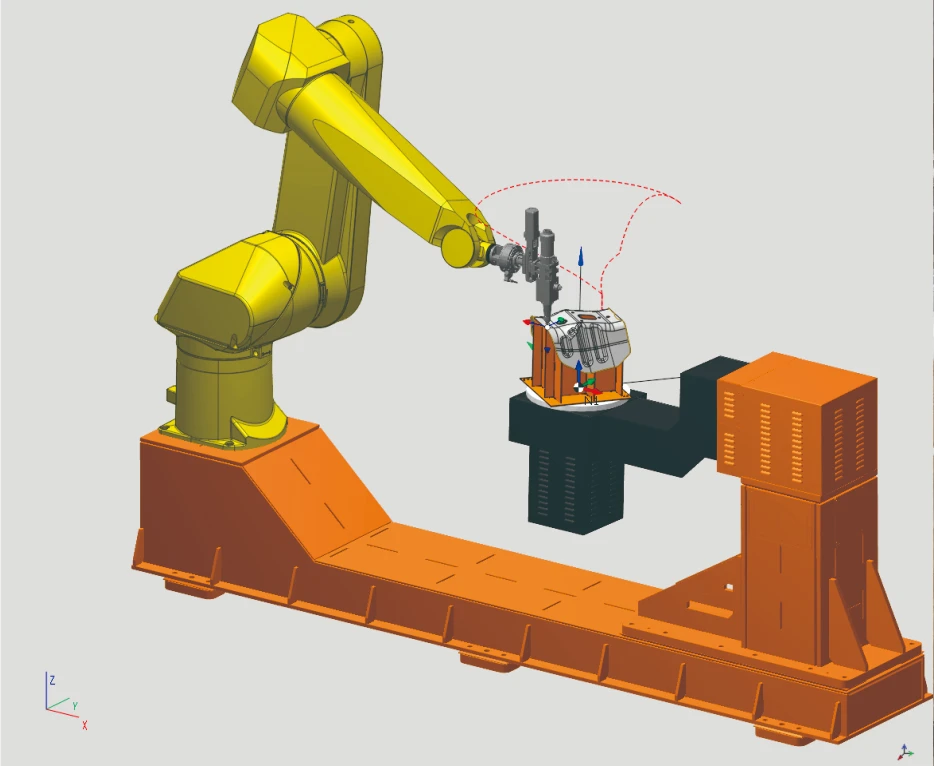

6-Axis Robot Flexible Operation

Equipped with high-performance six-axis industrial robot for multi-angle swinging and rotating. It achieves dead-angle-free cutting for all kinds of complex three-dimensional workpieces.
Advanced Laser & Robot Integration

Fiber laser perfectly matches robotic motion system for stable laser output. It maintains consistent high precision during long-term automated production.
Multiple Processing Functions

Integrates trimming, punching and one-time profiling forming functions. It simplifies production procedures and reduces intermediate handling steps of workpieces.
Strong Workpiece Adaptability

Easily handles curved panels, shaped tubes and abnormal structural parts. It solves difficult processing problems that traditional flat cutting machines cannot complete.
High Automated Production

Intelligent robotic operation reduces manual intervention effectively. It improves production consistency and greatly saves labor costs for enterprises.
Wide Industrial Compatibility

Suitable for automotive, aerospace, mold and engineering machinery fields. It meets high-standard 3D processing demands of high-end manufacturing industries.

TECHNICAL DATA

Technical Specifications

Custom Model

PARAMETER	CUSTOM MODEL
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Intelligent robotic solution for complex 3D curved component processing.

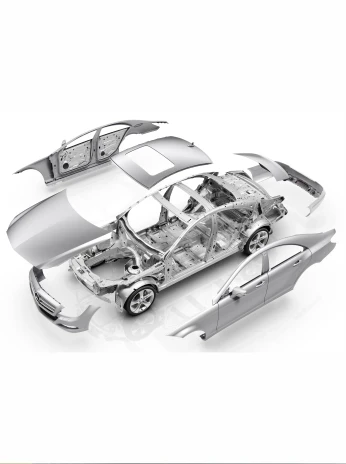

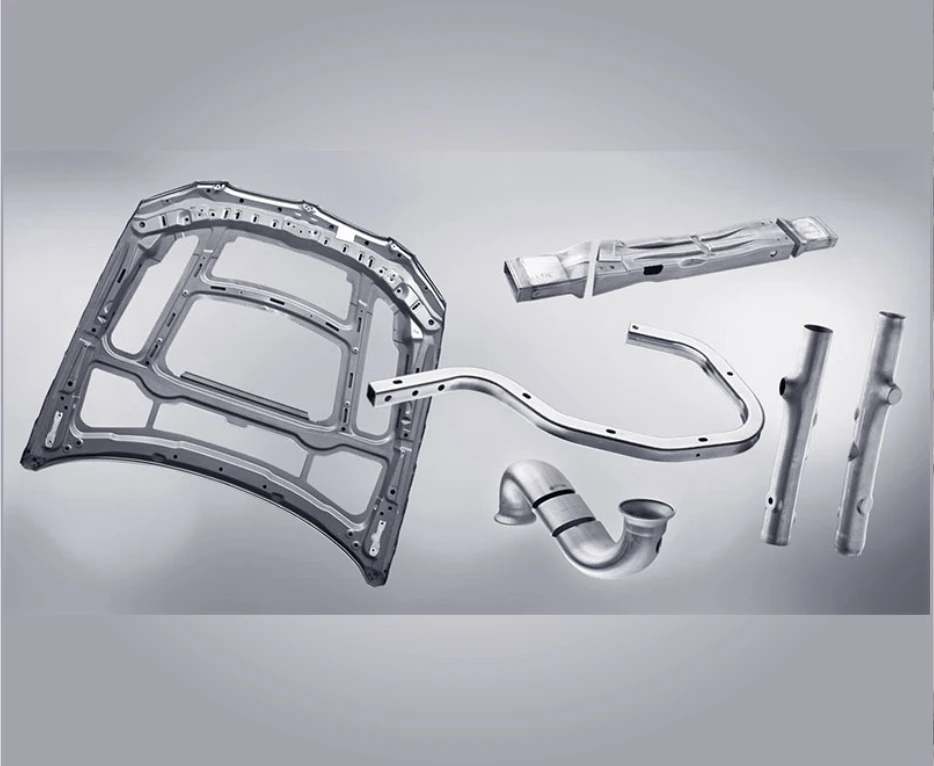

Automotive Manufacturing

Auto Body And Structural Parts Cutting

It provides precision cutting for automotive panels, hydroformed parts and chassis components.

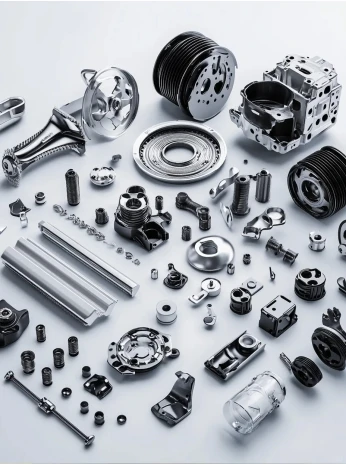

Construction Machinery Manufacturing

Engineering Complex Parts Fabrication

It cuts special-shaped pipes and curved parts for construction mechanical equipment.
Aerospace Industry

Aviation Lightweight Parts Machining

It delivers high-precision processing for complex 3D aerospace structural components.

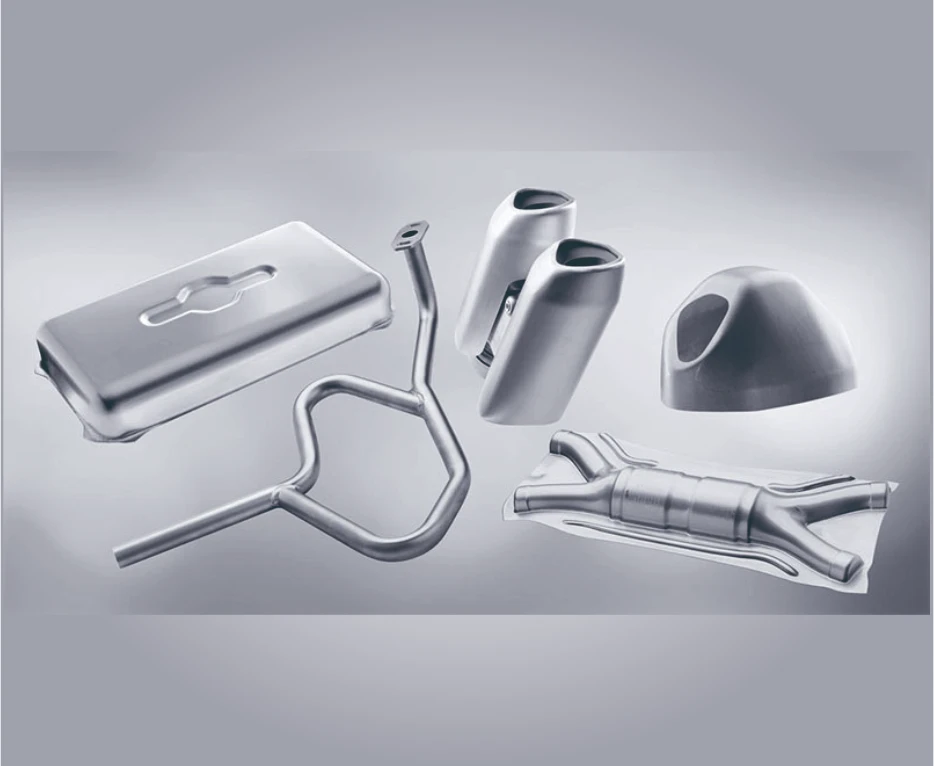

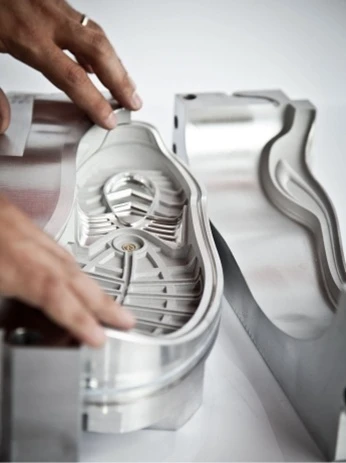

Mold & Special-shaped Parts Processing

3d Molds And Irregular Parts Trimming

It performs accurate punching and trimming for 3D molds and curved special-shaped components.

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Various fiber laser power options match different metal materials and plate thicknesses. It balances cutting speed and edge quality for diversified 3D processing tasks.
Robot Configuration Customization

Customizable robot arm range and load capacity adapt to different workpiece sizes. It ensures flexible and stable movement for large or heavy curved components.
Intelligent Function Customization

Upgradable offline programming and visual positioning systems improve machining intelligence. It shortens debugging time and adapts to frequent product switching production.
