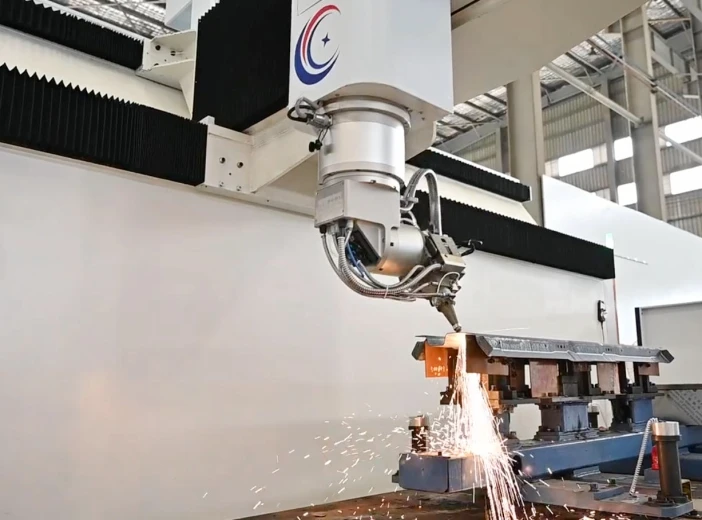

SF Series / ZGF3014SFI-30

The cost-effective SF Series 3D five-axis laser cutting machine adopts premium cantilever structure with great accessibility, structural stability and compact layout. It is equipped with servo drive, offline programming, manual teaching and multi-angle rotary axis functions, supporting ±135° A-axis swing and infinite C-axis rotation. Built with fixed worktable, automatic lubrication, flying optical path and full anti-collision protection, it features intuitive touch screen operation, easy maintenance and reserved expansion interface for automated production line docking. It perfectly meets 3D cutting demands for automotive parts, mold prototyping and general precision machining.

Cantilever Stable Structure

Compact layout with rigid performance.
Multi-Axis Free Rotation

Omni-angle 3D flexible cutting.

Key Advantages

Why choose SF Series 3D Five-Axis Laser Cutting Machine?

This series integrates superior performance, stable operation and cost advantages to empower your industrial cutting production.

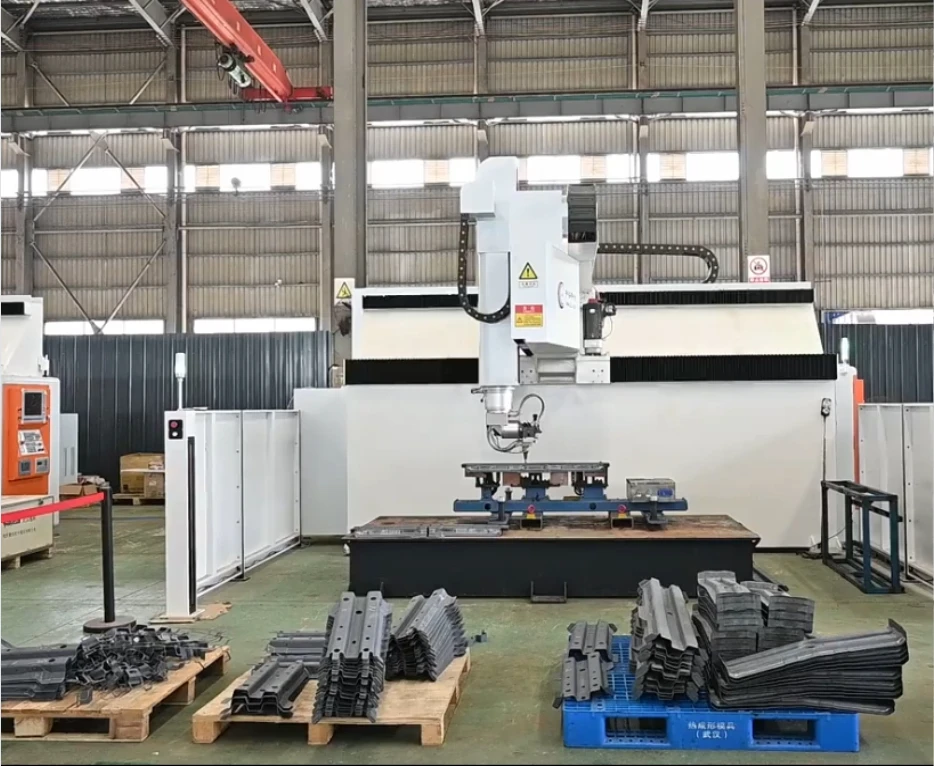

Cantilever Frame Design

Adopts optimized cantilever structure with high rigidity and outstanding operating stability. It provides wide operational access and saves workshop space with compact overall layout.

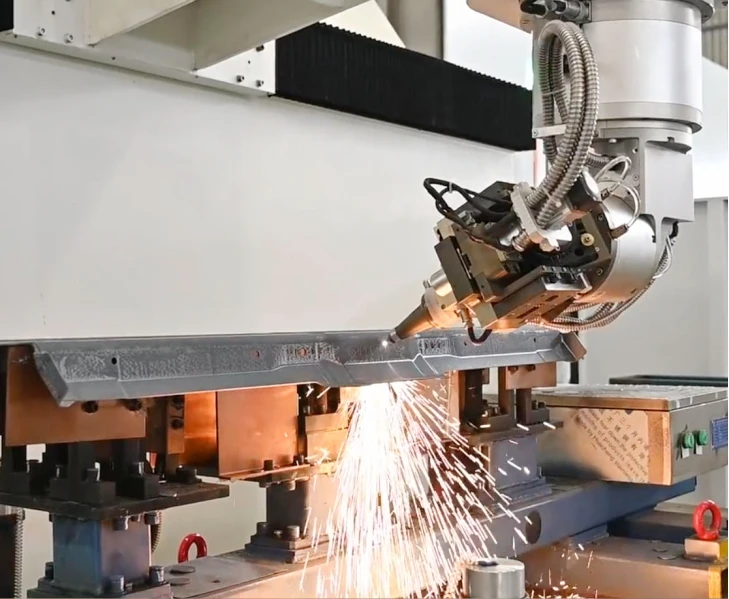

Full Rotation Axis Capability

Supports ±135° A-axis and infinite C-axis rotation to realize arbitrary angle cutting. It handles complex curved and special-shaped workpieces without repeated clamping.
Complete Protection & Maintenance

Built-in multi anti-collision functions and automatic lubrication system protect equipment effectively. Flying optical path design realizes long-term maintenance-free stable operation.

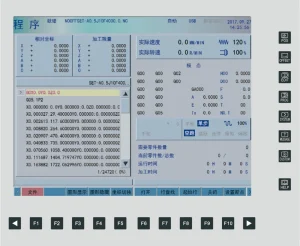

Intelligent Control System

Equipped with PLC touch screen system, offline programming and manual teaching functions for simple operation. The intuitive interface lowers operating threshold and improves working efficiency greatly.
Convenient Production Expansion

Reserved expansion interface supports seamless docking with fully automatic production lines. Front-mounted control panel brings easy operation and neat overall equipment appearance.
Cost-Effective Practical Model

Value-engineered configuration balances performance and investment cost perfectly. It fits mold prototyping, auto parts and small-to-medium batch manufacturing with high cost performance.

TECHNICAL DATA

Technical Specifications

SF Series

Item / Model	3014	4025
X-axis Travel	3000 mm	4000 mm
Y-axis Travel	1400 mm	2500 mm
Z-axis Travel	650 mm	650 mm
A-axis Travel	±135°	±135°
C-axis Travel	N×360°	N×360°
U-axis Travel (Floating Axis)	±9 mm	±9 mm
Max. Speed of X/Y/Z-axis	80 m/min	80 m/min
Max. Speed of A/C-axis	540 °/s	540 °/s
Machining Accuracy of X/Y/Z-axis	±0.05 mm	±0.05 mm
Machining Accuracy of A/C-axis	0.015°	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.03 mm	±0.03 mm
Repeat Positioning Accuracy of A/C-axis	0.01°	0.01°
Worktable	Fixed Worktable	Fixed Worktable
Laser Power	3000 W/4000 W/6000 W	3000 W/4000 W/6000 W
Applicable Assist Gases	Air, Nitrogen, Oxygen	Air, Nitrogen, Oxygen

PARAMETER	3014	4025
X-axis Travel	3000 mm	3000 mm
Y-axis Travel	1400 mm	1600 mm
Z-axis Travel	650 mm	650 mm
A-axis Travel	±135°	±135°
C-axis Travel	N×360°	N×360°
U-axis Travel (Floating Axis)	±9 mm	±9 mm
Max. Speed of X/Y/Z-axis	80 m/min	80 m/min
Max. Speed of A/C-axis	540 °/s	540 °/s
Machining Accuracy of X/Y/Z-axis	±0.05 mm	±0.05 mm
Machining Accuracy of A/C-axis	0.015°	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.03 mm	±0.03 mm
Repeat Positioning Accuracy of A/C-axis	0.01°	0.01°
Worktable	Fixed Worktable	Fixed Worktable
Laser Power	3000 W/4000 W/6000 W	3000 W/4000 W/6000 W
Applicable Assist Gases	Air, Nitrogen, Oxygen	Air, Nitrogen, Oxygen

PARAMETER	3014	4025
X-axis Travel	3000 mm	3000 mm
Y-axis Travel	1400 mm	1600 mm
Z-axis Travel	650 mm	650 mm
A-axis Travel	±135°	±135°
C-axis Travel	N×360°	N×360°
U-axis Travel (Floating Axis)	±9 mm	±9 mm
Max. Speed of X/Y/Z-axis	80 m/min	80 m/min
Max. Speed of A/C-axis	540 °/s	540 °/s
Machining Accuracy of X/Y/Z-axis	±0.05 mm	±0.05 mm
Machining Accuracy of A/C-axis	0.015°	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.03 mm	±0.03 mm
Repeat Positioning Accuracy of A/C-axis	0.01°	0.01°
Worktable	Fixed Worktable	Fixed Worktable
Laser Power	3000 W/4000W/6000W	3000 W/4000W/6000W
Applicable Assist Gases	Air, Nitrogen, Oxygen	Air, Nitrogen, Oxygen

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Professional 3D cutting solution for precision machining and prototype manufacturing.

Automotive Industry

Automotive component precision cutting

It delivers reliable high-precision 3D cutting for various automotive structural parts.
Mold Manufacturing

Mold prototype & complex contour machining

It perfectly satisfies 3D processing demands for mold prototyping and intricate mold parts.
General Machining

Diversified precision machining tasks

It adapts to various 3D cutting workpieces in general precision machining industry.
Prototyping & Small-Batch Production

Prototype and mid-small batch processing

It provides flexible and efficient cutting for prototype development and medium-small batch production.

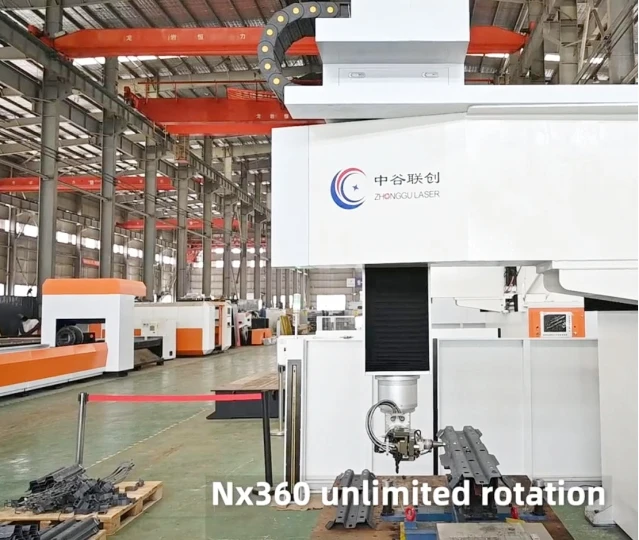

SF Series 3D 5-Axis Laser Cutting Machine Customized

Machine Configuration

Customizable to Your Production Needs

Working Table Customization

We provide customized fixed worktable size according to customer workpiece dimension and site layout. Rational table design simplifies loading and unloading and improves overall processing efficiency.
Function Configuration Customization

Optional upgraded offline programming and teaching functions can be matched for complex production demands. Reserved interface can be expanded to connect with automated assembly lines for unmanned production.
Protection & Appearance Customization

Customized safety protection cover and dust-proof structure are available for workshop environmental requirements. The overall appearance and control panel position can be adjusted to fit on-site installation and operation habits.
