Compact 3D Laser Cutting Station for Rapid Prototyping

40+ Years of Innovation

Product Overview

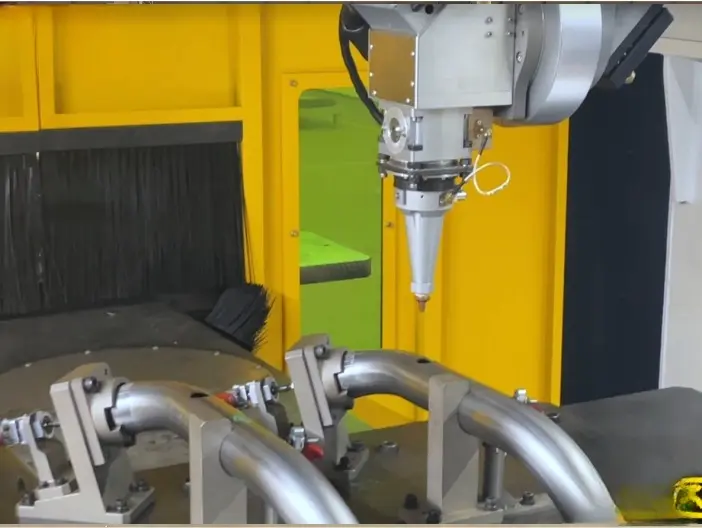

Compact 3D Five-Axis Laser Cutting Machine / ZGF1515DAI-30

This compact 3D five-axis laser cutting machine retains the same core performance as the S-AUTO Series with a space-saving integrated structure. It supports flexible customization of working table size, laser power and fixture schemes, and performs precise cutting on complex workpieces of various materials. The compact layout adapts to diverse factory space and production lines, handling small-batch, complex and customized processing tasks efficiently.

Space-Saving Compact Design

Small footprint with full cutting performance.
Flexible Custom Configuration

Custom size, power and fixture available.

Key Advantages

Why Choose Compact 3D Five-Axis Laser Cutting Machine?

This series integrates superior performance, stable operation and cost advantages to empower your industrial cutting production.

Integrated Compact Structure

Miniature overall design occupies less workshop floor area and fits limited factory space perfectly. It keeps complete 3D five-axis processing ability without performance compromise.
Full Core Cutting Performance

Equipped with the same core cutting capacity as the S-AUTO series for complex curved and irregular parts. It maintains high precision and stable quality in long-term daily processing.
Diversified Custom Options

Optional table size, laser power and fixture solutions meet personalized production demands. It can be tailored to match different processing materials and workpiece dimensions.
Wide Material Adaptability

Capable of precise cutting for multiple metal materials and complex-shaped components. It covers processing needs from conventional metals to special precision parts.
Flexible Layout Adaptation

Compact structure is easy to place and integrate into various existing production layouts. It works well for scattered workshops and compact production lines.
Batch Compatibility

Easily handles small-batch trial production and medium-volume mass manufacturing tasks. It balances prototype development and formal batch production efficiently.

TECHNICAL DATA

Technical Specifications

ZGF1515DAI-30

PARAMETER	ZGF1515DAI-30
X/Y/Z-axis Travel	1500X1500X700mm
A-axis Travel	±135°
C-axis Travel	n*360°
U-axis Travel (Floating Axis)	±9mm
Max. Speed of X/Y/Z-axis	100m/min
Max. Speed of A/C-axis	540°/s
Machining Accuracy of X/Y/Z-axis	±0.05mm
Machining Accuracy of A/C-axis	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.03mm
Repeat Positioning Accuracy of A/C-axis	0.01°
Laser Power	3000-6000W
Repeat Positioning Accuracy of A/C-axis	0.01°
Worktable	Fixed Worktable
Laser Power	3000 W/4000 W/6000 W
Applicable Assist Gases	Air, Nitrogen, Oxygen

PARAMETER	4035
X/Y/Z-axis Travel	4000X3500X700mm
A-axis Travel	±95°
C-axis Travel	±220°
U-axis Travel (Floating Axis)	0-8mm
Max. Speed of X/Y/Z-axis	50m/min
Max. Speed of A/C-axis	360°/s
Machining Accuracy of X/Y/Z-axis	±0.05mm
Machining Accuracy of A/C-axis	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.04mm
Repeat Positioning Accuracy of A/C-axis	0.015°
Laser Power	2000W

PARAMETER	3014	4025
X-axis Travel	3000 mm	3000 mm
Y-axis Travel	1400 mm	1600 mm
Z-axis Travel	650 mm	650 mm
A-axis Travel	±135°	±135°
C-axis Travel	N×360°	N×360°
U-axis Travel (Floating Axis)	±9 mm	±9 mm
Max. Speed of X/Y/Z-axis	80 m/min	80 m/min
Max. Speed of A/C-axis	540 °/s	540 °/s
Machining Accuracy of X/Y/Z-axis	±0.05 mm	±0.05 mm
Machining Accuracy of A/C-axis	0.015°	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.03 mm	±0.03 mm
Repeat Positioning Accuracy of A/C-axis	0.01°	0.01°
Worktable	Fixed Worktable	Fixed Worktable
Laser Power	3000 W/4000W/6000W	3000 W/4000W/6000W
Applicable Assist Gases	Air, Nitrogen, Oxygen	Air, Nitrogen, Oxygen

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Ideal for compact-space high-precision 3D cutting across multiple precision manufacturing fields.

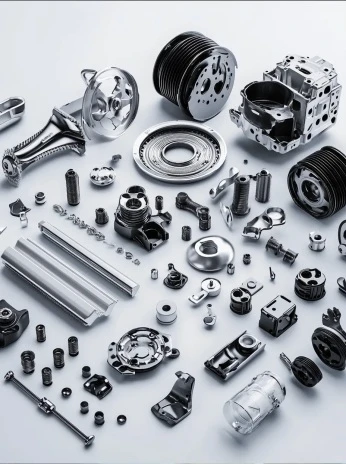

Automotive Parts Manufacturing

Small auto parts precision cutting

It achieves precise cutting for miniature automotive components and complex structural parts.

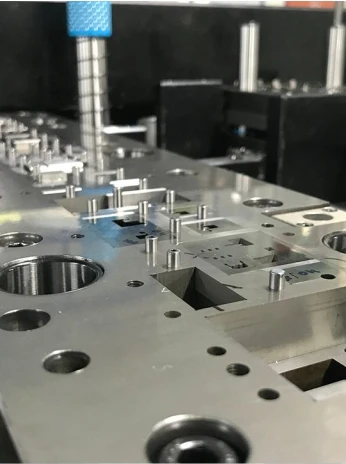

Mold & Tooling Production

Small mold intricate machining

It delivers high-precision processing for small molds and elaborate mold accessories.

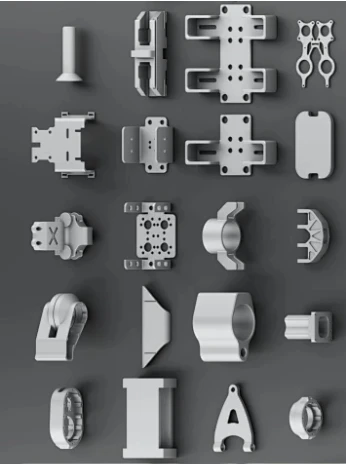

Hardware & Metal Products

Hardware fittings customized cutting

It supports diversified cutting of various hardware parts and precision metal workpieces.

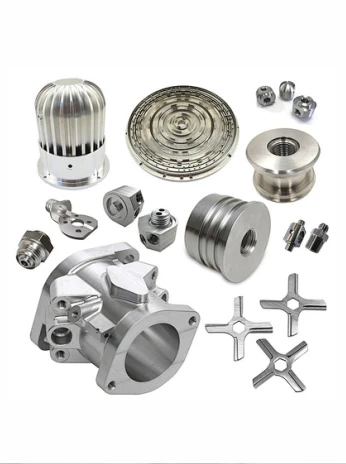

Precision Engineering & Prototyping

Rapid prototyping and small batch production

It perfectly fits rapid prototype development and small-batch production of complex parts.

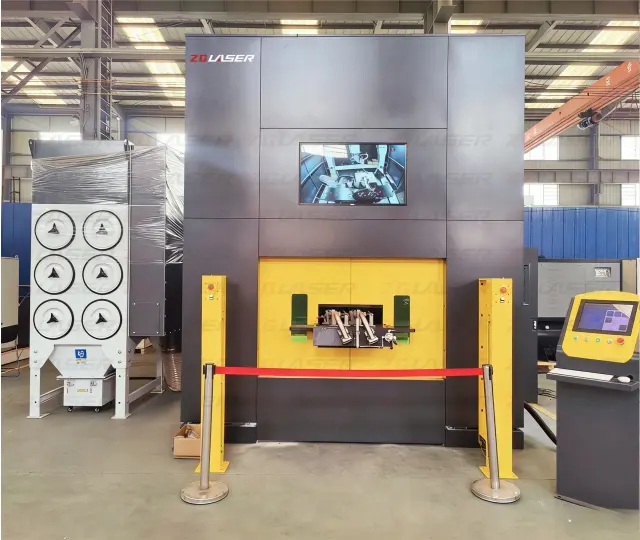

Compact 3D Five-Axis Laser Cutting Machine Customized

Machine Configuration

Customizable to Your Production Needs

Working Table Size Customization

We provide customized table dimensions to match customers’ conventional workpiece sizes and workshop layout limits. The optimized table layout ensures stable clamping and smooth feeding of different workpieces.
Laser Power Customization

Multiple laser power options are optional to adapt to different metal materials and cutting thickness requirements. Reasonable power matching improves cutting speed and guarantees smooth cutting edge quality.

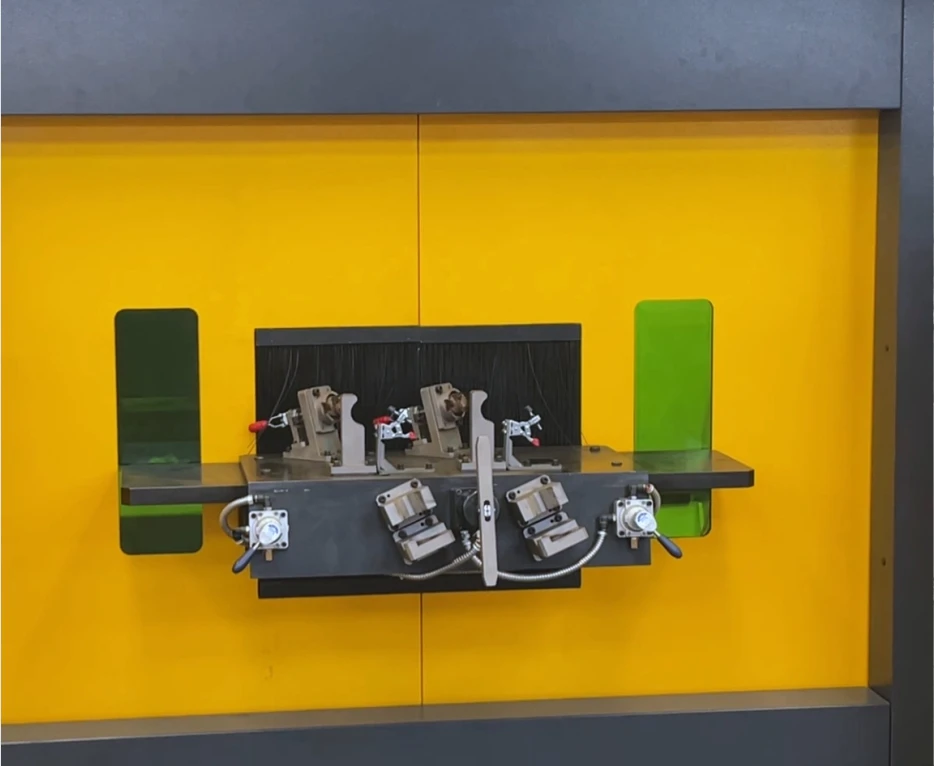

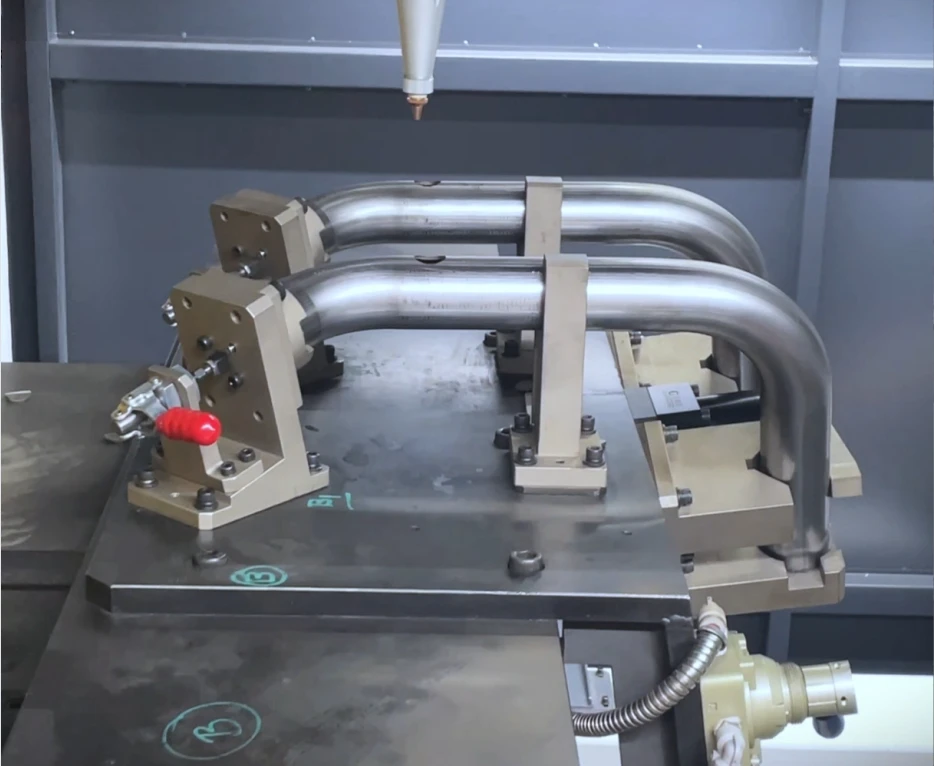

Fixture & Layout Customization

Custom personalized fixture solutions can be designed for special-shaped and non-standard workpieces. The whole machine layout can also be adjusted to perfectly connect with customers’ existing production lines.
