Product Overview

Backpack Laser Cleaning Machine / ZG-HCM100/200/300

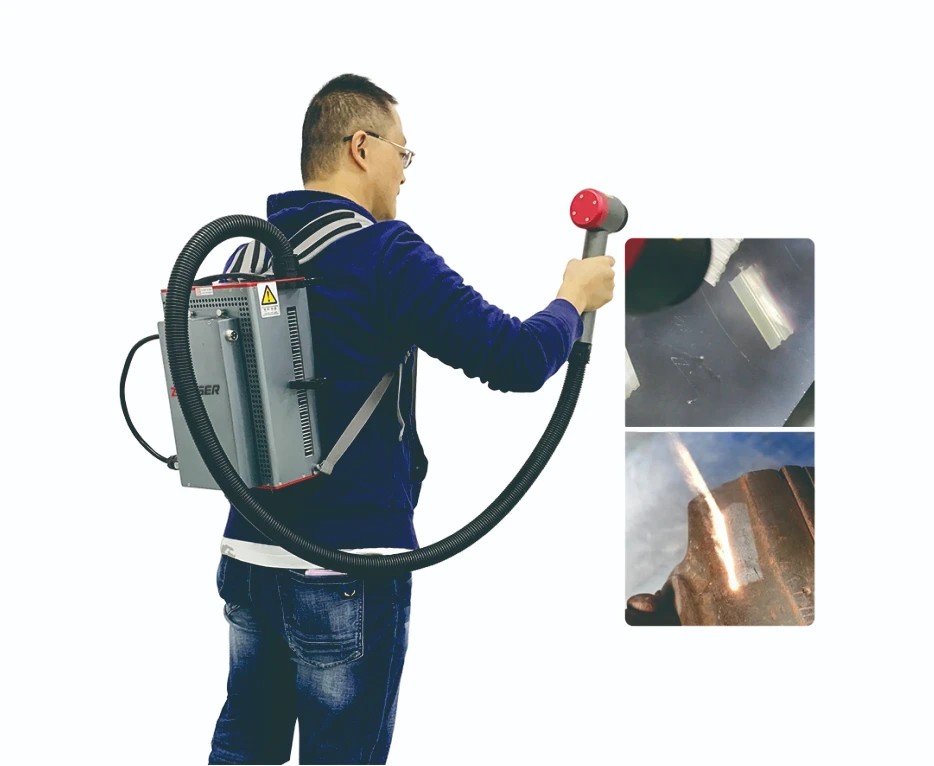

This backpack laser cleaning machine adopts an ergonomic portable backpack structure with ultra-light overall weight. Equipped with high-precision pulsed fiber laser technology, it achieves non-contact cleaning of rust, oxide layers, paint, oil stains and welding slag. It supports dual power supply of battery and mains power, realizing cordless mobile operation. With no consumables, zero pollution and no damage to the base material, it perfectly adapts to high-altitude, narrow-space and outdoor engineering cleaning scenarios for various industries.

Cordless Backpack Portability

Free mobile cleaning anywhere.
Non-Damage Precision Cleaning

Clean dirt without hurting workpiece.

Key Advantages

Why choose Backpack Laser Cleaning Machine?

Ultra-Light Backpack Design

Ergonomic backpack structure reduces carrying burden. It supports free walking and omni-directional dead-angle-free cleaning for complex working scenarios.
Non-Destructive Laser Cleaning

Precise laser energy accurately strips surface dirt, rust and paint. It causes no damage, deformation or scratch to the original workpiece substrate.
Cordless Mobile Operation

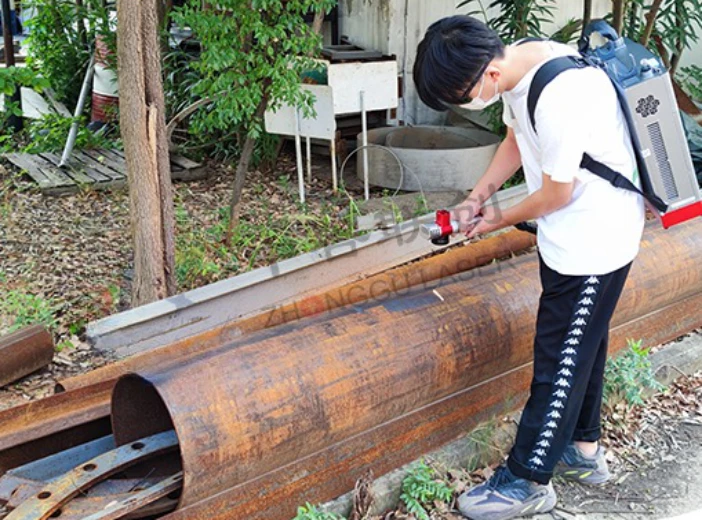

Built-in battery module supports long-endurance wireless work. It breaks the limitation of power cords and adapts to outdoor, high-altitude and field maintenance tasks.
Eco-Friendly & Zero Consumables

Requires no sand, chemical agent or auxiliary materials. It realizes dust-free, pollution-free and green industrial cleaning with low operating cost.
Wide Cleaning Adaptability

Effectively removes rust, oxide, paint, oil and welding slag. It meets daily maintenance and pre-weld cleaning demands of multiple metal workpieces.
Simple & Efficient Operation

Intelligent one-key startup with no professional skills required. It improves cleaning efficiency greatly and replaces traditional inefficient manual polishing and sandblasting.

TECHNICAL DATA

Technical Specifications

ZG-HCM100/200/300

Item	ZG‑HCM100	ZG‑HCM200	ZG‑HCM300
Power Supply	AC220V±10%, 50/60Hz, output DC48V	AC220V±10%, 50/60Hz, output DC48V	AC220V±10%, 50/60Hz, output DC48V
Battery	Optional 200W battery, 80min continuous work	Optional 200W battery, 80min continuous work	Optional 200W battery, 80min continuous work
Power Consumption	≤800W	≤1500W	≤4000W
Ambient Temperature	5°C~40°C	5°C~40°C	5°C~40°C
Ambient Humidity	≤80%	≤80%	≤80%
Average Laser Power	≥100W	≥200W	≥300W
Power Instability	＜5%	＜5%	＜5%
Laser Working Mode	Pulse	Pulse	Pulse
Pulse Width	2‑500ns	2‑500ns	2‑500ns
Max Single Pulse Energy	1.5mJ	2mJ	2mJ
Power Range (%)	0‑100	0‑100	0‑100
Adjustable frequency range	1‑4000Khz	1‑4000Khz	1‑4000Khz
Fiber Length	5m	5m	5m
Cooling Mode	Air	Air	Air
Scanning Range (LxW)	0‑100mm(F160) Dual‑axis with 9 scanning modes	0‑145mm(F210) Dual‑axis with 9 scanning modes	0‑145mm(F210) Dual‑axis with 9 scanning modes
Size(LxWxH)	213x123x339mm	268x135x445mm	268x135x445mm
Size (LxWxH) (With battery)	213x168x339mm	268x191.5x445mm	268x191.5x445mm
Weight	8.5Kg	12.5Kg	13.47Kg
Weight (With Cleaning Head & battery)	12Kg(With battery)	17Kg(With battery)	18.08Kg(With battery)

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Portable cordless laser cleaning solution for field and industrial maintenance.

Shipbuilding & Maintenance Industry

Marine structure dirt cleaning

Flexible cleaning for ship cabins, decks and weld seams in confined spaces.
Rail Transit Industry

Rail equipment rust removal

Efficient and safe rust cleaning for bogies, turnouts and overhead rail fittings.
Energy Facility Maintenance

Outdoor energy equipment decontamination

Stable long-endurance cleaning for wind power, photovoltaic and pipeline facilities.
Automotive & Machinery Manufacturing

Mechanical parts pre-treatment

Precision cleaning for auto parts and molds for pre-weld and refurbishment processing.

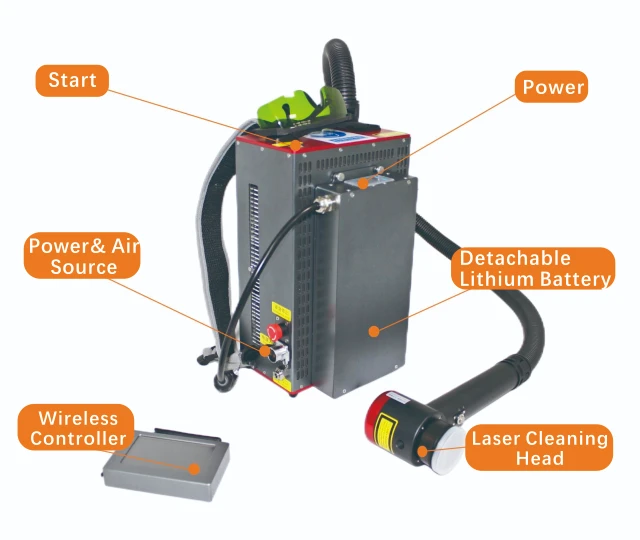

BACKPACK Laser cleaning Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple power options such as 60W, 100W and 200W are available. It adapts from fine stain removal to thick paint and heavy rust stripping.
Battery Configuration Customization

Custom high-capacity battery extends working endurance for long-time outdoor operations. Fast charging module can be upgraded to improve field working efficiency.
Cleaning Function Customization

Customize laser gun heads and flexible fiber lengths for curved and narrow workpieces. Optimized cleaning modes match different industrial maintenance scenarios.
