Suitcase Laser Cleaning Machine

40+ Years of Innovation

Product Overview

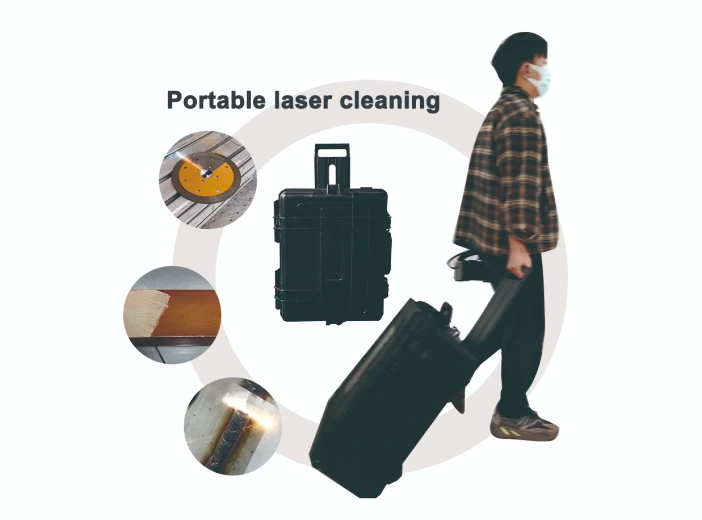

Suitcase Laser Cleaning Machine / ZG-HCM100/200/300

This Suitcase laser cleaning machine adopts an integrated pull-box portable structure, featuring compact size, easy movement and no installation required. Equipped with high-precision pulsed fiber laser source, it achieves non-contact cleaning of metal surface rust, oxide layers, paint peeling, oil stains and welding slag. Different from backpack models, it realizes zero-burden mobile operation through Suitcase movement. With no consumables, environmental protection and no damage to workpieces, it is widely used for mold maintenance, mechanical refurbishment, automotive and industrial equipment cleaning.

Suitcase Zero-Burden Movement

Effortless full-scene mobile cleaning.
Precision Non-Damage Cleaning

Safe cleaning for all metal workpieces.

Key Advantages

Why choose Suitcase Laser Cleaning Machine?

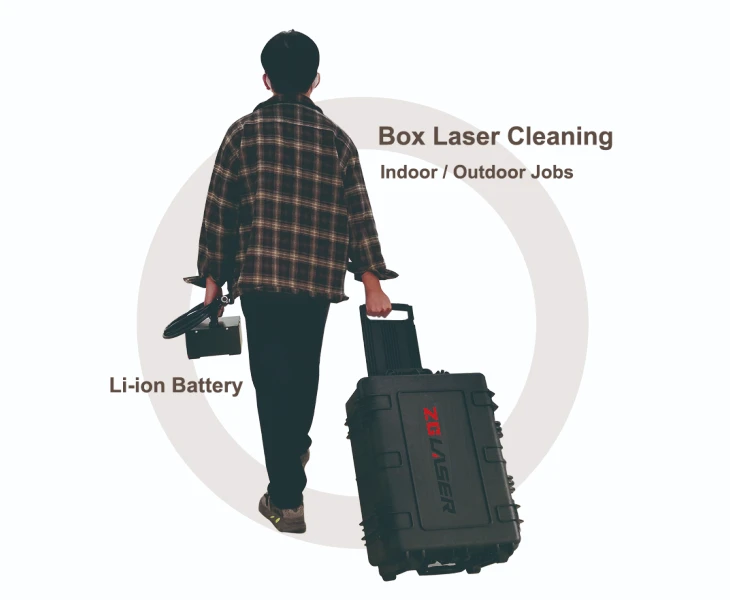

Integrated Suitcase Portable Design

All-in-one suitcase structure with universal wheels and pull rod. It requires no disassembly or installation, realizing free pushing and mobile operation with zero carrying burden.
Non-Destructive Laser Cleaning

Precise laser energy targets surface contaminants accurately. It removes rust, paint and oil stains thoroughly without scratching or deforming the metal substrate.
Compact & Space-Saving

Mini integrated structure saves storage and workshop space. It is more flexible than traditional large cleaning equipment and suitable for frequent site switching.
Eco-Friendly & Low Cost

Adopts pure laser physical cleaning with no chemical agents or consumables. Zero dust and pollution, effectively reducing long-term industrial cleaning costs.
High Cleaning Efficiency

Intelligent adjustable laser parameters adapt to different dirt layers. It replaces traditional manual polishing and sandblasting to greatly improve working efficiency.
Simple Operation & Wide Adaptability

One-key intelligent operation with low technical threshold. It meets daily cleaning and maintenance needs of molds, machinery and various metal parts.

TECHNICAL DATA

Technical Specifications

ZG-HCM100/200/300

Model	ZG‑HCM100	ZG‑HCM200	ZG‑HCM300
Power Supply	AC 220V±10%, 50/60Hz	AC 220V±10%, 50/60Hz	AC 220V±10%, 50/60Hz
Total Power Consumption	≤800W	≤1500W	≤1100W
Operating Temperature Range	5℃～40℃	5℃～40℃	5℃～40℃
Operating Humidity Range	≤80%	≤80%	≤80%
Average Laser Power	≥100W	≥200W	≥300W
Power Instability	＜5%	＜5%	＜5%
Laser Operating Mode	Pulse	Pulse	Pulse
Pulse Width	2-500ns	13-500ns	13-500ns
Maximum Single-Pulse Energy	1.5mJ	2mJ	2mJ
Power Adjustment Range (%)	0-100	0-100	0-100
Frequency Adjustment Range (kHz)	1-4000	1-3000	1-3000
Fibre Length	5m	5m	5m
Cooling Method	Air Cooled	Air Cooled	Air Cooled
Scanning Range (L*W)	0-100mm(F160) Dual‑axis with 9 scanning modes	0-145mm(F210) Dual‑axis with 9 scanning modes	0-145mm(F210) Dual‑axis with 9 scanning modes
Overall Dimensions (LWH)	617469291 mm	617469291 mm	617469291 mm
Packaged Dimensions (LWH)	760560480 mm	760560480 mm	760560480 mm
Unit Weight	28Kg	28Kg	29Kg
Packaged Weight	48.2Kg	48.2Kg	49Kg
Cleaning Head Weight (excluding optical head)	＜0.9Kg	＜0.9Kg	＜1.25Kg
Operating Mode	Handheld	Handheld	Handheld

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Zero-burden Suitcase cleaning solution for industrial mobile maintenance.

Mold Manufacturing Industry

Mold surface decontamination cleaning

Efficient cleaning of mold oil stains, oxide and residual welding slag without mold damage.
Automotive Manufacturing

Auto parts refurbishment cleaning

Precision removal of rust and old paint for automotive structural parts and accessories.
Mechanical Equipment Refurbishment

Old equipment renovation cleaning

Thorough cleaning of surface rust and dirt for various mechanical equipment refurbishment.
Hardware & Metal Processing

Metal workpiece pre-treatment

Ideal for pre-weld deoxidation and post-processing cleaning of hardware parts.

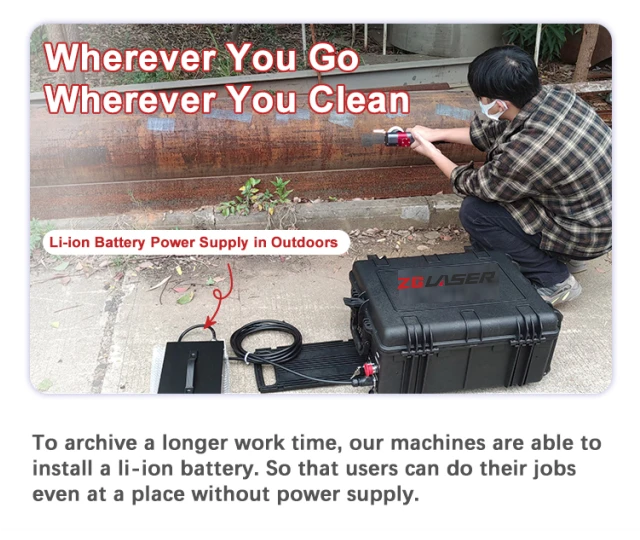

Suitcase Laser cleaning Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Optional 100W/200W/300W laser power for different cleaning scenarios. It adapts to fine oil stain removal and heavy rust & thick paint stripping.
Structure Configuration Customization

Custom Suitcase box size and wheel configuration for different moving environments. Optimized internal layout ensures stable operation during mobile transportation.
Cleaning Mode Customization

Support customized spot cleaning, scanning cleaning and fine polishing modes. It matches diversified cleaning requirements of different industrial workpieces.
