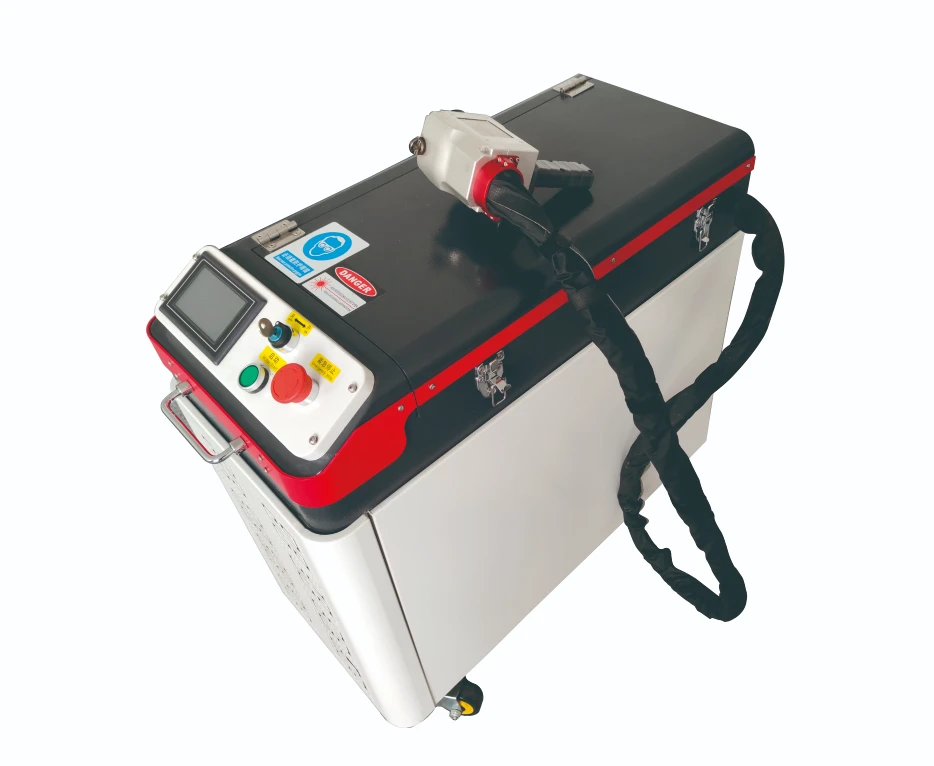

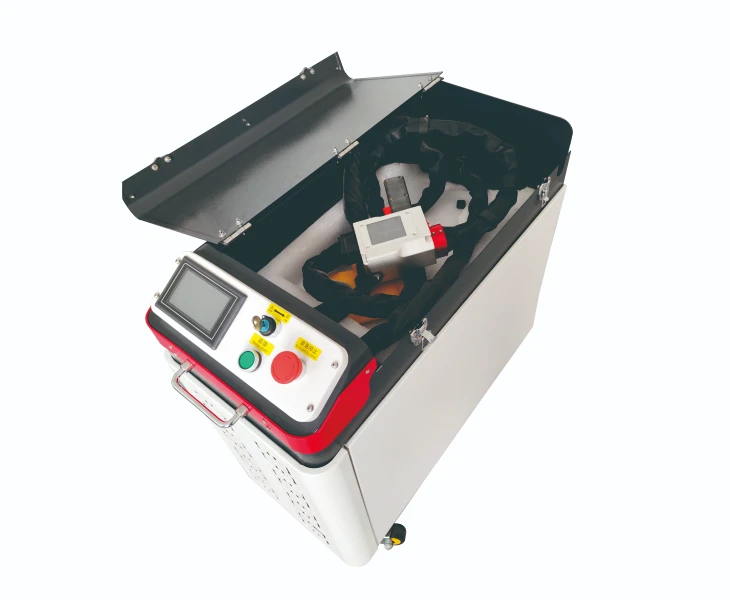

Mobile Cabinet Laser Cleaning Machine / ZGHCM100/200/300
This mobile cabinet laser cleaning machine adopts an integrated industrial cabinet structure with universal moving wheels, balancing overall stability and flexible mobility. Equipped with high-power pulsed fiber laser source, it performs non-contact precision cleaning to remove metal surface rust, oxide layers, old paint, oil stains and welding slag. Featuring stable operation, strong power, no consumables and no workpiece damage, it is specially designed for long-term continuous cleaning and maintenance in factory workshops, suitable for mass and high-frequency industrial cleaning scenarios.
-
Stable Cabinet Structure
Steady operation for long-time cleaning.
-
High-Power Industrial Cleaning
Efficient removal of heavy dirt layers.
Why choose Mobile Cabinet Laser Cleaning Machine?
-
Integrated Industrial Cabinet Design
Sturdy all-in-one cabinet frame ensures overall operational stability. Equipped with durable universal wheels, it supports flexible position adjustment for different workstation cleaning needs.
-
High-Efficiency Heavy-Duty Cleaning
Matched with high-power laser configuration, it easily strips thick rust, aged paint and stubborn oil stains. It delivers stronger cleaning capacity than portable models for heavy industrial dirt.
-
Non-Destructive Precision Processing
Accurate laser energy control achieves targeted decontamination. It thoroughly cleans surface impurities without scratching, thinning or damaging the base metal material.
-
Continuous Stable Operation
Professional heat dissipation and cabinet protection structure support long-hour uninterrupted work. It perfectly adapts to high-frequency and batch cleaning tasks in factory workshops.
-
Eco-Friendly & Cost-Effective
Pure laser physical cleaning requires no chemical reagents or auxiliary consumables. Zero pollution and low failure rate greatly reduce long-term production and maintenance costs.
-
Wide Industrial Compatibility
Flexible parameter adjustment meets diverse cleaning demands. It covers mold maintenance, mechanical refurbishment, weld cleaning and metal surface pretreatment.
Technical Specifications
| Item | ZG‑HCM100 | ZG‑HCM200 | ZG‑HCM300 |
| Power Consumption | ≤800W | ≤1500W | ≤4000W |
| Ambient Temperature | 5°C~40°C | 5°C~40°C | 5°C~40°C |
| Ambient Humidity | ≤80% | ≤80% | ≤80% |
| Average Laser Power | ≥100W | ≥200W | ≥300W |
| Power Instability | ＜5% | ＜5% | ＜5% |
| Laser Working Mode | Pulse | Pulse | Pulse |
| Pulse Width | 2‑500ns | 2‑500ns | 2‑500ns |
| Max Single Pulse Energy | 1.5mJ | 2mJ | 2mJ |
| Power Range (%) | 0‑100 | 0‑100 | 0‑100 |
| Adjustable frequency range | 1‑4000Khz | 1‑4000Khz | 1‑4000Khz |
| Fiber Length | 5m | 5m | 5m |
| Cooling Mode | Air | Air | Air |
| Scanning Range (L*W) | 0‑100mm(F160) Dual‑axis with 9 scanning modes | 0‑145mm(F210) Dual‑axis with 9 scanning modes | 0‑145mm(F210) Dual‑axis with 9 scanning modes |
| PARAMETER | ZG-T6020 | ZG-T9025 | ZG-T12035 |
|---|---|---|---|
| Laser Power | 1.5 – 4 kW | 2 – 6 kW | 3 – 6 kW |
| Max Tube Length | 6,000 mm | 9,000 mm | 12,000 mm |
| Max Round Tube Diameter | Ø20 – Ø200 mm | Ø20 – Ø250 mm | Ø20 – Ø350 mm |
| Max Square Tube Size | 150 × 150 mm | 200 × 200 mm | 250 × 250 mm |
| Positioning Accuracy | ±0.03 mm | ±0.03 mm | ±0.03 mm |
| Repeat Accuracy | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Max Cutting Speed | 100 m/min | 120 m/min | 120 m/min |
| Rapid Traverse Speed | 80 m/min | 100 m/min | 100 m/min |
| Chuck Type | Pneumatic 3+3 | Pneumatic 4-chuck | Pneumatic 4-chuck |
| Max Tube Weight | 80 kg/m | 120 kg/m | 150 kg/m |
| CNC System | ZG TubePro™ | ZG TubePro™ | ZG TubePro™ |
| Total Power | 15 kW | 22 kW | 30 kW |
| Machine Weight | 4,500 kg | 6,200 kg | 8,800 kg |
| Equipment Model | ZG-500F | ZG-1000F | ZG-1500F | ZG-2000F |
|---|---|---|---|---|
| Polarization | Random | Random | Random | Random |
| Center wavelength | 1080mm | 1080mm | 1080mm | 1080mm |
| Bandwidth | <6nm | <10nm | <10nm | <10nm |
| Maximum modulation frequency | 10kHz | 10kHz | 10kHz | 10kHz |
| Average output power | 500W±15W | 1000W±20W | 1500W±20W | 2000W±25W |
| Power adjustment range | 10%-100% | 10%-100% | 10%-100% | 10%-100% |
| Power stability | ±2% (>100h) | ±2% (>100h) | ±2% (>100h) | ±2% (>100h) |
| Beam quality | M²<1.3 | M²<1.3 | M²<1.3 | M²<1.3 |
| Optical output interface | QBH | QBH | QBH | QBH |
| Maximum power consumption | 2000W | 3500W | 5500W | 7500W |
| Cooling method | Water cooling | Water cooling | Water cooling | Water cooling |
| Output fiber length | 10m or 15m | 15m | 15m | 15m |
| Input/output interface | DB25/RS232 | DB25/RS232 | DB25/RS232 | DB25/RS232 |
| Operating temperature | 0°C-40°C | 0°C-40°C | 0°C-40°C | 0°C-40°C |
* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.
Main Application Industries
Stable cabinet-type solution for factory batch industrial cleaning.
-
Mold Manufacturing IndustryMold daily maintenance cleaningEfficiently remove mold oil stains, oxide layers and welding slag for long-term mold protection.
-
Automotive ManufacturingAuto parts pretreatment & refurbishmentStable removal of rust, paint and dirt for automotive structural components and accessories.
-
Mechanical Equipment RefurbishmentIndustrial equipment renovation cleaningThorough cleaning of surface rust and dirt for various mechanical equipment upgrades.
-
Hardware & Metal ProcessingMetal workpieces pre-weld treatmentPrecision deoxidation and cleaning for hardware parts before welding and assembly.
Customizable to Your Production Needs
-
Laser Power Customization
Multiple power configurations from 100W to 500W are optional for diverse cleaning demands. It adapts to fine decontamination and heavy-duty thick rust and paint removal scenarios.
-

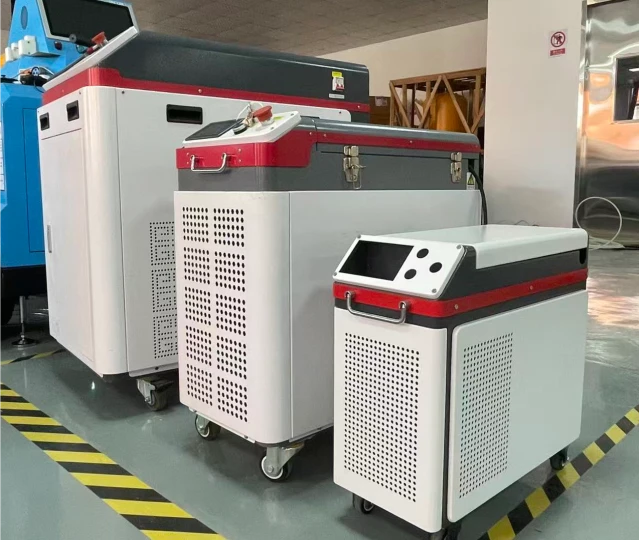

Cabinet Structure Customization
Customize cabinet size, heat dissipation system and moving wheel specifications. It meets fixed-station placement and frequent mobile adjustment in different workshops.
-
Cleaning Function Customization
Upgrade intelligent scanning, fixed-point cleaning and adjustable frequency modes. It optimizes cleaning efficiency for batch and standardized industrial production.

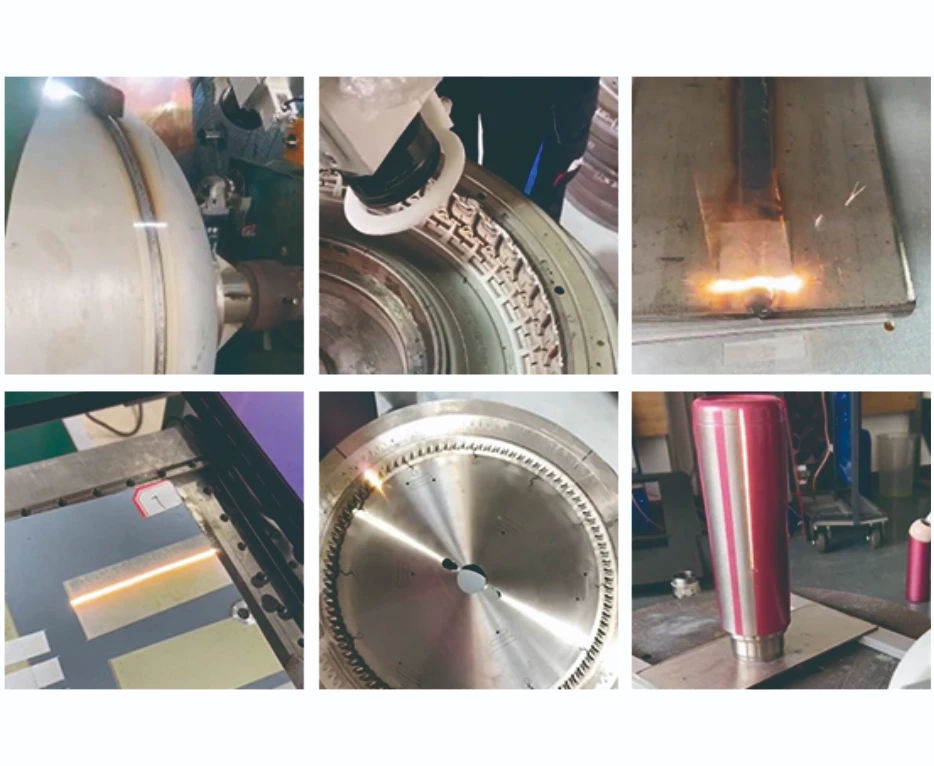

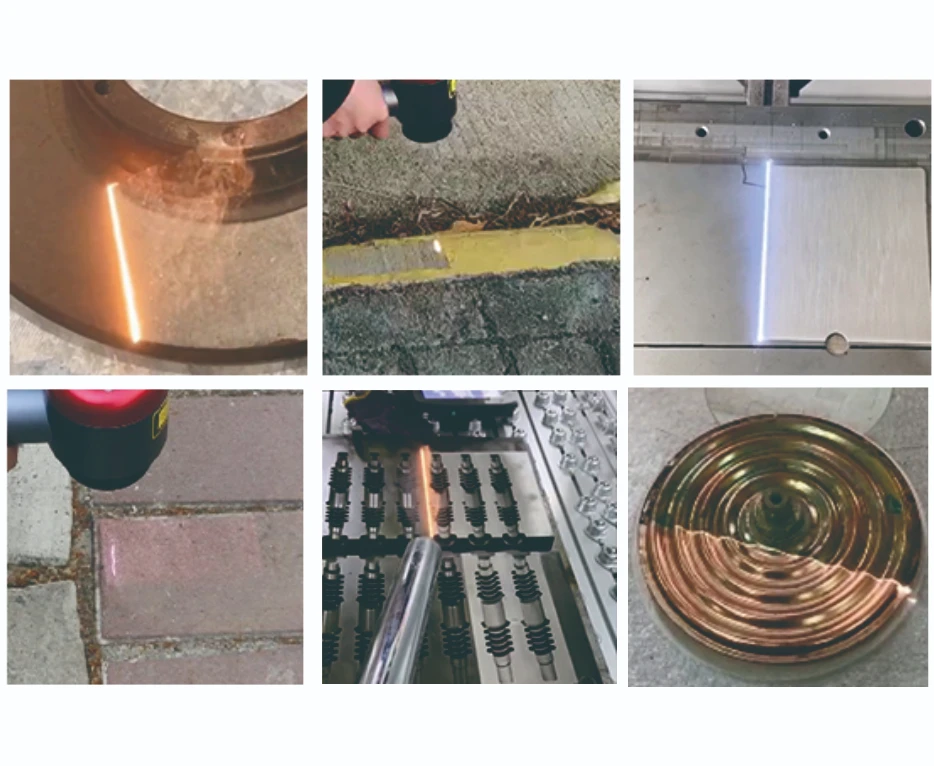

See It In Action
