Product Overview

Continuous Laser Cleaning Machine / Custom Model

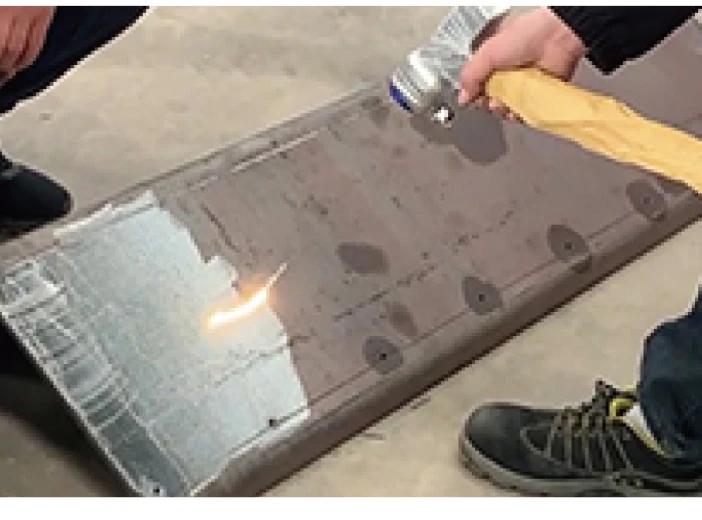

This continuous laser cleaning machine adopts continuous fiber laser output technology, featuring stable energy, high flatness and ultra-high cleaning efficiency. Different from pulsed laser cleaners, it realizes large-area continuous cleaning, perfectly removing surface paint layers, oxidation films, old coatings and uniform dirt on flat metal workpieces. With non-contact, non-damage and consumable-free performance, it is widely used for batch pretreatment, workpiece refurbishment and large-scale surface cleaning in industrial manufacturing.

Steady Continuous Laser Output

Uniform & consistent cleaning effect.
Large-Area High-Speed Cleaning

Perfect for batch flat workpiece processing.

Key Advantages

Why choose Continuous Laser Cleaning Machine?

Stable Continuous Laser Output

Continuous laser energy provides uniform and stable heat distribution. It ensures consistent cleaning effect without color difference or uneven residue on large surfaces.
Ultra-High Batch Cleaning Efficiency

Continuous scanning mode greatly improves coverage speed. It is specially optimized for large flat plates and mass production cleaning tasks.
Smooth & Uniform Surface Effect

Steady energy output removes paint and oxide layers evenly. The cleaned workpiece surface is flat and smooth without secondary polishing.
Non-Destructive Cleaning Performance

Precise energy control strips surface dirt only. It causes no damage, pitting or thermal deformation to the base metal material.
Eco-Friendly & Zero Consumables

Adopts pure physical laser cleaning without chemical agents or sand materials. It realizes dust-free, pollution-free and green industrial production.
Long-Term Stable Operation

Optimized laser and heat dissipation system supports long-hour continuous working. It meets high-intensity batch cleaning requirements of modern factories.

TECHNICAL DATA

Technical Specifications

Custom Model

Model	ZG-HC1000	ZG-HC1500	ZG-HC2000	ZG-HC3000
Polarization	Random	Random	Random	Random
Center wavelength	1080nm	1080nm	1080nm	1080nm
Bandwidth	<6nm	<6nm	<6nm	<6nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	1000W±15W	1500W±15W	2000W±15W	3000W±15W
Power adjustment range	10%–100%	10%–100%	10%–100%	10%–100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Operating Voltage	220V/AC	220V/AC	220V/AC	380V/AC
Maximum power consumption	3500W	5500W	7500W	15000W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	10m or 15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C–40°C	0°C–40°C	0°C–40°C	0°C–40°C
Scanning Range (L*W)	0–300mm	0–300mm	0–300mm	0–300mm
Size (L×W×H)	1055×620×1090mm	1055×620×1090mm	1106×644×1165mm	1106×644×1165mm
Weight	190Kg	230Kg	240Kg	260Kg
Cleaning Head	≤1.2Kg	≤1.2Kg	≤1.2Kg	≤1.2Kg

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

High-efficiency continuous cleaning solution for large-area industrial workpieces.

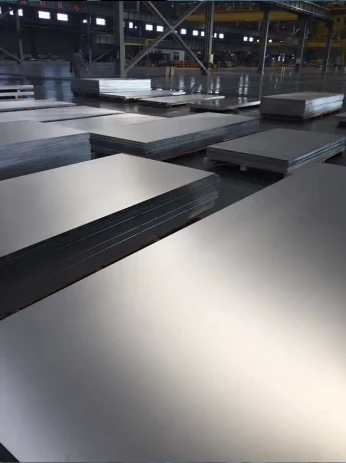

Sheet Metal Manufacturing

Flat sheet metal surface cleaning

Continuous removal of oxidation and rust for large metal sheet workpieces.
Automotive Refurbishment

Auto surface paint & oxide stripping

Uniform large-area cleaning for automotive shells and structural parts.

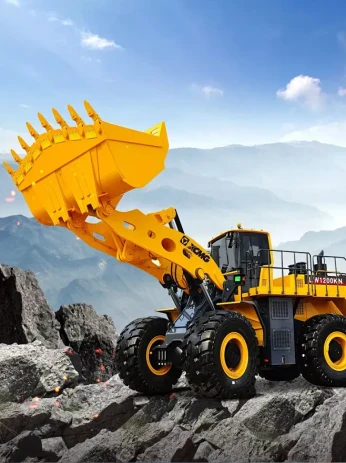

Engineering Machinery Industry

Large equipment renovation

Efficient cleaning of thick oxide and old paint on mechanical equipment surfaces.

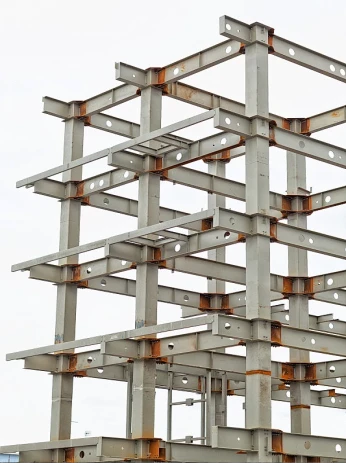

Metal Structure Engineering

Structural steel surface pretreatment

Continuous cleaning for steel structures before welding and anti-corrosion treatment.

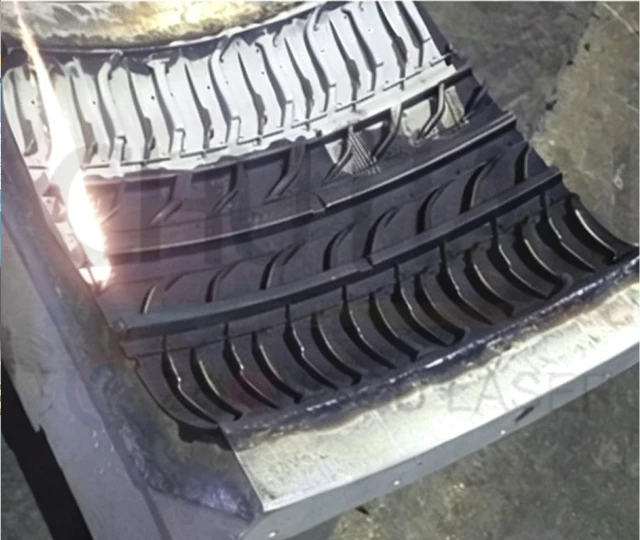

Continuous Wave Laser Cleaning Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple continuous laser power options match different paint thicknesses and oxidation degrees. It balances cleaning speed and surface flatness perfectly.
Scanning Range Customization

Customize continuous scanning width and frequency for large-area workpieces. It improves overall coverage efficiency for batch production.
Automatic Matching Customization

Support assembly line docking and automatic cleaning mode upgrade. It realizes integrated intelligent cleaning for standardized industrial production.
