Product Overview

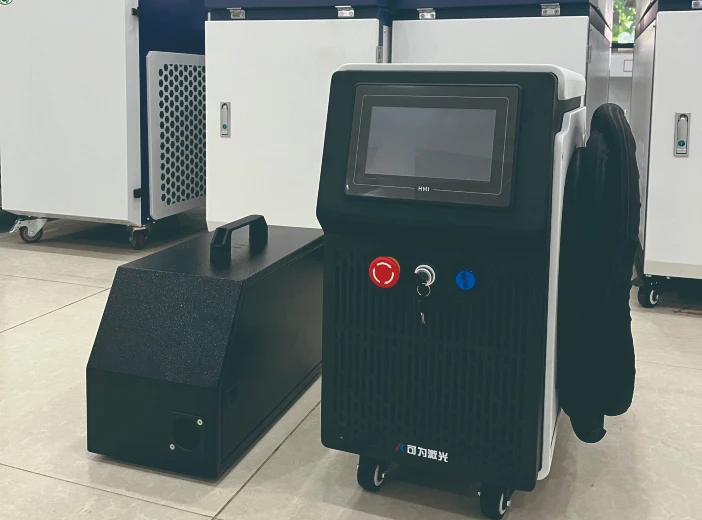

Handheld Laser Welding Machine / ZG-HW2000

This handheld laser welding machine is the most versatile and cost-effective welding equipment for modern metal manufacturing. Featuring high efficiency, excellent beam quality, flexible fiber output and maintenance-free performance, it breaks the limitation of traditional fixed welding equipment. The portable handheld welding head enables flexible operation for flat plates, curved surfaces and special-shaped workpieces. It produces smooth, firm weld joints with low thermal deformation, reducing polishing procedures. Suitable for multi-industry small-batch, customized and on-site welding production.

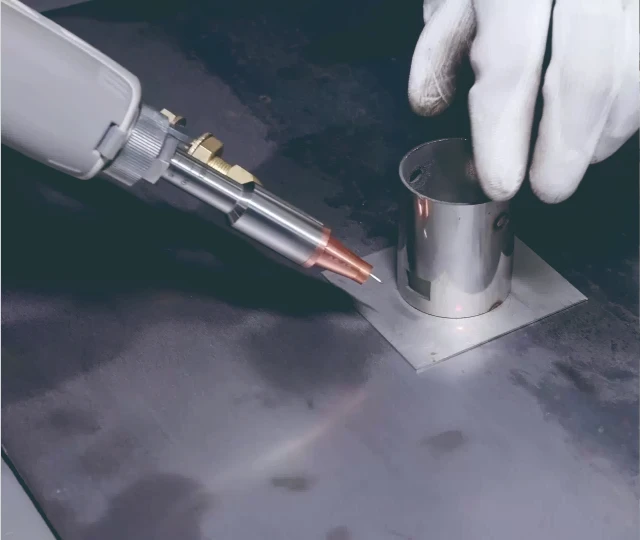

Flexible Handheld Operation

Free multi-angle flexible welding.

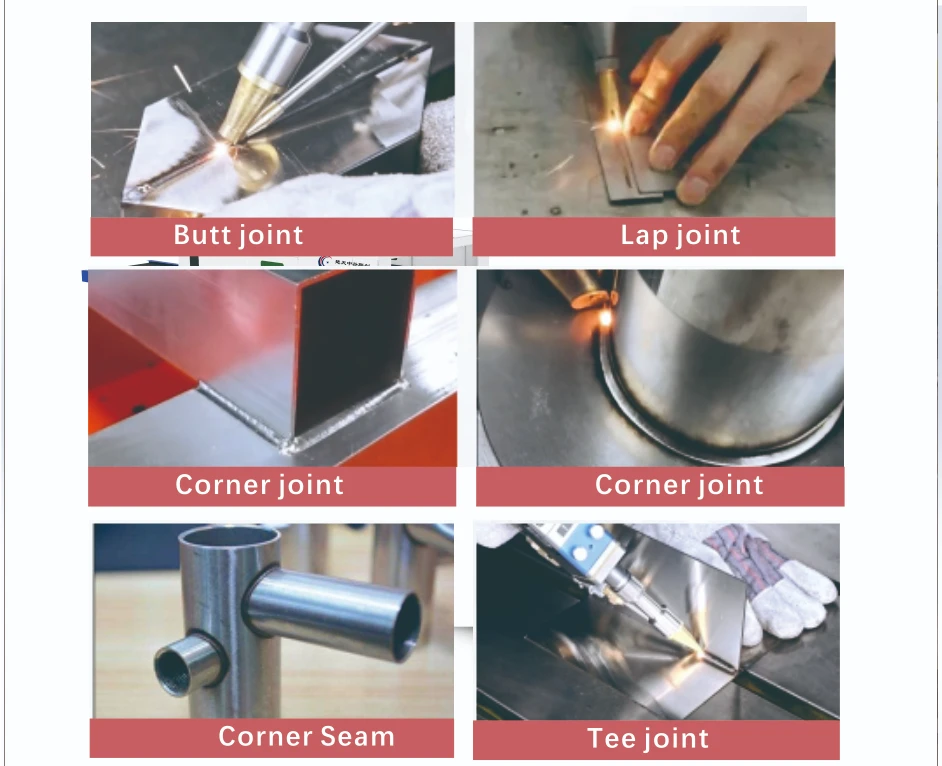

High-Quality Welding Effect

Low deformation with smooth welds.

Key Advantages

Why choose Handheld Laser Welding Machine?

Ultra-Flexible Handheld Operation

Portable welding head supports multi-angle, dead-angle-free welding. It adapts to curved, irregular and large workpieces that fixed machines cannot process.
Excellent Welding Quality

Concentrated laser beam ensures small heat-affected zone and minimal thermal deformation. Weld seams are flat, firm and beautiful with low defect rate.
High Production Efficiency

Welding speed is several times faster than traditional argon arc welding. It greatly shortens production cycle and improves factory output capacity.
Wide Material Adaptability

Compatible with stainless steel, carbon steel, aluminum, copper and alloy metals. It meets diversified welding demands of various industrial products.
Easy Operation & Low Cost

Simple intelligent operation requires no professional welding skills. It saves labor training cost and greatly reduces post-polishing workload.
Maintenance-Free Stability

Mature fiber laser structure features stable performance and low failure rate. Long-term operation requires minimal maintenance, saving enterprise operating costs.

TECHNICAL DATA

Technical Specifications

ZG‑HW1200/1500/2000

Items	ZG‑HW1200 / ZG‑HW1500 / ZG‑HW2000
Models	Handheld Continuous Laser Welding Machine
Fiber Source	1200W / 1500W / 2000W
Laser wavelength	1064nm
Beam quality	M²≤1.3
Fiber length	5–10m

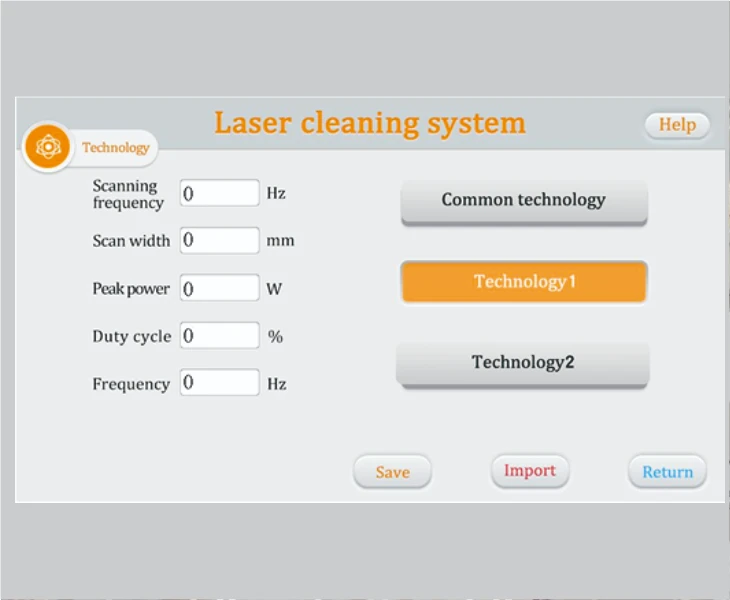

Scanning width	0.5–6mm(Welding), 10–150mm(Cleaning)
Work patterns	Continuous
Cooling method	Air cooling
Cooling water temp	5–45°C
Laser Energy Stability	<2%
Air humidity	10–70%

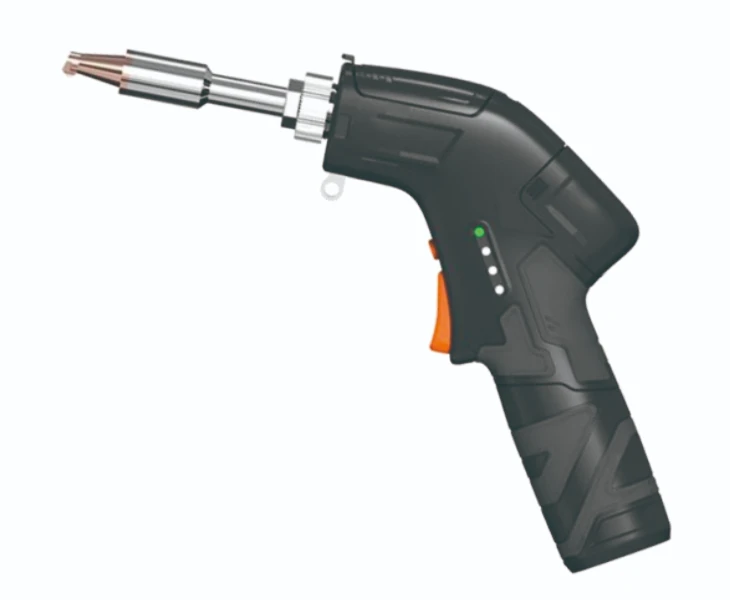

Welding head	Gefasst laser head

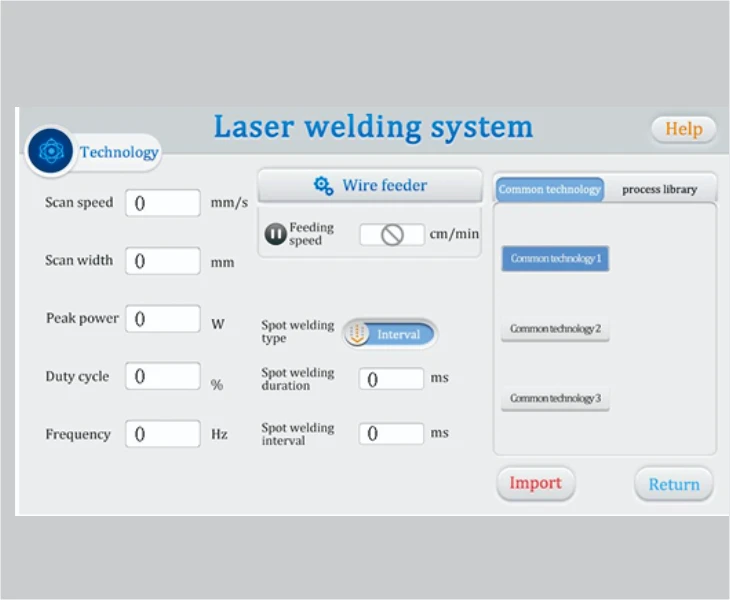

Controller	Touch panel Gefasst control system
Welding speed	0–120mm/s
Welding material thickness	≤5mm (steel)

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Flexible portable welding solution for universal industrial metal processing.

Automotive Industry

Auto parts precision welding

Ideal for auto parts welding with low deformation and high weld strength.
New Energy Industry

Energy storage & battery component welding

Precision welding for new energy and battery components with high yield rate.
Hardware & Home Appliance Industry

Hardware & appliance batch welding

Smooth welding for hardware and kitchenware, perfect for mass production.
Construction Machinery Industry

Engineering structural parts welding

Flexible welding for complex and special-shaped mechanical components.

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple laser power options are available for different metal materials and thicknesses. It balances welding speed, penetration and surface finish for diverse processing needs.
Welding Mode Customization

Optional spot welding, continuous welding and swing welding modes for different workpieces. It freely switches to meet fine welding and batch welding requirements.
Accessory Customization

Customize wire feeder, protective cover and specialized industry fixtures. It improves operation safety and adapts to various complex working conditions.
