Enclosed Precision Laser Welding Workstation for Small Parts

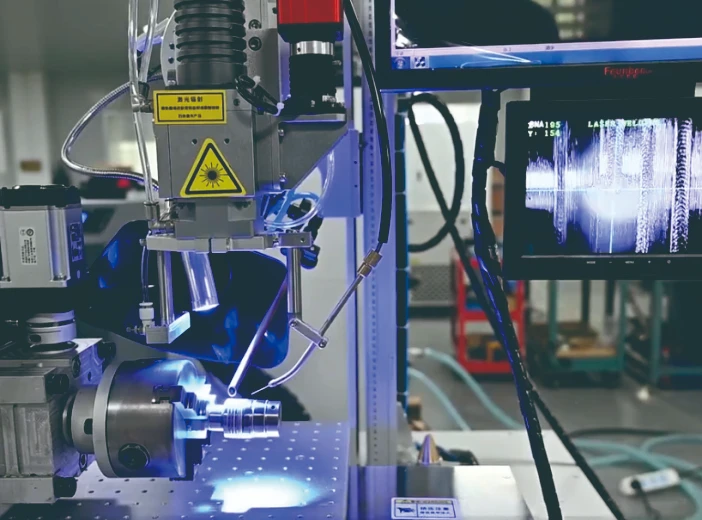

Laser Welding Machine with Full Enclosure Workbench

40+ Years of Innovation

Product Overview

Enclosed Protective Laser Welding Machine / Custom Model

This enclosed protective laser welding machine retains four core advantages of high efficiency, excellent beam quality, flexible fiber output and maintenance-free performance. Equipped with a fully enclosed protective housing, it effectively isolates laser radiation, welding smoke and noise. It ensures operator safety and meets environmental protection production standards. With stable welding performance and low thermal deformation, it is perfectly suitable for precision welding tasks in clean workshops, covering automotive, new energy, hardware and construction machinery industries.

Fully Enclosed Protection

Safe & Eco-Friendly welding environment.
High Precision Welding

Smooth welds with tiny deformation.

Key Advantages

Why choose Enclosed Protective Laser Welding Machine?

Full Safety Protection Design

Adopts fully enclosed protective cover to block laser radiation, smoke and noise. It protects operators and complies with industrial safety production specifications.
Excellent Beam Quality

Concentrated laser beam forms flat, firm and flawless welding joints. It reduces defect rate and meets high-standard precision processing requirements.
High Electro-optic Conversion Efficiency

Optimized laser generator improves energy utilization efficiency. It cuts power consumption and lowers long-term operating costs for enterprises.
Clean & Eco-Friendly Processing

Enclosed structure collects welding smoke and dust internally. It maintains clean workshop environment and meets environmental protection inspection standards.
Flexible Fiber Transmission

Reliable fiber delivery breaks space limitations for diverse workpieces. It adapts to small precision parts and medium-sized structural components flexibly.
Low Maintenance Cost

Sealed and dustproof internal structure reduces component contamination. It realizes stable long-term operation with simple maintenance and low failure rate.

TECHNICAL DATA

Technical Specifications

Custom Model

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Safe enclosed welding solution for high-standard industrial manufacturing.

AUTOMOTIVE INDUSTRY

Auto Precision Parts Welding

Automatic welding for auto parts with low deformation and high weld strength.
NEW ENERGY INDUSTRY

Battery Energy Storage Component Welding

Precision welding for new energy and battery components with high yield rate.
HARDWARE & HOME APPLIANCE INDUSTRY

Hardware Household Appliance Batch Welding

Mass welding for hardware and household appliance parts with beautiful molding.
CONSTRUCTION MACHINERY INDUSTRY

Mechanical Structural Parts Welding

Stable welding for engineering machinery and special-shaped metal components.

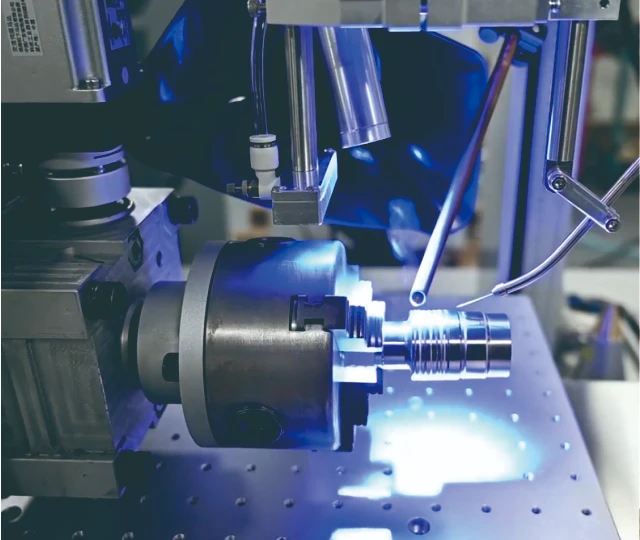

Full Enclosure Laser Welding Machine Customized

Machine Configuration

Customizable to Your Production Needs

Protective Housing Customization

Customize fully enclosed shells with transparent observation windows for real-time monitoring. Different sealing grades are optional to adapt to various environmental protection workshop standards.
Laser Power Customization

Multiple laser power options match diverse metal materials and plate thicknesses. It balances welding speed and seam quality to meet different precision processing demands.
Auxiliary System Customization

Optional built-in dust removal and smoke purification system for cleaner production. It can be equipped with customized fixtures to improve batch welding stability and efficiency.
