Product Overview

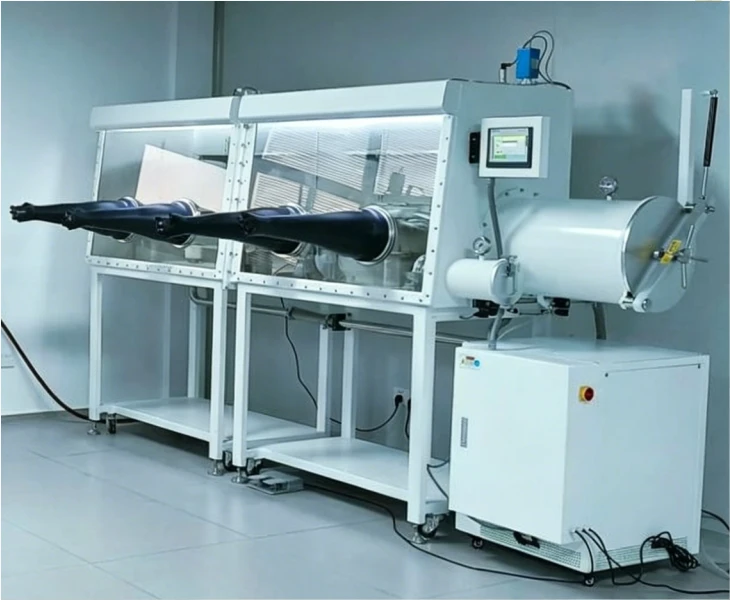

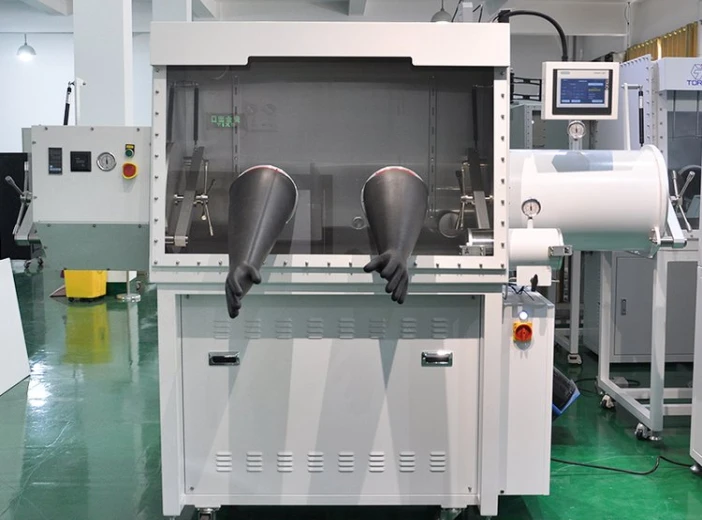

Glove Box Laser Welding Machine / Custom Model

This glove box laser welding machine, with the core advantages of high efficiency, precision and maintenance-free performance, is equipped with a special sealed glove box structure. It effectively isolates external dust and impurities, preventing sparks and smoke diffusion during the welding process. Featuring smooth welding joints, simple operation and excellent airtight performance, it is specially designed for precision welding of small and medium-sized workpieces. It is widely applied in electronics, new energy, precision instruments and medical equipment industries, perfectly realizing clean, sterile and pollution-free industrial welding.

Sealed Glove Box Design

Dust-free clean enclosed welding.
High-Precision Welding

Sterile processing for tiny components.

Key Advantages

Why Choose Glove Box Laser Welding Machine?

Airtight Glove Box Structure

Professional fully sealed glove box isolates dust, moisture and impurities. It creates an internal high-purity environment to avoid oxidation and contamination of precision workpieces.
High Precision Welding Quality

Stable laser beam produces flat, firm and flawless welding seams. It meets ultra-high precision requirements for electronic, medical and battery components.
Safe & Eco-Friendly Processing

Enclosed space prevents sparks, smoke and harmful gas diffusion. It guarantees operator safety and complies with industrial environmental protection standards.
High Production Efficiency

Optimized laser output realizes fast and stable welding procedures. It shortens production cycles and improves mass production capacity for precision parts.
Convenient Manual Operation

Humanized glove operation design ensures flexible internal workpiece handling. Observation window enables real-time monitoring of the welding status.
Maintenance-Free Stable Performance

Mature integrated structure reduces daily failure rate. Simple maintenance lowers long-term operating costs for high-standard production workshops.

TECHNICAL DATA

Technical Specifications

Custom Model

Equipment Model	Custom Model
Laser	YAG/QCW
Average laser power	150W、300W、500W
Maximum laser pulse energy	8KW、10KW
Pulse Width	0.2ms–50ms
Frequency	1Hz–100Hz
Welding spot diameter	0.3mm, 0.45mm, 0.6mm
Aiming and positioning method	CCD Monitoring system
Adjustable range of spot size	300mm × 300mm
Cover and shell positioning resolution	25μm
Table positioning accuracy	±10μm
Glove box oxygen content	≤10ppm (empty box)
Limit pressure of vacuum oven	≤10Pa
Vacuum oven temperature	50°C~200°C

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Airtight clean welding solution for high-precision sterile components.

ELECTRONIC COMPONENT INDUSTRY

Pollution-Free Electronic Parts Welding

Closed welding in glove box to protect precision electronic components from pollution.
NEW ENERGY BATTERY INDUSTRY

Sealed Battery Component Welding

Sealed welding for battery tabs and casings, anti-dust interference.

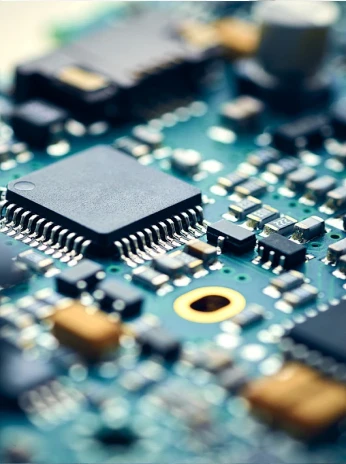

PRECISION INSTRUMENT INDUSTRY

High-Standard Instrument Welding

Clean welding to meet the high-precision welding needs of instrument parts.
MEDICAL EQUIPMENT INDUSTRY

Sterile Medical Parts Processing

Sterile and clean welding for precision medical accessory processing.

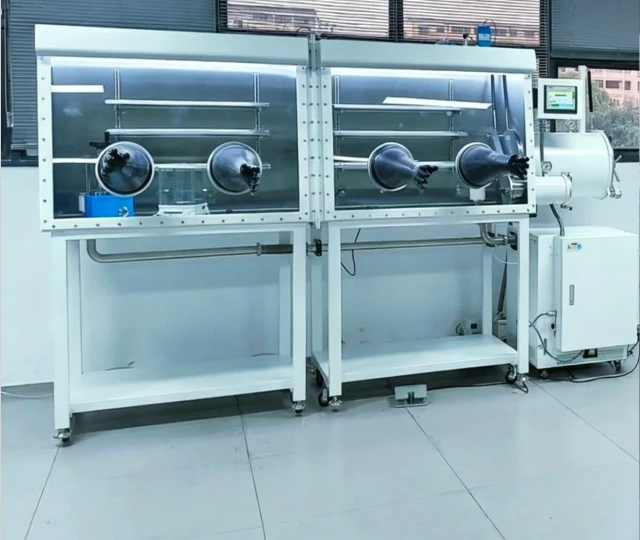

Glove Box Laser Welding Machine Customized

Machine Configuration

Customizable to Your Production Needs

Glove Box Environment Customization

Customize internal gas purification and constant humidity system for strict welding standards. Maintain high-purity inert atmosphere to prevent workpiece oxidation and contamination.
Laser Power Customization

Multiple laser power options adapt to ultra-thin and precision metal materials. It achieves tiny solder joints and minimal thermal deformation for delicate components.
Internal Fixture Customization

Custom anti-corrosion precision fixtures for electronic and medical workpieces. Ensure stable clamping and repeatable positioning in sealed sterile environment.
