Fully Automatic Tube Laser Cutting Machine

Automatic Tube Fiber Laser Cutting Machine

40+ Years of Innovation

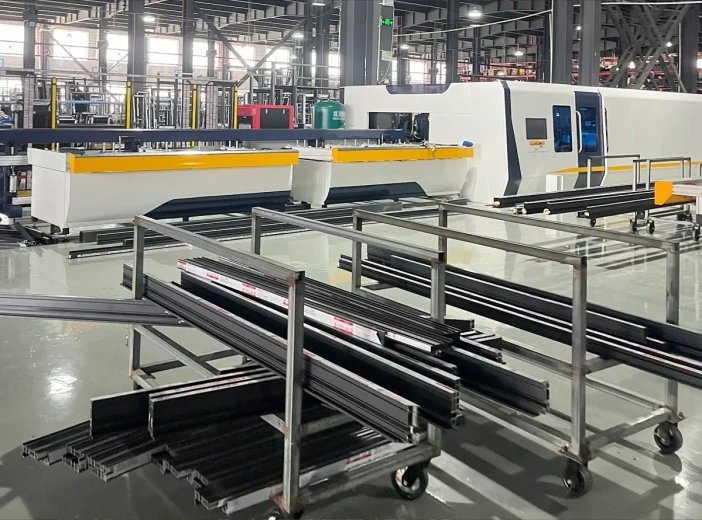

Product Overview

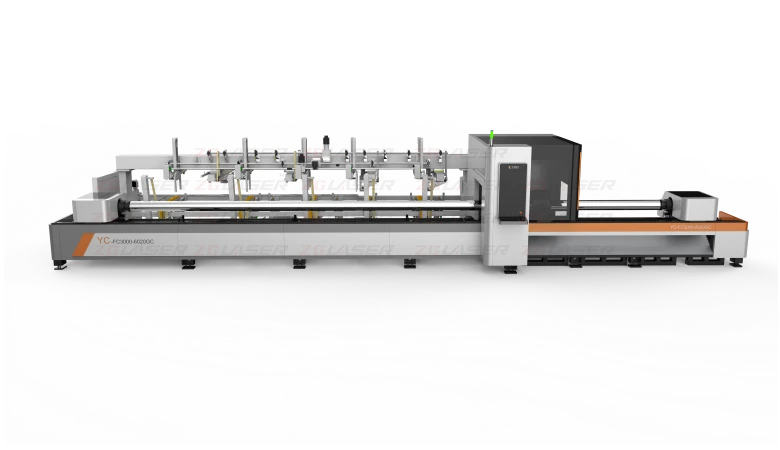

Automatic Laser Pipe Cutting Machine / ZG-FC-3000-6020GC

This automatic fiber laser pipe cutting machine is specially designed for high-volume metal tube and profile processing. Equipped with an automatic feeding system, it supports high-speed and high-precision cutting of round, square, rectangular and special-shaped tubes. With optional 1000W-15000W fiber laser power, it delivers stable and efficient cutting quality, perfectly suited for mass production of pipe parts in various industrial fields.

Full Automatic Feeding System

Uninterrupted mass pipe production
Multi-Profile Compatibility

Cuts all standard and special-shaped tubes

Key Advantages

Why choose Automatic Tube Fiber Laser Cutting Machine?

Engineered with six core advantages that set it apart from conventional tube cutting solutions, delivering superior performance across every metric that matters.

Automatic Unmanned Operation

Built with a fully automatic feeding structure to realize continuous pipe loading and cutting. It reduces manual intervention and greatly improves overall production efficiency for batch orders.

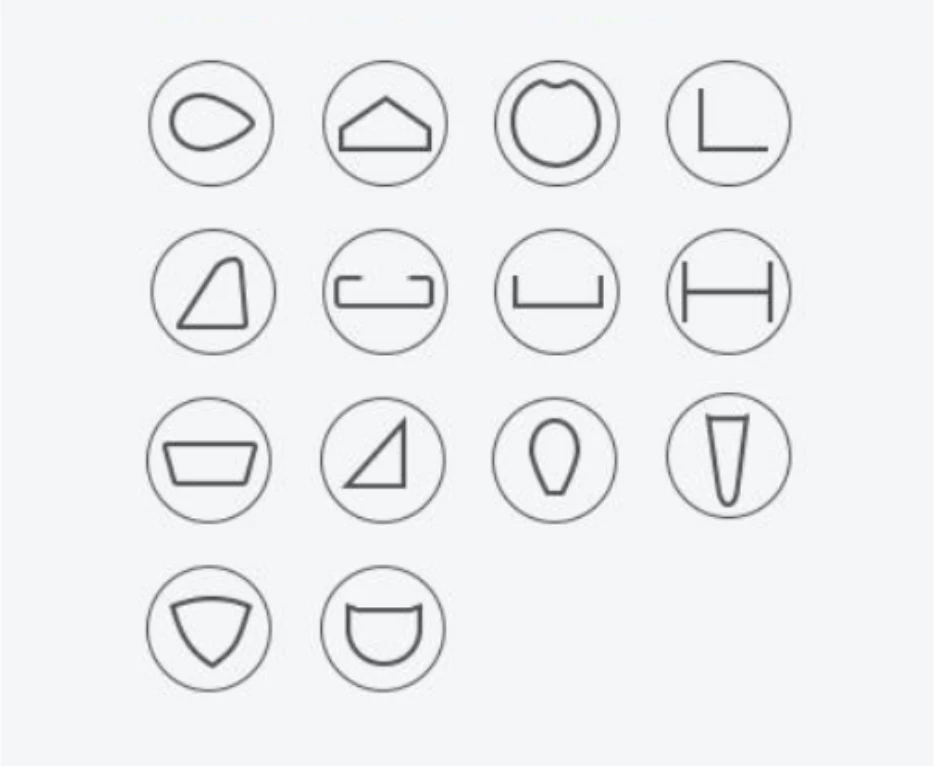

Multi-Tube Profile Adaptability

Compatible with round, square, rectangular and irregular special-shaped metal tubes. It covers most pipe processing specifications for industrial manufacturing.
Wide Laser Power Range

Optional fiber laser power from 1000W to 15000W adapts to different pipe thicknesses. It balances fast cutting speed and smooth cutting edge quality for diverse materials.
High-Precision Pipe Processing

Advanced laser control system ensures accurate sizing and neat incision. It avoids burrs and secondary polishing, guaranteeing consistent finished product quality.
High-Volume Production Capacity

Optimized cutting process and automatic cycle operation shorten production cycles. It perfectly meets large-batch and long-term continuous production demands.
Low Labor & Operation Cost

Intelligent automatic feeding minimizes labor reliance and operating errors. It effectively lowers long-term labor and production costs for enterprises.

TECHNICAL DATA

Technical Specifications

ZG-FC-3000-6020GC

Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min

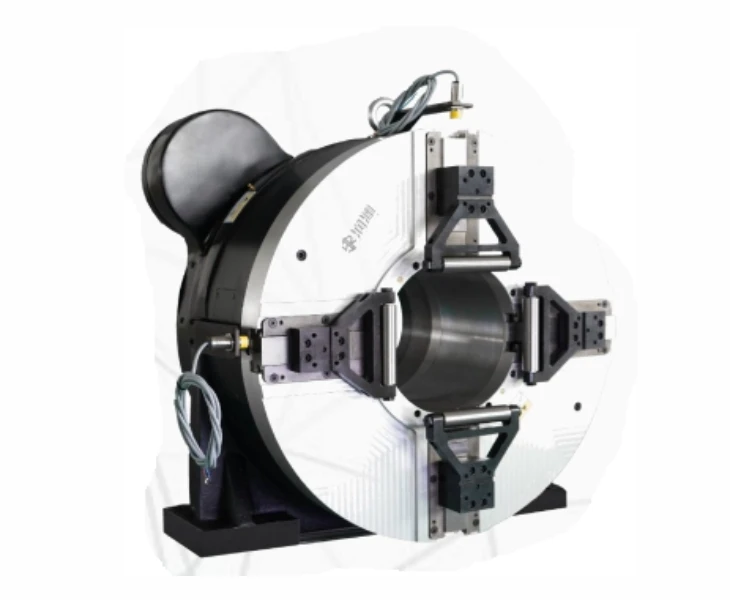

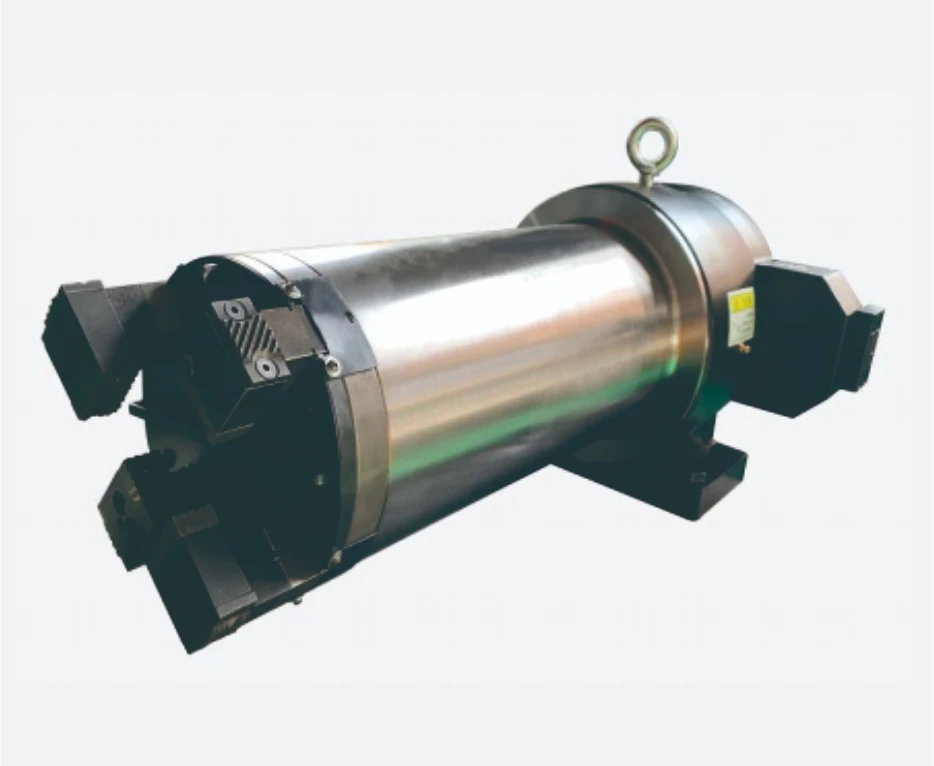

Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Professional automatic laser cutting solution for industrial pipe and profile mass production.

Fitness Equipment Manufacturing

Fitness frame and support pipe cutting

It delivers high-precision cutting for steel pipes used in fitness equipment frames and supports.
Automotive Exhaust & Chassis

Auto pipe and exhaust component processing

It realizes precise cutting and forming for automotive chassis and exhaust system pipe parts.
Steel Structure Construction

Building steel structure pipe fabrication

It provides efficient and stable pipe cutting for architectural steel structures and support components.

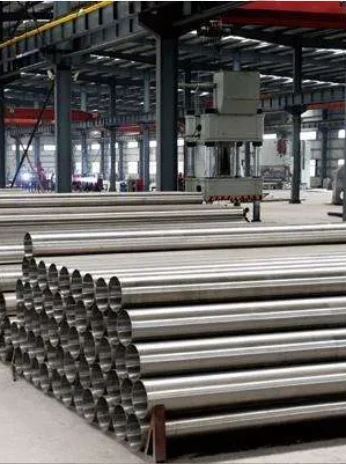

Pipeline & Pipe Fittings Industry

Industrial pipe and connector processing

It achieves high-quality cutting for various industrial pipeline tubes and pipe fitting accessories.

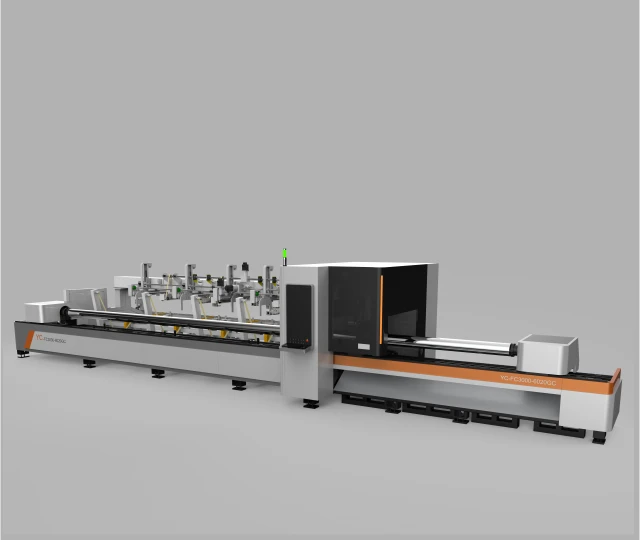

Automatic Tube Fiber Laser Cutting Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple laser power options from 1000W to 15000W are available for different pipe thicknesses and metal materials. It ensures optimal cutting speed and flawless cutting finish for diversified processing requirements.
Pipe Specification Customization

We customize fixture and feeding structures to match different pipe diameters and profile types. It adapts to round, square and special-shaped tube processing of various specifications.
Automatic System Customization

Upgradable intelligent feeding and sorting systems support fully unmanned production. It can be docked with automated production lines to improve overall workshop intelligence level.
