Standard Tube Fiber Laser Cutting Machine

40+ Years of Innovation

Product Overview

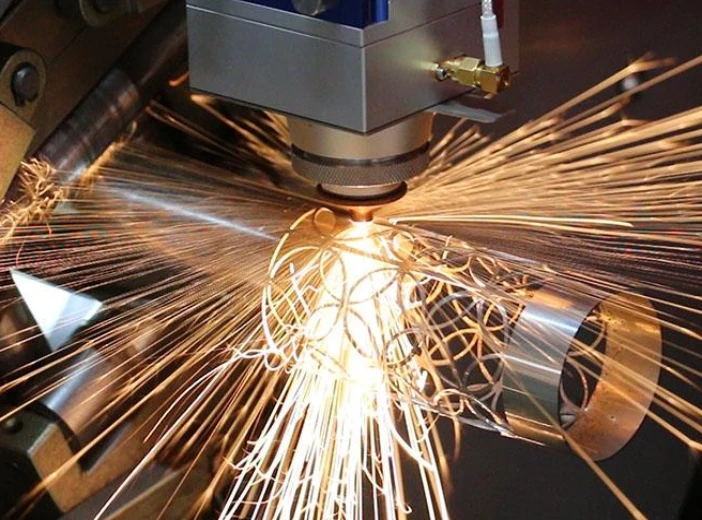

Standard Tube Fiber Laser Cutting Machine ZG-FC6000-6020GC

This standard laser tube cutting machine is designed for conventional metal pipe processing. It is compatible with round, square, rectangular and special-shaped tubes of carbon steel, stainless steel and alloy materials. With simple manual loading, stable cutting performance and low operating cost, it is ideal for small and medium batch production in multiple pipe processing industries.

Wide Tube Compatibility

Covers common tube profile cutting.
Economical & Practical

Low cost with stable performance.

Key Advantages

Why choose Standard Tube Fiber Laser Cutting Machine?

Economical Cost Performance

Affordable configuration meets conventional pipe cutting needs without overinvestment. It reduces procurement threshold and suits small factories and processing workshops well.
Multi-Profile Cutting Ability

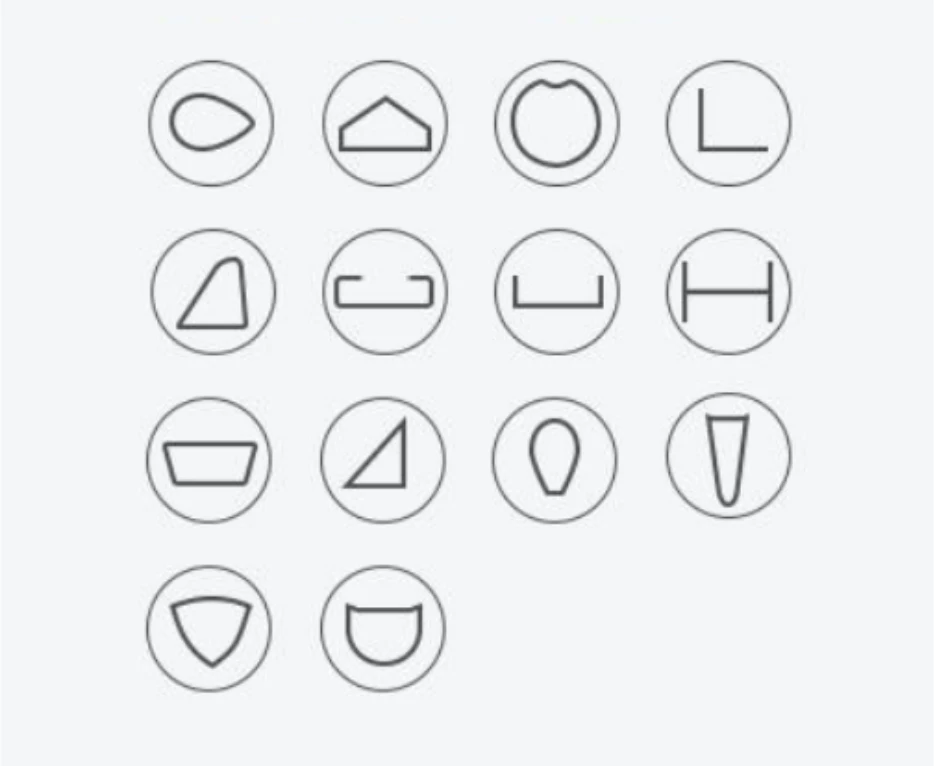

It processes round, square, rectangular and irregular special-shaped metal tubes. One machine fulfills most daily standard pipe processing requirements.
Simple Operation & Maintenance

Humanized control system brings easy learning and quick operation for workers. Modular structure simplifies daily maintenance and lowers downtime loss.
Stable Cutting Quality

Precision mechanical structure and optimized laser output ensure neat cutting edge. It keeps stable dimensional accuracy for long-term repeated processing tasks.
Flexible Batch Adaptation

Perfect for small-batch trial production and medium-volume conventional order processing. It switches freely between different pipe specifications with strong flexibility.
Low Running Expense

Non-contact laser cutting causes no tool wear and saves replacement cost. Stable overall performance keeps failure rate low and reduces long-term operating cost.

TECHNICAL DATA

Technical Specifications

ZG-FC6000-6020GC

PARAMETER	ZG-FC6000-6020GC
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

PARAMETER	ZG-FC-3015/4020/6015
Laser type	Fiber-optic laser
Laser working medium	Erbium-doped fiber
Output Power	1000W-15000W
Power stability	<3%
Minimum line width	≤0.15mm
Laser power stability	0.01
Continuous working time	24 Hours
Optical path system	Optical fiber transmission
Laser wave length	1080nm
Beam quality	2.1~2.7
Repeatability	≤+ 0.02mm/m

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Cost-effective standard laser solution for general industrial pipe processing.

Fitness Equipment Manufacturing

Fitness Frame Pipe Cutting

It cuts various steel pipes for fitness equipment frames and supporting structural parts.
Automotive Exhaust & Chassis

Auto Pipe And Exhaust Parts Processing

It performs precise cutting for conventional chassis and exhaust tubular components.
Steel Structure Construction

Building Support Pipe Fabrication

It meets conventional cutting demands of structural pipes and building supporting parts.

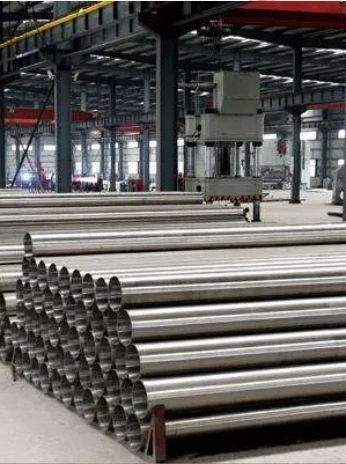

Pipeline & Pipe Fittings

Industrial Pipe Connector Processing

It delivers qualified cutting for common industrial pipes and pipe fitting accessories.

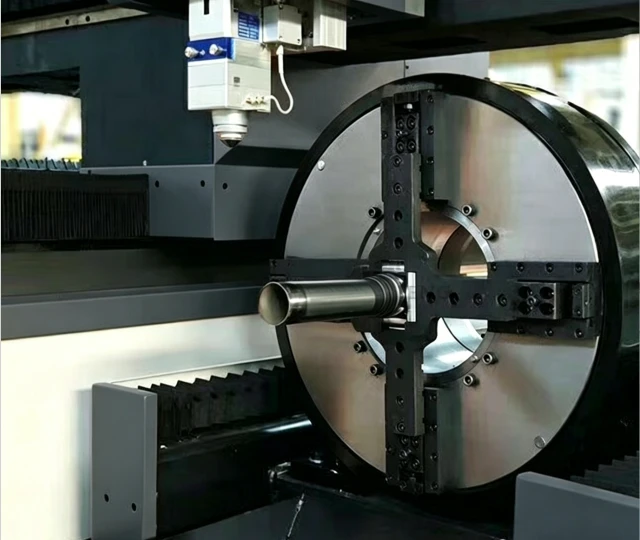

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple laser power options are optional to match different pipe materials and wall thickness. Proper power matching ensures balanced cutting speed and smooth cutting surface quality.

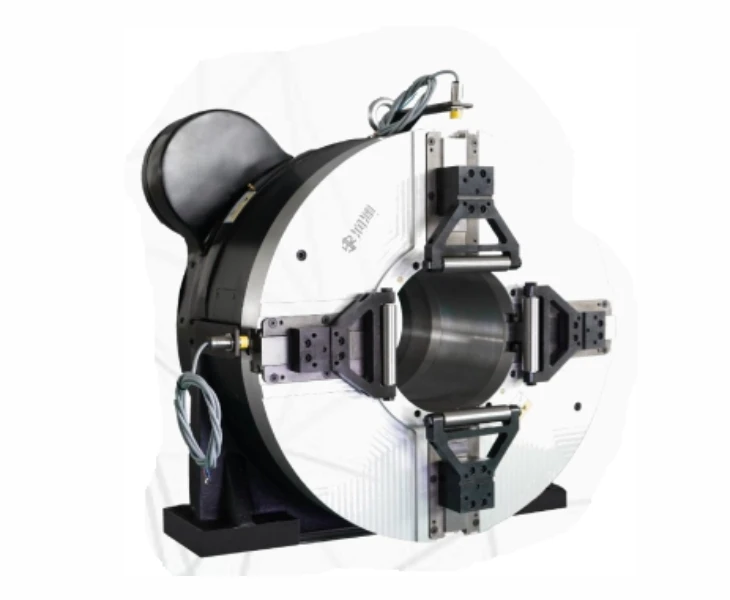

Pipe Fixture Customization

Custom clamping fixtures can be configured for special pipe diameters and irregular profiles. It ensures stable clamping and consistent cutting precision in long-term processing..

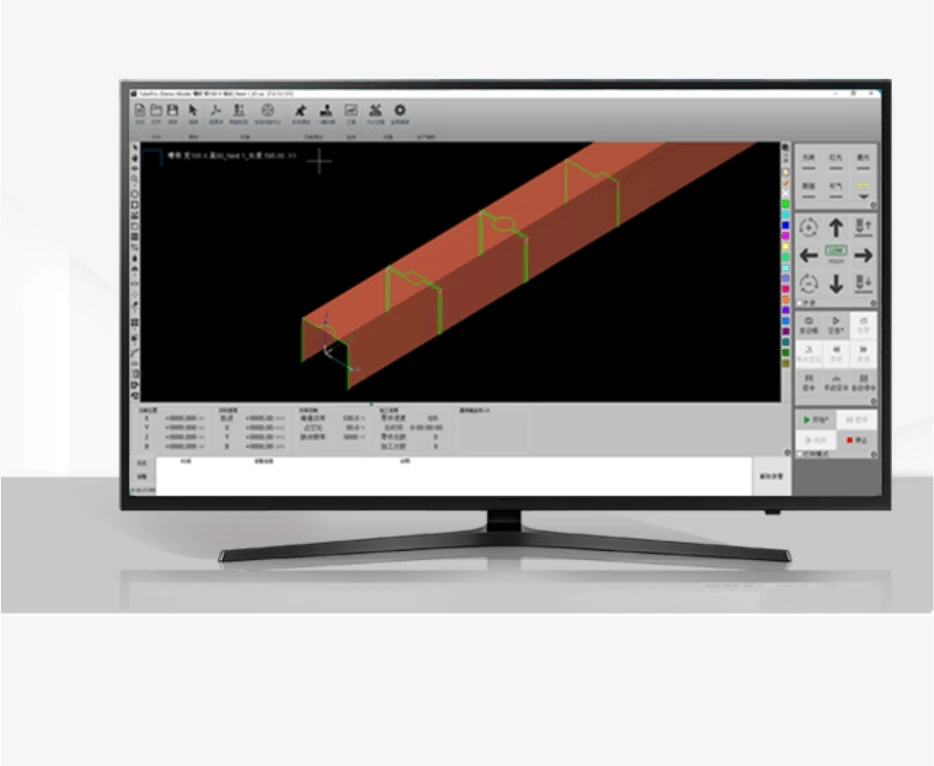

Control System Customization

Optional upgraded control system and cutting software suit personalized processing habits. It optimizes cutting path and improves overall working efficiency for conventional pipe.
