Intelligent Robotic Laser Welding Machine

40+ Years of Innovation

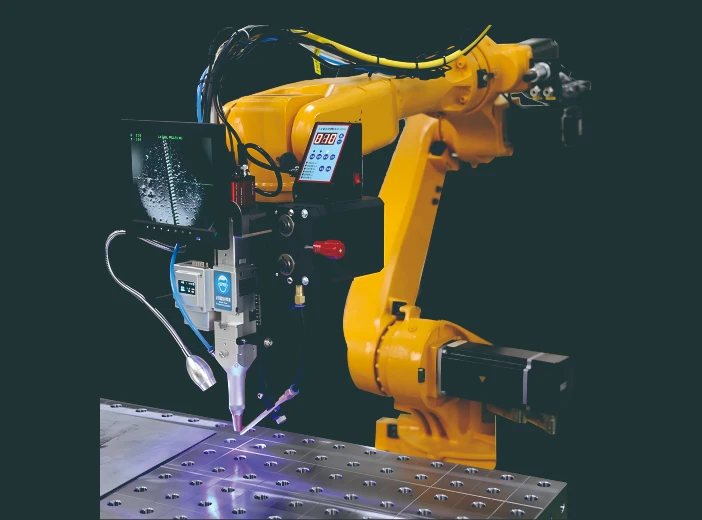

Product Overview

Robotic Laser Welding Machine / Custom Model

This robotic laser welding machine adopts four core advantages of high efficiency, excellent beam quality, flexible fiber output and maintenance-free performance. Equipped with intelligent robotic arm, it delivers high freedom of movement and precise running trajectory to finish continuous automatic welding operation. It shortens welding cycles, boosts production capacity and reduces labor cost. Premium beam quality ensures flat, firm weld joints with low defect rate for precision processing. Flexible fiber design breaks space limits to adapt to special-shaped workpieces and complex working conditions, while maintenance-free structure minimizes maintenance investment and keeps long-term stable automated production.

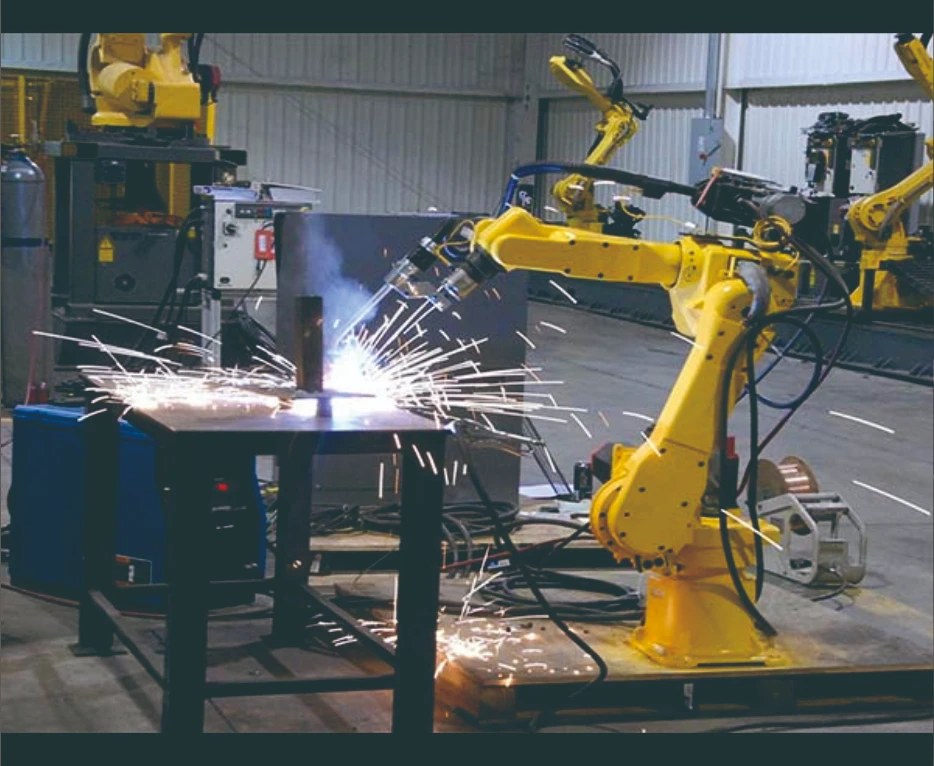

Intelligent Robotic Welding

Automatic precision welding freely.
Superior Welding Performance

High speed with stable weld quality.

Key Advantages

Why choose Robotic Laser Welding Machine?

Excellent Beam Quality

Delivers concentrated laser beam for flat, firm and flawless welding joints. It meets strict precision standards and effectively reduces welding defect rate.
High Electro-optic Conversion Efficiency

High energy conversion rate saves power consumption and lowers daily operating cost. It brings higher output benefit with lower energy investment.
Superior Flexible Light Guiding

Flexible fiber transmission breaks site and angle restrictions. It freely handles three-dimensional, curved and complex special-shaped workpieces.
Ultra-High Welding Speed

Greatly improves welding efficiency and shortens production cycle compared with traditional welding. It supports large-batch production and raises factory overall capacity.
Low Operation & Maintenance Cost

Stable overall structure realizes low daily consumption and long service life. Easy daily operation and simple maintenance save labor and time cost continuously.
High Operational Stability

Mature robotic and laser integrated system ensures long-term continuous stable running. It avoids frequent downtime and guarantees uninterrupted automated production.

TECHNICAL DATA

Technical Specifications

Custom Model

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

Equipment Model	ZG-500F	ZG-1000F	ZG-1500F	ZG-2000F
Polarization	Random	Random	Random	Random
Center wavelength	1080mm	1080mm	1080mm	1080mm
Bandwidth	<6nm	<10nm	<10nm	<10nm
Maximum modulation frequency	10kHz	10kHz	10kHz	10kHz
Average output power	500W±15W	1000W±20W	1500W±20W	2000W±25W
Power adjustment range	10%-100%	10%-100%	10%-100%	10%-100%
Power stability	±2% (>100h)	±2% (>100h)	±2% (>100h)	±2% (>100h)
Beam quality	M²<1.3	M²<1.3	M²<1.3	M²<1.3
Optical output interface	QBH	QBH	QBH	QBH
Maximum power consumption	2000W	3500W	5500W	7500W
Cooling method	Water cooling	Water cooling	Water cooling	Water cooling
Output fiber length	10m or 15m	15m	15m	15m
Input/output interface	DB25/RS232	DB25/RS232	DB25/RS232	DB25/RS232
Operating temperature	0°C-40°C	0°C-40°C	0°C-40°C	0°C-40°C

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Intelligent robotic welding solution for automated industrial manufacturing.

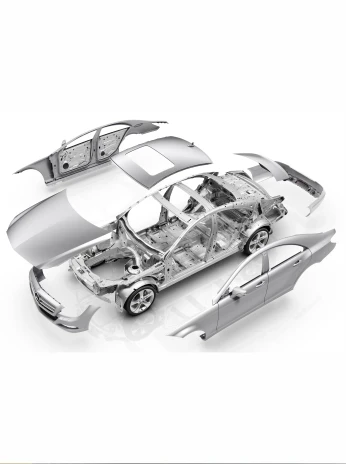

AUTOMOTIVE INDUSTRY

Auto Structural Parts Automatic Welding

Automatic welding for auto parts with low deformation and high weld strength.
NEW ENERGY INDUSTRY

Battery And Energy Storage Precision Welding

Precision welding for new energy and battery components.

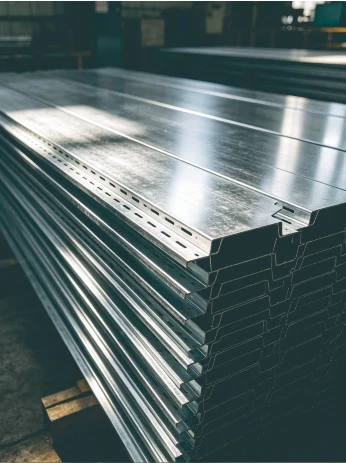

HARDWARE & HOME APPLIANCE INDUSTRY

Hardware & Appliance Batch Welding

Mass welding for hardware and household appliance parts.
CONSTRUCTION MACHINERY INDUSTRY

Engineering Structural Parts Welding

Stable welding for engineering machinery and special-shaped parts.

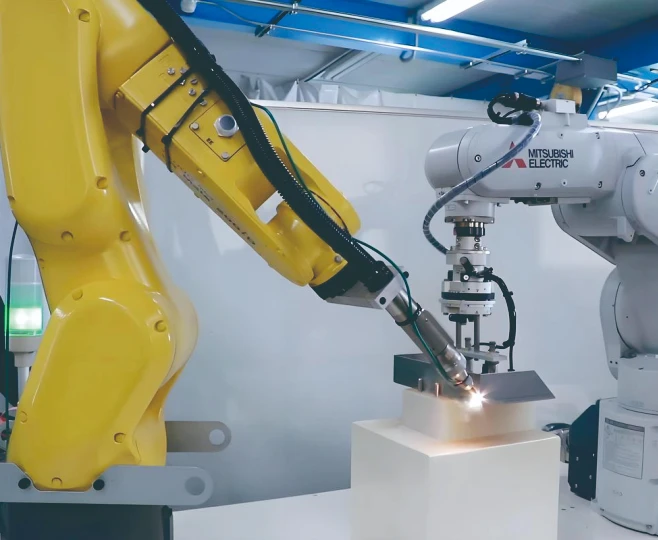

Robotic Laser Welding Machine Customized

Machine Configuration

Customizable to Your Production Needs

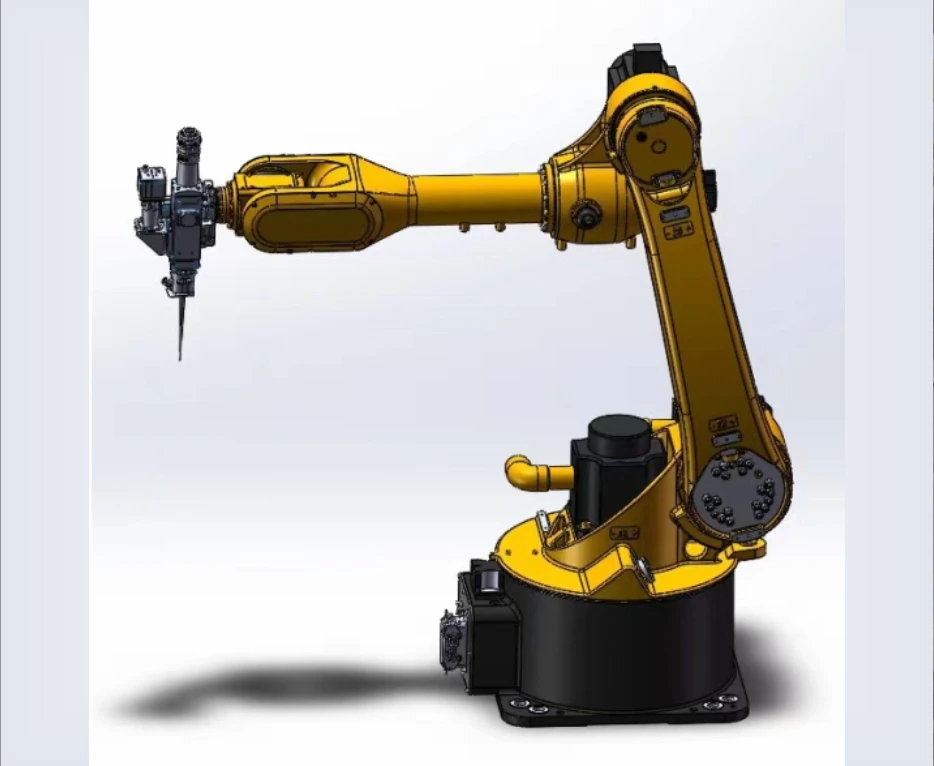

Robot Arm Configuration Customization

Custom robot arm working radius and load capacity for different workpiece sizes. It realizes flexible trajectory planning for large, curved and irregular components.
Welding Process Customization

Support customized welding modes and laser parameters for auto, new energy and hardware industries. Optimized process matches batch production and high-precision welding requirements perfectly.
Production Line Docking Customization

Reserved communication interface supports seamless connection with automatic production lines. It realizes full-process unmanned welding and improves workshop automation level greatly.
