Product Overview

Desktop Laser Marking Machine / Custom Model

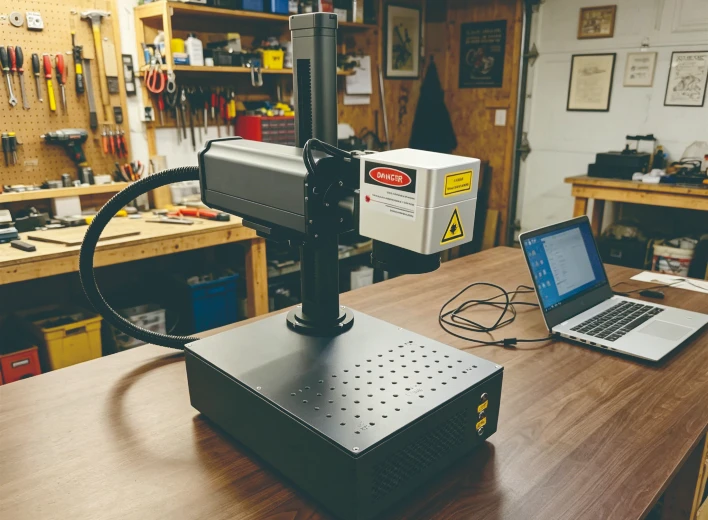

This desktop laser marking machine features an integrated compact desktop structure, covering small floor space with simple installation and flexible placement. Equipped with high-quality fiber laser source, it delivers fine laser beam and ultra-high marking accuracy. It supports permanent marking of texts, patterns, QR codes, serial numbers and logos on various metal and partial non-metal materials. With stable operation, low failure rate and maintenance-free performance, it is widely used for precision engraving and batch marking in various industrial fields.

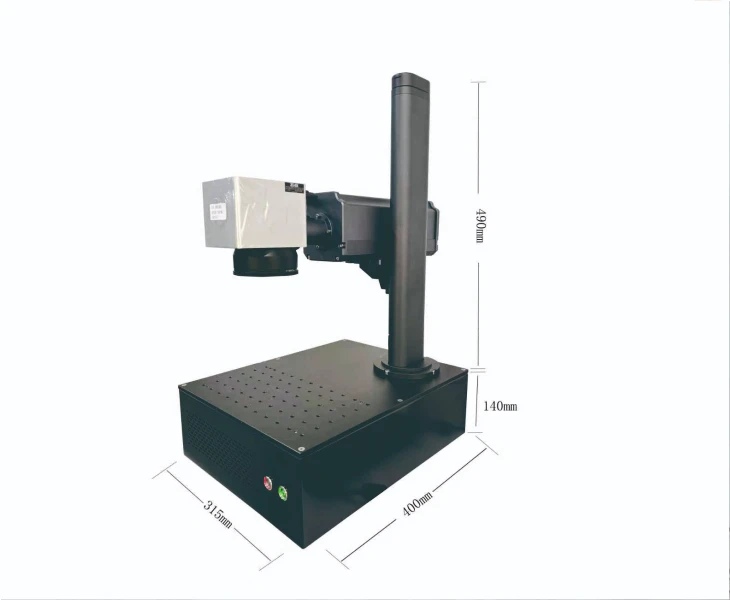

Compact Desktop Structure

Small size with flexible placement.
Ultra-Fine Marking Effect

Permanent and high-precision engraving.

Key Advantages

Why Choose Desktop Laser Marking Machine?

Space-Saving Desktop Design

Integrated all-in-one structure requires no large workshop space. It can be placed indoors or on production stations flexibly, adapting to various working environments.
High-Precision Permanent Marking

Concentrated laser beam achieves ultra-fine engraving with clear lines and strong layering. The marking effect is wear-resistant, non-fading and meets long-term identification requirements.
Wide Material Compatibility

It supports marking on stainless steel, carbon steel, aluminum, copper, alloy and other metals. It also adapts to partial non-metal materials for diversified processing demands.
Stable & Maintenance-Free Operation

Mature fiber laser system ensures long-term stable running. No frequent maintenance is required, effectively reducing daily operation costs.
Easy Operation & High Efficiency

Intelligent control system supports fast pattern editing and one-click marking. It shortens processing time and improves batch production efficiency.
Low Operating Cost

No consumables needed during operation. The equipment features low power consumption and low failure rate, bringing high cost performance for small and medium factories.

TECHNICAL DATA

Technical Specifications

Custom Model

Item	Custom Model
Laser Medium	Ytterbium-doped Fiber
Central Wavelength	1060 -- 1070nm
Laser Output Power	20W/30W/50W/60w
Modulation Frequency	50 KHz - 100 KHz
Scanning Speed	0 - 5000 mm/s
Marking Depth	0.01 - 0.4mm (adjustable by material)
Marking Area	110×110mm
Marking Line Width	0.04 - 0.1mm (adjustable by material)
Minimum Character Size	0.5mm
Cooling Mode	Natural Air Cooling

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Compact precision marking solution for industrial fine engraving.

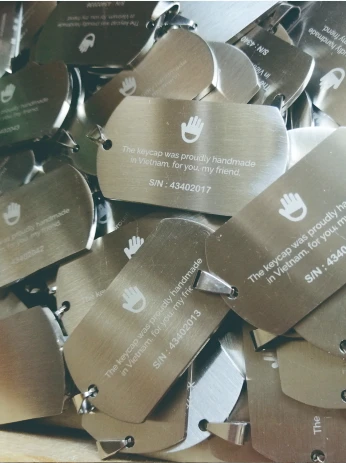

Hardware & Tool Industry

Hardware tool logo marking

Permanent engraving of logos, models and serial numbers on hardware tools and accessories.

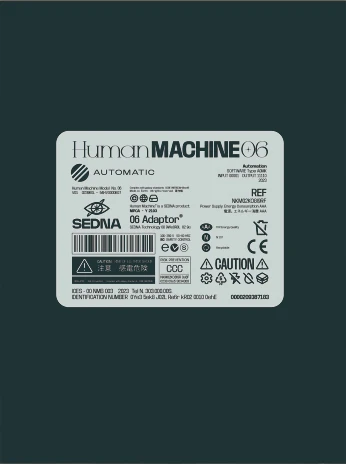

Electronic Components Industry

Precision electronic part marking

Fine marking of QR codes, characters and patterns for small electronic components.

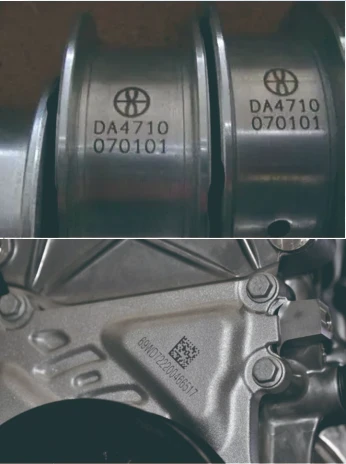

Auto Parts Industry

Automotive accessory engraving

Clear and durable marking for auto parts, fittings and structural components.

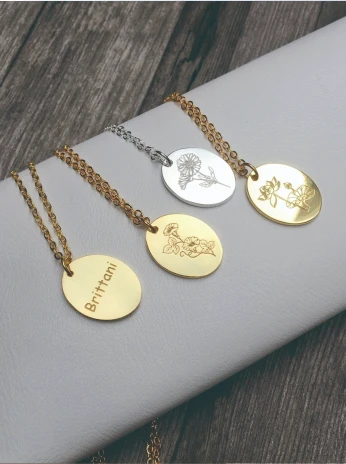

Daily Necessities & Gifts

Custom product engraving

Personalized pattern and text marking for metal crafts and daily products.

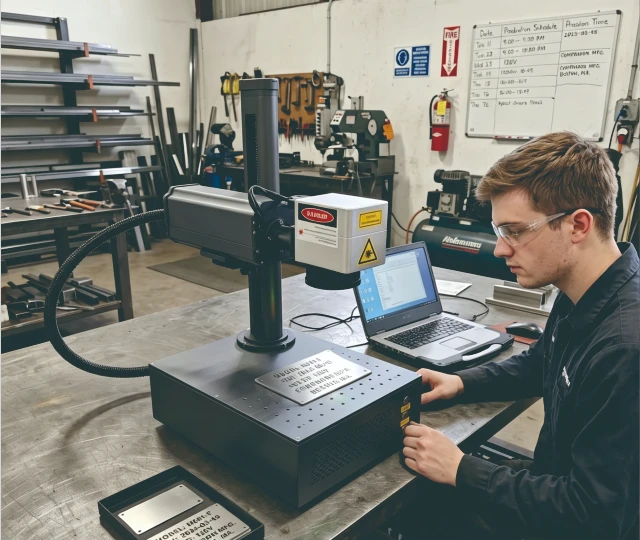

Desktop Laser marking Machine Customized

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Optional 20W/30W/50W laser power for different marking depths and materials. It balances fine shallow marking and deep engraving processing demands.
Working Area Customization

Customize standard and large-format working fields to fit different workpiece sizes. It improves processing flexibility for small parts and medium components.
Function Upgrade Customization

Optional rotary axis and automatic lifting platform for circular and irregular workpieces. It enriches marking functions and expands applicable processing scenarios.
