CO2 Laser Marking Machine

40+ Years of Innovation

Product Overview

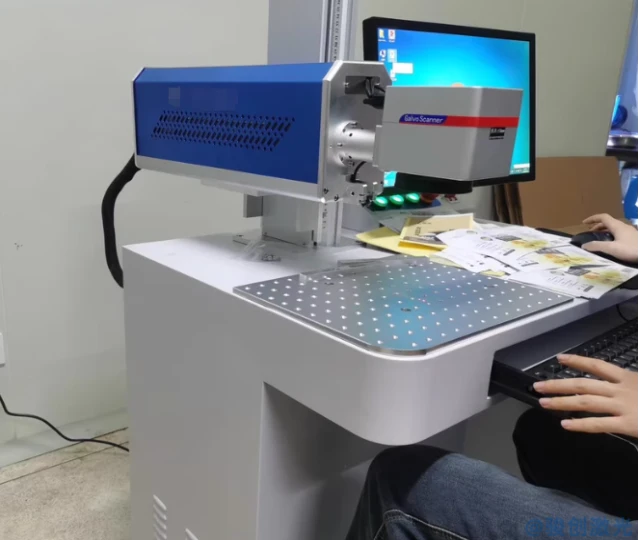

CO2 Laser Marking Machine / Custom Model

This CO2 laser marking machine is equipped with a stable gas laser generator, operating at a 10.6μm wavelength. This wavelength is highly absorbed by organic materials and synthetic polymers. Unlike fiber lasers that pass through or heat-damage non-metals, this system vaporizes the material surface cleanly to produce legible, wear-resistant text, logos, barcodes, and serial numbers. Suitable for wood, acrylic, glass, paper, leather, and various plastics, it serves as a practical, low-maintenance marking solution for industrial production lines.

Wavelength-Specific Absorption

Highly effective energy coupling with non-metal surfaces, reducing thermal distortion and soot formation.
Controlled Depth & Contrast

Flexible adjustment of pulse frequency and speed allows for consistent engraving depth and adjustable carbonization levels.

Key Advantages

Why Choose CO2 Laser Marking Machine?

Highly Efficient 10.6μm Wavelength

Fiber lasers (1.06μm) are largely reflected or transmitted by non-metals. The 10.6μm wavelength of the CO2 laser is absorbed directly by organic molecules, ensuring efficient energy utilization.
Clean Carbonization on Natural Substrates

Creates natural brown-to-black contrast on wood, bamboo, and genuine leather, providing a traditional burnished appearance that cannot be easily replicated by other laser types.
Frosted Effect on Glass & Acrylic

Creates a uniform, micro-cracked frosted look on glassware without structural shattering, and delivers clean, smooth edges on acrylic sheets rather than melted residues.
Coating Stripping Without Substrate Damage

Highly capable of vaporizing paint, anodized layers, or surface coatings on glass or metal substrates without engraving into the underlying metal, as bare metals reflect this wavelength.
Stable RF Metal Tube Option

Available with sealed metal RF laser tubes that offer faster modulation rates, a smaller thermal spot, and a long operational lifespan with gas-refillable designs.
Low-Stress, Non-Contact Processing

The laser beam processes the material without physical contact, ensuring thin substrates—such as packaging films, paper, and textiles—are marked without tearing or tearing-related deformation.

TECHNICAL DATA

Technical Specifications

Custom Model

Parameter	Specification
Laser Type	Sealed CO2 Laser Source
Laser Wavelength	10.6 μm (Standard)
Nominal Power	30W / 60W / 100W / 150W
Marking Area	110mm × 110mm (Standard)
Marking Speed	≤ 7,000 mm/s
Engraving Depth	≤ 3 mm (Material dependent)
Minimum Line Width	≥ 0.12 mm
Minimum Character	≥ 0.4 mm
Repetition Accuracy	±0.003 mm
Cooling Method	Air Cooling
Control Software	EZCAD / LightBurn (Compatible)
Supported Formats	PLT, DXF, DST, BMP, JPG, PNG, AI, etc.
Power Supply	AC 110V / 220V ± 10%, 50Hz / 60Hz
Operating Temperature	15°C – 35°C

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

CO2 laser marking solutions tailored for non-metal product identification, engraving.

Packaging & Food/Beverage Industry

Packaging and label marking

Clear engraving of expiry dates, batch codes, and barcodes on PET bottles, cardboard cartons, and flexible packaging films where fiber lasers fail to mark legibly.

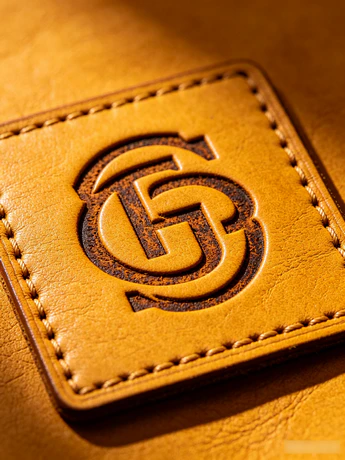

Apparel & Leather Industry

Textile and leather engraving

Detailed pattern marking, distress-effect etching, and brand logo marking on genuine leather, synthetic leather, denim, and various fabrics.
Woodworking & Craft Gift Industry

Wooden and acrylic craft engraving

Clean, deep engravings on bamboo kitchenware, wooden trophies, architectural MDF models, and custom acrylic displays.

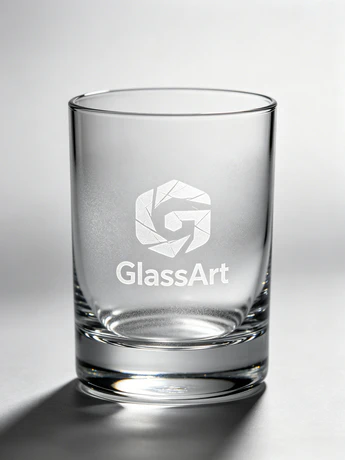

Glassware & Ceramics Industry

Frosted markings on consumer glass

High-contrast, non-contact engraving of logos, scales, and decorative patterns on wine bottles, cosmetic jars, and mirror glass.

Machine Configuration

Customizable to Your Production Needs

Laser Source & Power Customization

30W / 60W / 100W / 150W and higher options. Choice between Metal RF tubes (for high-speed, ultra-fine spot) and Glass DC tubes (for cost-effective deep engraving). Reasonable power configurations help balance processing speed with engraving depth.
Working Field Customization

Standard and expanded marking areas (from 110mm × 110mm to 300mm × 300mm or larger) to match various workpiece dimensions and batch sizes.
Accessory Function Customization

Optional rotary fixtures for cylindrical glassware, conveyor belts for online flying marking (on-the-fly), and specialized fume extraction systems to manage dust and odors from organic processing.
