Laser Chiller Troubleshooting: Diagnosing & Fixing Common Alarms

1. Introduction

Industrial laser chillers are equipped with automated diagnostic interlocks designed to protect sensitive optical components. When a safety threshold is breached, the chiller triggers a visual/audible alarm and opens a relay circuit to shut off the laser beam.

Proper laser chiller troubleshooting requires a systematic approach to identify whether the fault originates from fluid restriction, thermal overload, or mechanical failure. This protocol forms a core pillar of our master laser cooling system maintenance guide.

2. Resolving Low Water Flow Alarms (Flow Alarms)Introduction

A water flow alarm (often displayed as E02 or E04) indicates that coolant circulation through the laser source has dropped below safe operational thresholds. Operating an industrial laser cutting machine without sufficient cooling flow will burn out laser diodes or melt fiber delivery cables within seconds.

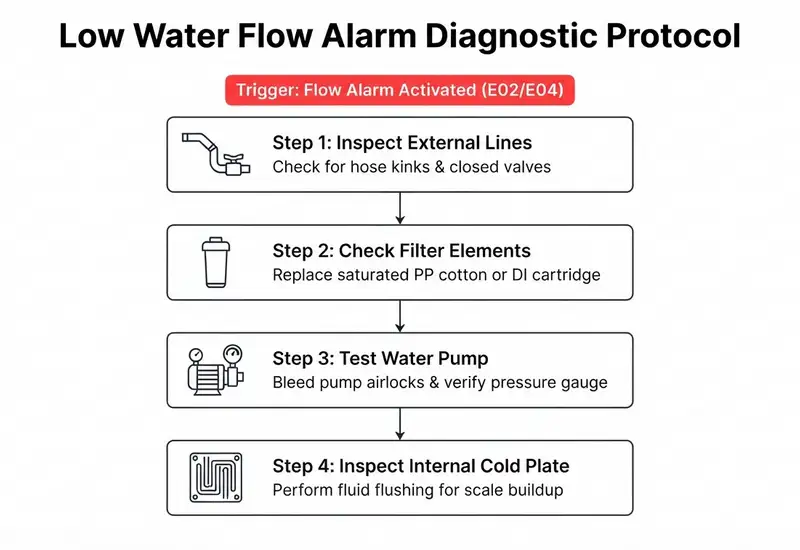

Diagnostic & Corrective Steps:

1. Check External Hoses: Inspect all external polyurethane lines connecting the chiller to the processing machine for kinks, tight bends, or closed isolation valves.
2. Inspect Filter Elements: A saturated 5-micron cotton filter or Deionization cartridge creates high differential pressure. Replace blocked filter elements per our laser chiller component maintenance SOP.
3. Verify Pump Cavitation: Air bubbles trapped in the pump casing reduce flow velocity. Bleed air from the pump exhaust valve until a steady stream of fluid emerges.
4. Check Internal Scale: If external lines are clear, mineral scale may be restricting the cold plate channels. Execute a comprehensive laser cooling water flushing SOP.

3. Fixing High Water Temperature Alarms (E01 Faults)

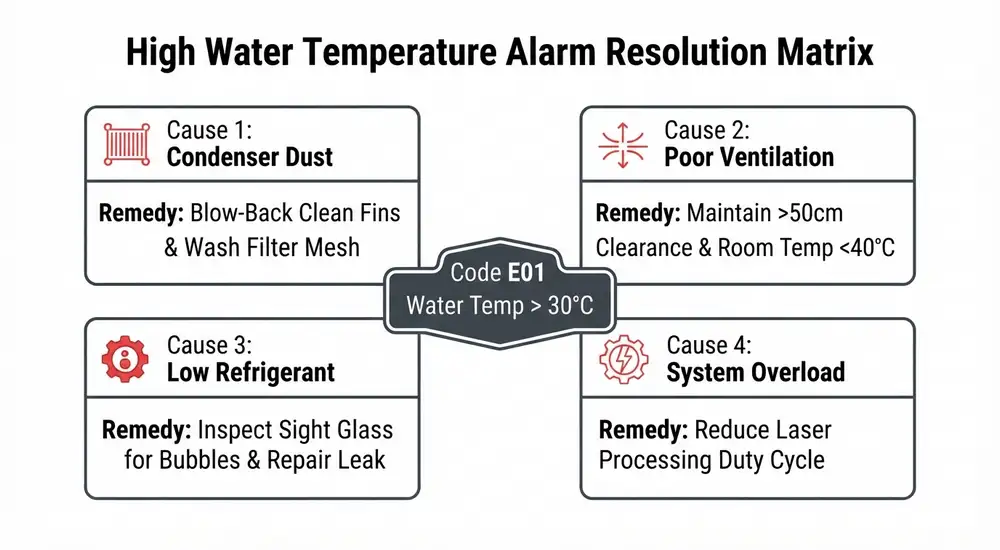

High temperature alarms occur when the coolant supply temperature exceeds the pre-programmed safety limit (typically 30$℃$ to 35$℃$). Uncontrolled temperature spikes on a high-duty-cycle laser welding machine lead to thermal expansion of internal optics and rapid beam drift.

Root Causes & Remedies:

• Condenser Coil Dust Clogging: Accumulated dust prevents forced-air heat exchange. Clean the condenser mesh and fins immediately.
• Insufficient Room Ventilation: Ensure at least 50 cm of clearance around the chiller air intake and exhaust vents. Room ambient temperatures must remain below 40$℃$.
• Low Refrigerant Charge: Inspect the sight glass on the refrigeration line. Bubbles or low static pressure indicate a Freon leak that requires certified HVAC repair.

4. Overcoming Compressor High-Pressure Alarms (E03 / HP Warnings)

High-pressure alarms trigger when the compressor discharge pressure exceeds safe mechanical thresholds. This protection circuit prevents compressor motor burnout.

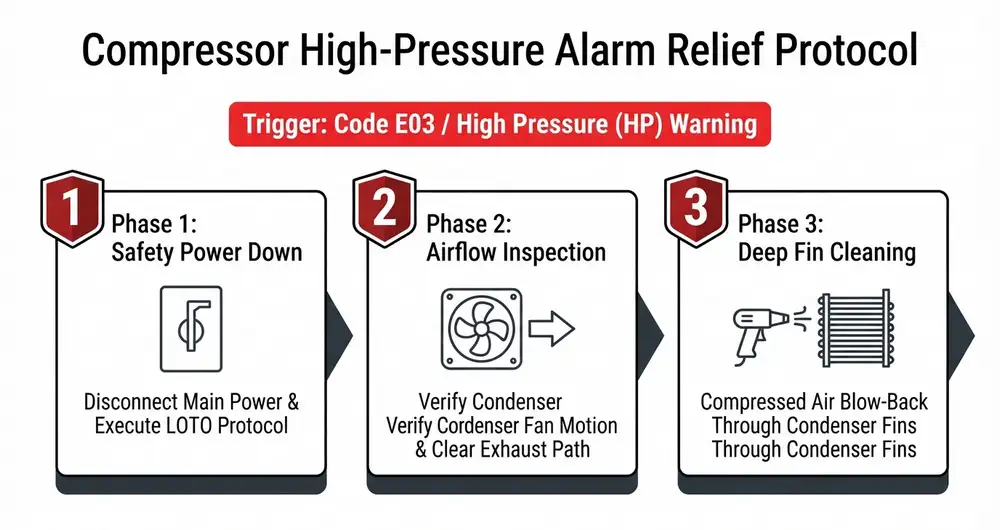

Corrective Protocol:

1. Power Down: Shut down the chiller and disconnect main power.
2. Inspect Airflow: Verify that the condenser fan is spinning freely and not slipping on its motor shaft.
3. Clean Heat Exchanger: Use dry compressed air (0.2–0.3 MPa) to blow dust from the inside of the condenser fins outward.

5. Universal Chiller Error Code Quick Reference

While code designations vary slightly between manufacturers, the table below provides standard diagnostic mappings:

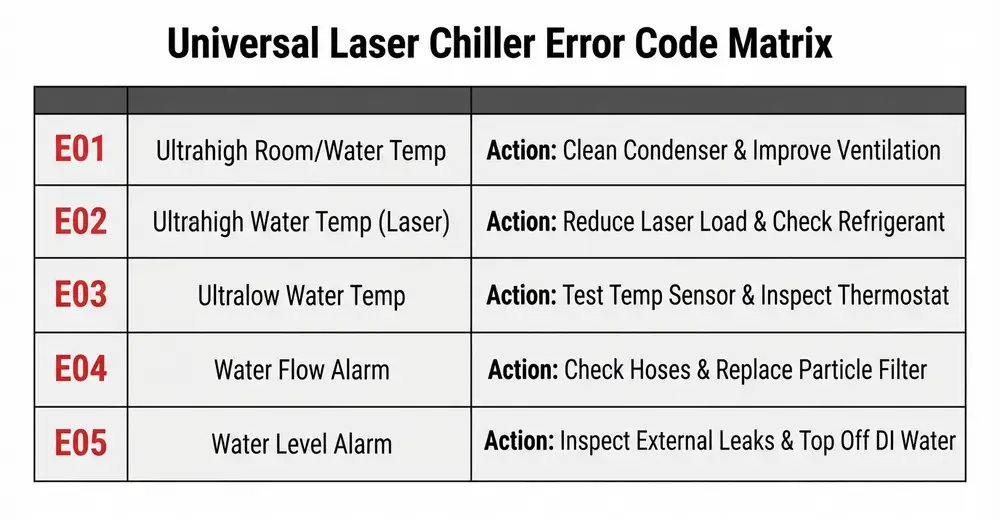

Error Code	Fault Description	Primary Cause	Immediate Remediation
E01	Ultrahigh Room / Water Temp	Excessive ambient heat; clogged condenser	Improve room ventilation; clean condenser fins.
E02	Ultrahigh Water Temp (Laser Loop)	Thermal overload; undersized chiller	Reduce laser output power; inspect refrigerant.
E03	Ultralow Water Temp	Temp sensor fault; bypass valve stuck open	Inspect temperature sensor probe and thermostat settings.
E04	Water Flow Alarm	Line blockage; pump failure; dirty filter	Check hoses for kinks; replace particle filter element.
E05	Water Level Alarm	Fluid evaporation; external line leak	Inspect water lines for leaks; top off with DI water.

6. Self-Fix vs. Technician Escalation

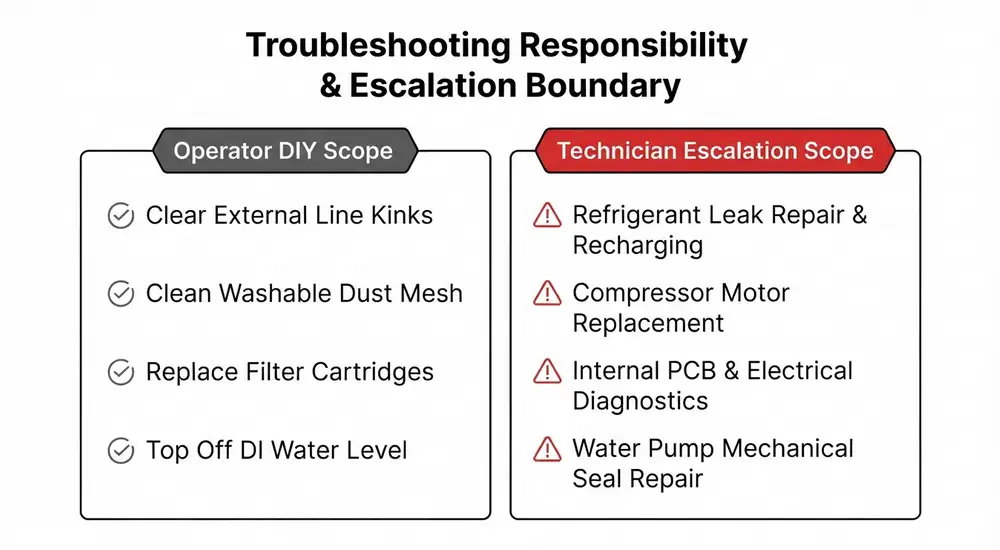

Operators can independently clear 80% of chiller alarms by cleaning filters, clearing hose kinks, and restoring water levels. However, internal refrigeration repair (compressor replacement, capillary tube unblocking, refrigerant recharging) or internal PCB electrical diagnostics require certified service engineers.

FAQs

Q1: Why does my laser chiller alarm trigger immediately upon starting the machine?
Immediate flow alarms upon startup usually indicate an airlock inside the water pump or a closed line valve. Bleed the air valve on the pump head to restore prime.

Q2: Can I bypass the water flow alarm circuit temporarily to finish a job?
Never bypass a flow alarm. Operating a laser source without verified coolant flow can destroy optics or diode modules within seconds, leading to catastrophic failure.

Q3: What causes a chiller to display a low-temperature alarm in winter?
If the chiller is located in an unheated shop, low ambient overnight temperatures can drop the water temperature below 15$℃$. Install a chiller heater kit or keep ambient room temperatures controlled.

Q4: How do I know if my water pump is failing or just clogged?

Check the pressure gauge at the chiller discharge outlet. High pressure with low flow indicates a line restriction/clog. Low pressure with low flow indicates pump impeller wear or air cavitation.

Q4: Why does my chiller high-pressure alarm trip only during hot afternoons?This indicates marginal heat dissipation capacity. High ambient summer heat combined with dust-blanketed condenser coils pushes compressor head pressures beyond safe operating limits.
