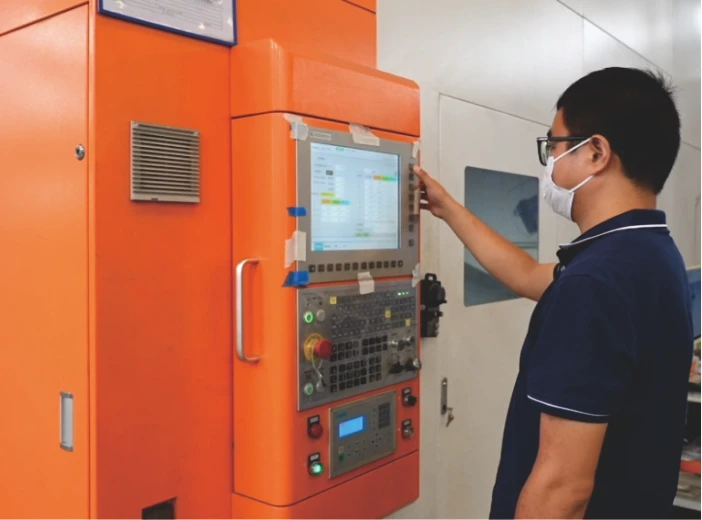

industrial high precision 3d 5-axis co2 laser system

40+ Years of Innovation

Product Overview

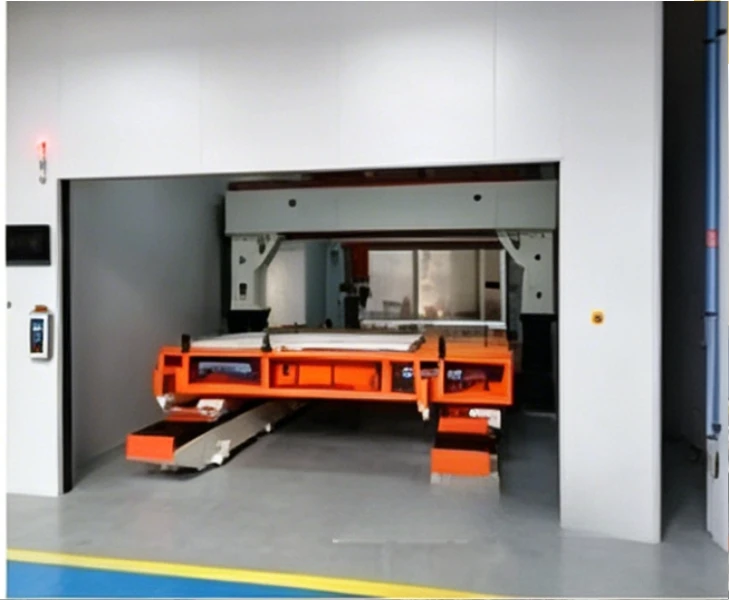

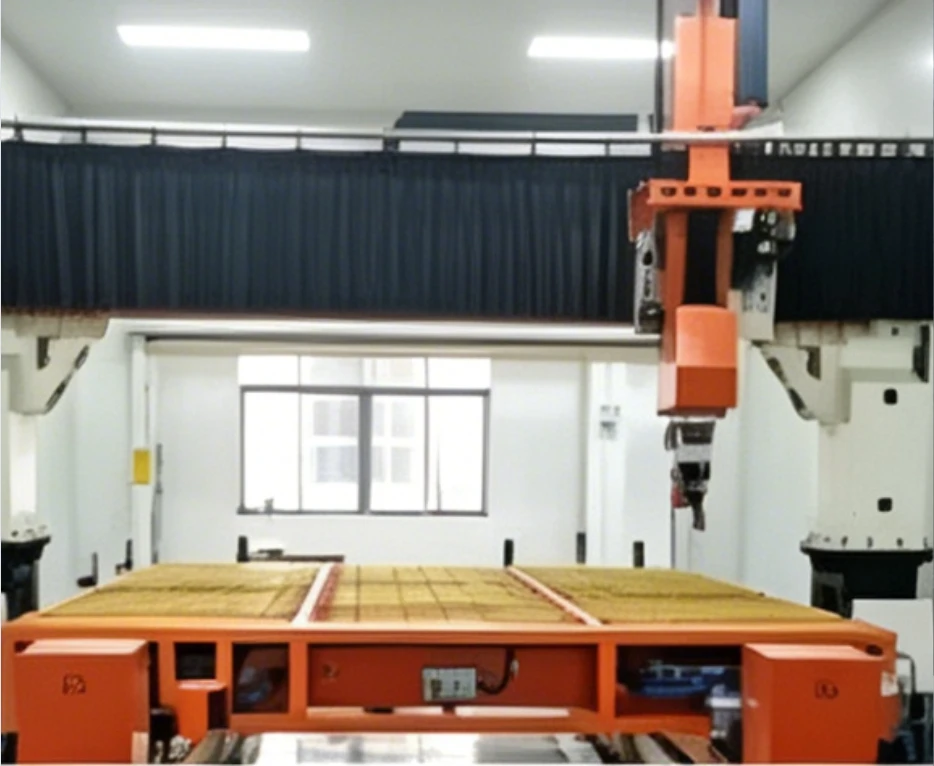

CO2 3D Five-Axis Laser Cutting Machine / ZGC7030DFI-20

This CO2 3D five-axis laser cutting machine is professionally designed for non-metallic material processing. It achieves precise 3D profiling and cutting for acrylic, wood, bamboo, leather, textile, plastic, rubber and crystal materials. The upgraded high-power version supports both non-metal and metal cutting, greatly expanding processing applicability. It is widely applicable for advertising, furniture, garment and plastic product manufacturing, ideal for customized and small-batch 3D processing.

Non-Metal Professional Cutting

Perfect finish for diverse non-metallic materials.
Dual Material Compatibility

High power cuts non-metal and metal.

Key Advantages

Why choose CO2 3D Five-Axis Laser Cutting Machine?

This series integrates superior performance, stable operation and cost advantages to empower your industrial cutting production.

Professional CO2 Laser Technology

Adopts dedicated CO2 laser source optimized for non-metallic material processing. It delivers smooth cutting edges without burrs and ensures exquisite processing effects.
Wide Non-Material Adaptability

Compatible with wood, leather, acrylic, textile, rubber and various craft materials. It meets diverse cutting demands of decoration, advertising and garment industries.
Upgradable Dual-Purpose Cutting

High-power optional configuration supports both non-metal and metal processing. It realizes one machine for multiple uses and improves equipment utilization rate greatly.
Precise 3D Profiling Capacity

Five-axis linkage system enables flexible 3D contour cutting and special-shaped profiling. It handles complex curved workpieces that traditional flat cutting cannot complete.
Superior Cutting Finish

Thermal processing with stable laser output ensures clean and smooth cutting surface. It requires no secondary polishing and saves post-processing time and cost.
Cost-Effective Multi-Scenario Use

It covers advertising, furniture, footwear and plastic production demands. It perfectly fits customized processing, prototype making and small-batch mass production.

TECHNICAL DATA

Technical Specifications

ZGC7030DFI-20

Item	PARAMETER
X/Y/Z-axis Travel	4000X3500X700mm
A-axis Travel	±95°
C-axis Travel	±220°
U-axis Travel (Floating Axis)	0-8mm
Max. Speed of X/Y/Z-axis	50m/min
Max. Speed of A/C-axis	360°/s
Machining Accuracy of X/Y/Z-axis	±0.05mm
Machining Accuracy of A/C-axis	0.015°
Repeat Positioning Accuracy of X/Y/Z-axis	±0.04mm
Repeat Positioning Accuracy of A/C-axis	0.015°
Laser Power	2000W

PARAMETER	ZG-T6020	ZG-T9025	ZG-T12035
Laser Power	1.5 – 4 kW	2 – 6 kW	3 – 6 kW
Max Tube Length	6,000 mm	9,000 mm	12,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm	Ø20 – Ø250 mm	Ø20 – Ø350 mm
Max Square Tube Size	150 × 150 mm	200 × 200 mm	250 × 250 mm
Positioning Accuracy	±0.03 mm	±0.03 mm	±0.03 mm
Repeat Accuracy	±0.02 mm	±0.02 mm	±0.02 mm
Max Cutting Speed	100 m/min	120 m/min	120 m/min
Rapid Traverse Speed	80 m/min	100 m/min	100 m/min
Chuck Type	Pneumatic 3+3	Pneumatic 4-chuck	Pneumatic 4-chuck
Max Tube Weight	80 kg/m	120 kg/m	150 kg/m
CNC System	ZG TubePro™	ZG TubePro™	ZG TubePro™
Total Power	15 kW	22 kW	30 kW
Machine Weight	4,500 kg	6,200 kg	8,800 kg

PARAMETER	ZG-T6020
Laser Power	1.5 – 4 kW
Max Tube Length	6,000 mm
Max Round Tube Diameter	Ø20 – Ø200 mm
Max Square Tube Size	150 × 150 mm
Positioning Accuracy	±0.03 mm
Repeat Accuracy	±0.02 mm
Max Cutting Speed	100 m/min
Rapid Traverse Speed	80 m/min
Chuck Type	Pneumatic 3+3
Max Tube Weight	80 kg/m
CNC System	ZG TubePro™
Total Power	15 kW
Machine Weight	4,500 kg

* Specifications may vary based on configuration. Contact our engineers for a customized solution tailored to your requirements.

APPLICATIONS

Main Application Industries

Versatile 3D cutting solution for non-metallic industrial and craft manufacturing.

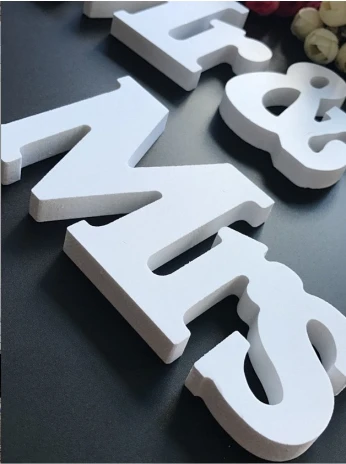

Advertising & Sign Industry

3D advertising sign precision cutting

It provides high-precision cutting for acrylic, plastic and various 3D advertising signage products.

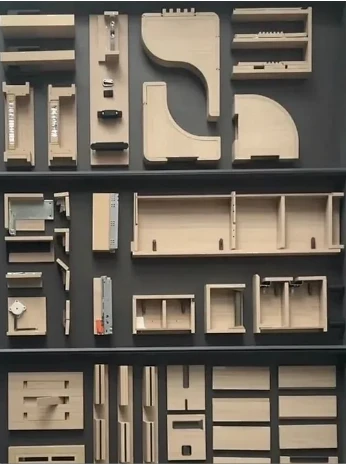

Furniture & Woodworking Industry

Wood and decorative panel profiling

It realizes precise profiling cutting for wood, bamboo boards and furniture decorative components.

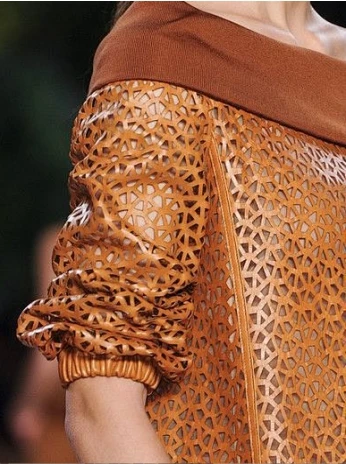

Footwear & Garment Industry

Leather and textile 3D cutting

It delivers flexible and clean 3D cutting for leather, shoe materials and garment textile accessories.

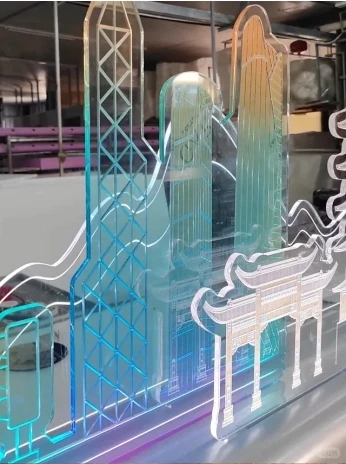

Plastic & Rubber Products Industry

Polymer material precision processing

It perfectly processes plastic, rubber and polymer parts with smooth and flawless cutting quality.

Customized CO2 3D 5-Axis Laser Cutting Machine

Machine Configuration

Customizable to Your Production Needs

Laser Power Customization

Multiple CO2 laser power options are available for different non-metal materials and cutting thicknesses. High-power upgrade supports dual metal and non-metal processing to expand application scope.
Working Table Customization

Customizable worktable size adapts to different workpiece dimensions and production site conditions. It matches small craft parts and large decorative component processing demands flexibly.
Processing Function Customization

We can upgrade 3D cutting precision and add dedicated craft cutting modes for special materials. Optimized parameter packages ensure better finish for leather, wood and acrylic products.
